Solution:
Basic course G3/Upgrade course

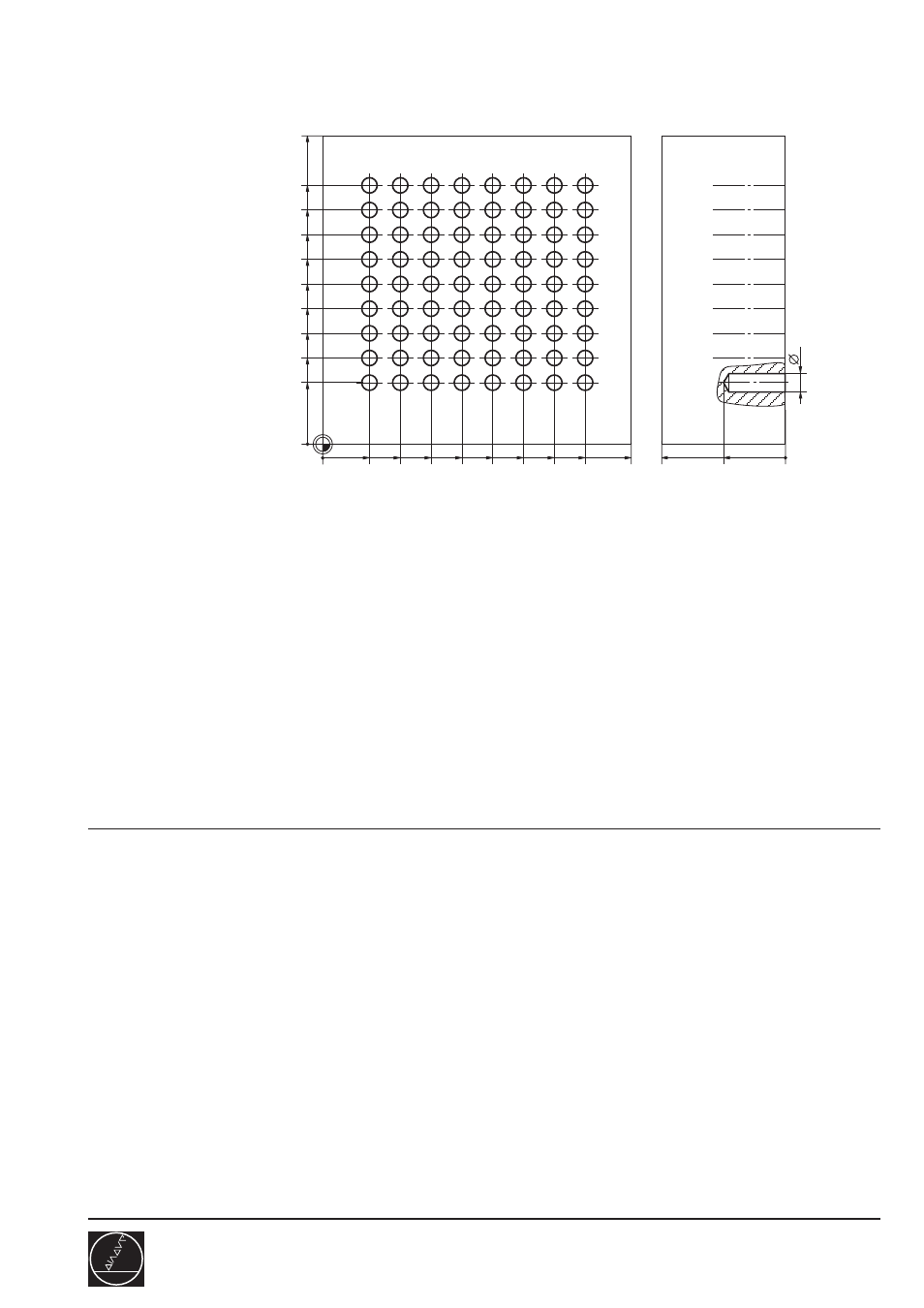

Linear hole pattern
220/2
D02
0 BEGIN PGM 220 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 6 Z S1500 ............................................. R3
4 L Z+100 R0 F9999 M3
5 CYCL DEF 200 DRILLING
Q200=2 ..................................................................... SET UP CLEARANCE
Q201=-20 .................................................................. DEPTH
Q206=100 ................................................................. FEED RATE FOR PLUNGING
Q202=5 ..................................................................... PLUNGING DEPTH
Q210=0 ..................................................................... DWELL TIME AT TOP
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=2 ..................................................................... 2ND SET UP CLEARANCE
6 CALL LBL 1
7 L Z+100 M2
8 LBL 1
9 CYCL DEF 221 CARTESIAN PATTRN
Q225=+15 ................................................................. STARTNG PNT 1ST AXIS
Q226=+20 ................................................................. STARTNG PNT 2ST AXIS
Q237=+10 ................................................................. SPACING IN 1ST AXIS
Q238=+8 ................................................................... SPACING IN 2ND AXIS
Q242=8 ..................................................................... NUMBER OF COLUMNS
Q243=9 ..................................................................... NUMBER OF ROWS
Q224=+0 ................................................................... ANGLE OF ROTATION
Q200=2 ..................................................................... SET UP CLEARANCE
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=2 ..................................................................... 2ND SET UP CLEARANCE
10 LBL 0
11 END PGM 220 MM
Main program
SPGM
Retract tool, end
100
40
0
100
0
0
20
20 25 35 45 55 65 75 85
6
15
28
36
44
52
60
68
76
84
