Solution:
Basic course G3/Upgrade course
Die I
265/2
D02

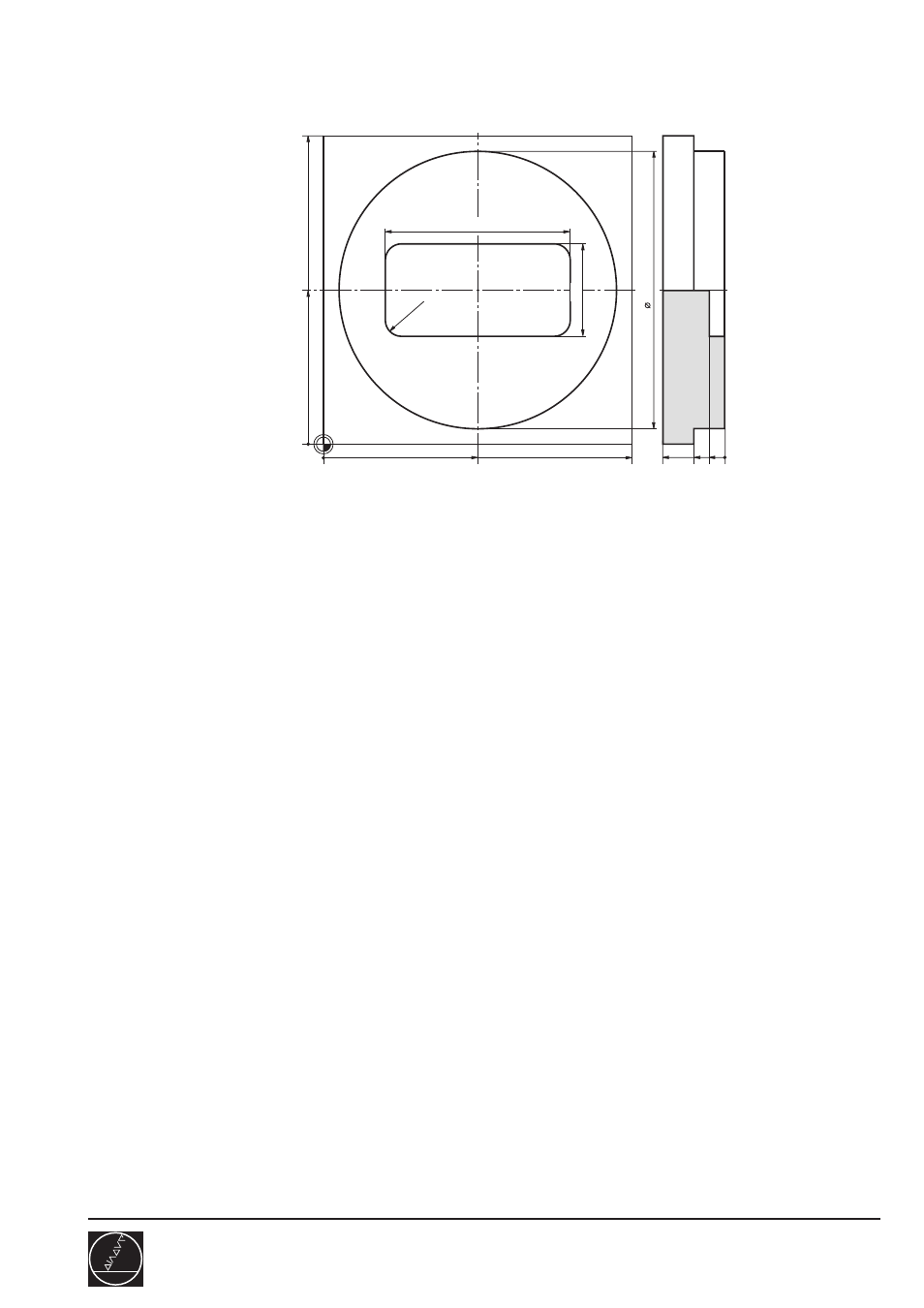

Complete program
100
100
0
50
0
50
20
0
R5,25
10
60
30 90
H7
5
0 BEGIN PGM 265 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 9 Z S500 DR+1 ..................................... R6
4 L Z+100 R0 F9999
5 CC X+50 Y+50
6 LP PR+70 PA+0
7 L Z+2 M3
8 L Z-10 F200
9 CP PA+360 DR-
10 LP PR+60
11 CP PA+360 DR-
12 LP PR+45 RL
13 CP PA+360 DR-
14 LP PR+65 PA+0 R0
15 L Z+2
16 CYCL DEF 4.0 POCKET MILLING
17 CYCL DEF 4.1 SET UP 2
18 CYCL DEF 4.2 DEPTH -5
19 CYCL DEF 4.3 PECKG 5 F100
20 CYCL DEF 4.4 X60
21 CYCL DEF 4.5 Y30
22 CYCL DEF 4.6 F250 DR- RADIUS 7
23 L X+50 Y+50 R0 F MAX M99
24 L Z+100 F MAX M6
