5 User Interface
The user interface permits quick access to all crucial information on the system and its devices.

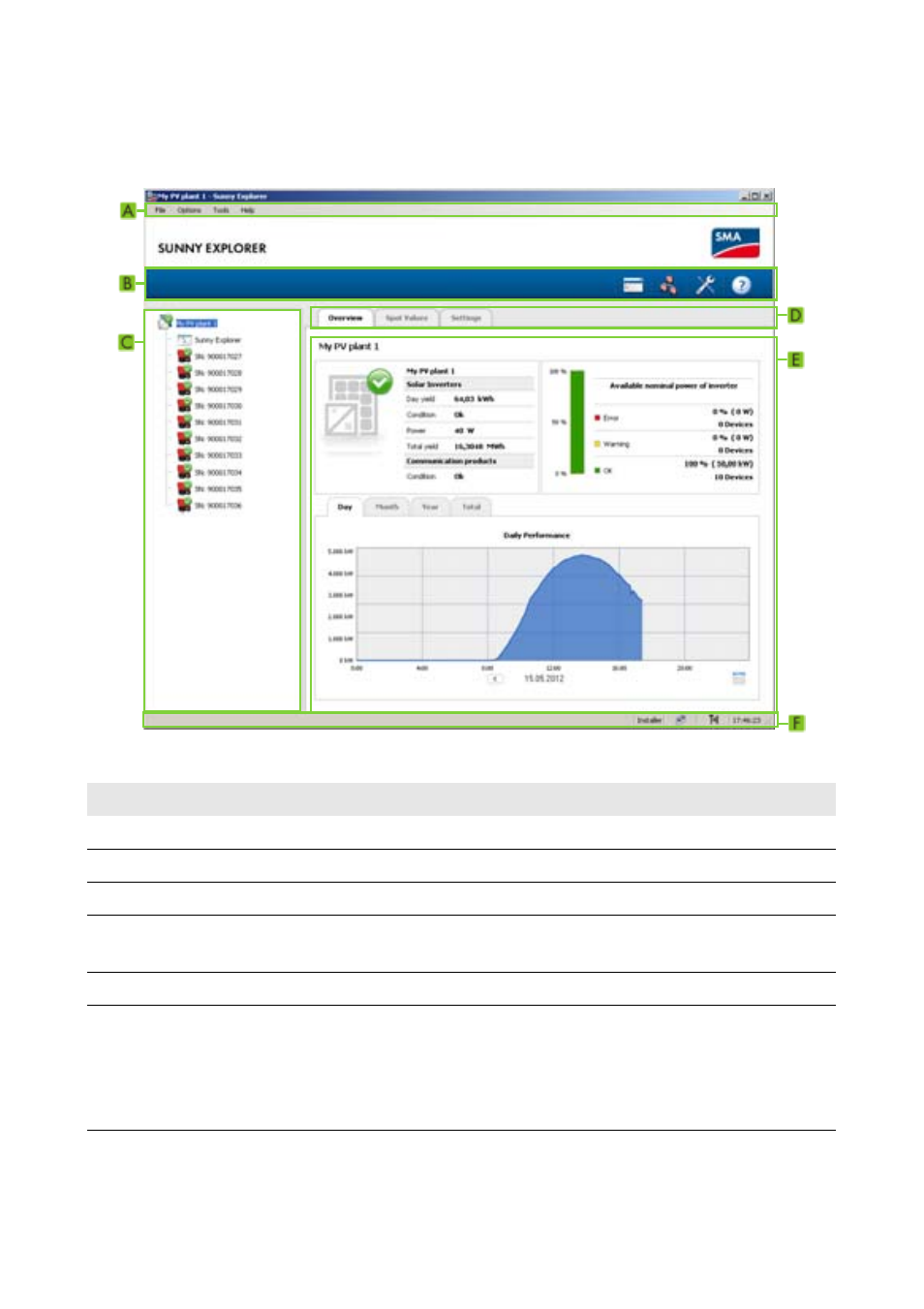

Figure 1: User interface of Sunny Explorer (example)
Item Designation Explanation
A Menu bar Enables access to the basic functions of Sunny Explorer
B Icon bar Enables quick access to the main functions of Sunny Explorer
C System tree Depicts all devices of the system in a tree structure
D Device menu Enables access to information and configuration of the devices
selected in the system tree
E Content area Displays the content of the selected tab in the device menu (D)
F Status bar Displays the following information:
• User group
• Connection status to the system
• System time
