6 Basic Functions SMA Solar Technology AG
38 Explorer-BA-en-17 User Manual
6.9 Network Topology
The network topology in Sunny Explorer is a schematic overview of the SMA Bluetooth devices and
the connections within the system. In the event of connection problems, you can use the network
topology to display and check the connection quality of each connection. Poor connection quality can
be improved by changing the location of individual devices or by using repeaters.
The network topology can only be displayed for Bluetooth systems with a minimum of two
SMA Bluetooth devices and Sunny Explorer.
Procedure:
• To open the network topology of the Bluetooth system, select in the icon bar.
☑ The Bluetooth network topology opens.

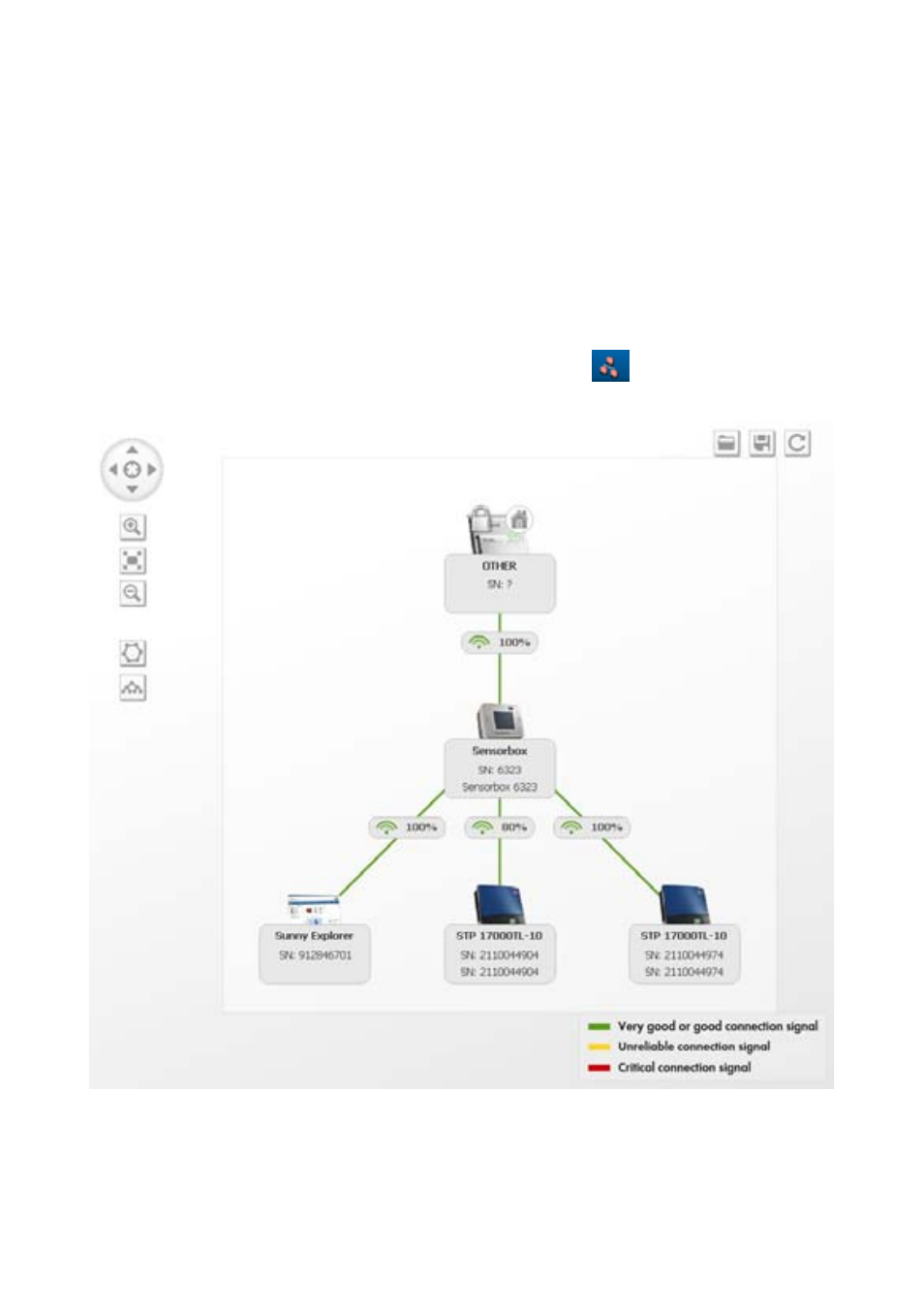

Figure 6: Bluetooth network topology (example)
