5 Installation Procedure
24 YASKAWA ELECTRIC TOBP C730600 58B 1000-Series Option SI-EN3 Installation Manual
7.
Replace and secure the front covers of the drive (C, F) and replace the digital
operator (D).

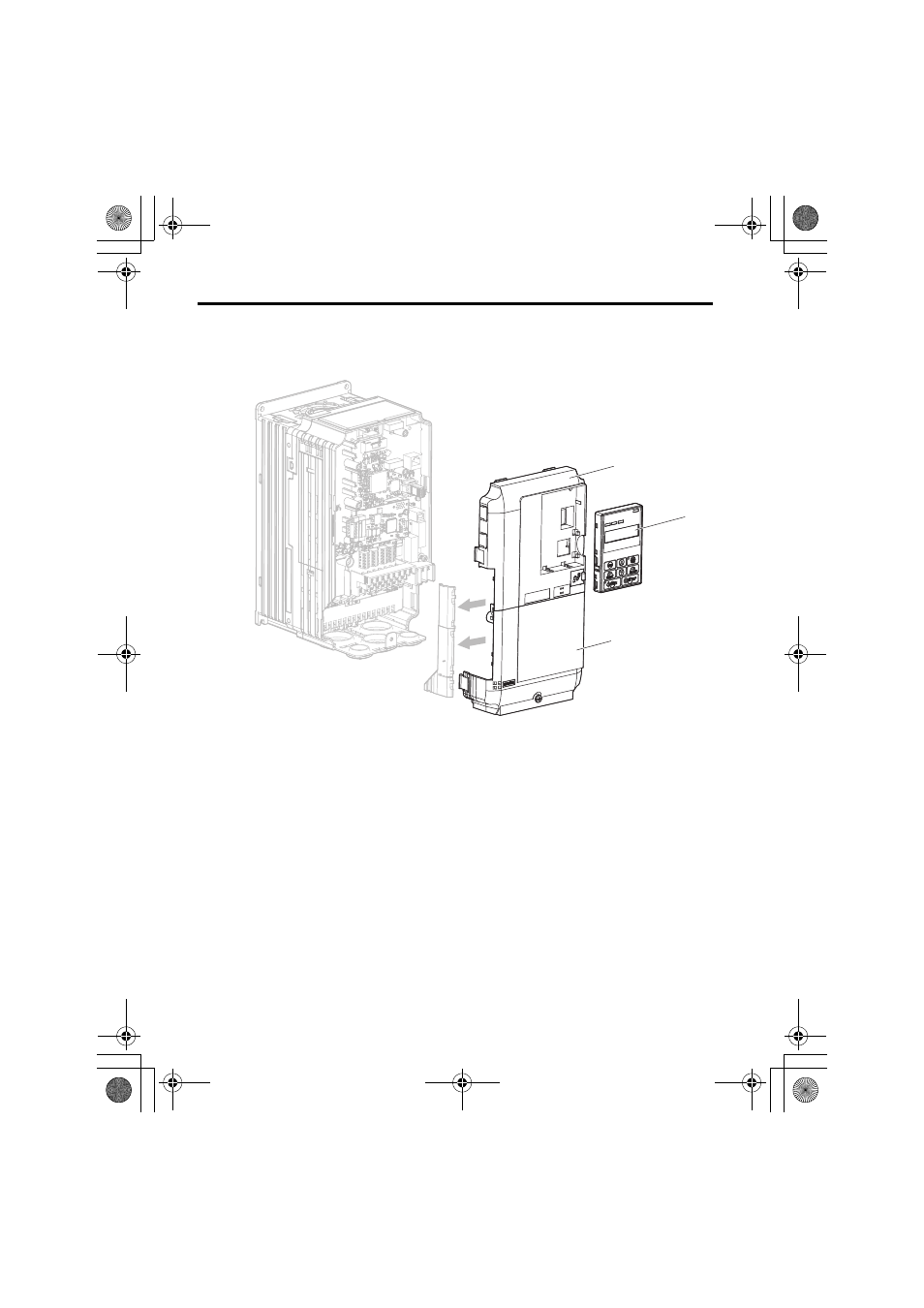

Figure 8
Figure 9 Replace the Front Covers and Digital Operator
Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto
the drive. Make sure no cables are pinched between the front covers and the drive when
replacing the covers.
8.
Set drive parameters in Table 6 for proper option performance.
