LEC-2010 Fanless Embedded System User’s Manual
14
2.2 LEB-2010 System Board
LEB-2010 is the system board bundled with the LEC-2010 Fanless Embedded System
platform. The succeeding sections list LEB-2010 related jumper settings and connector pin
assignments.

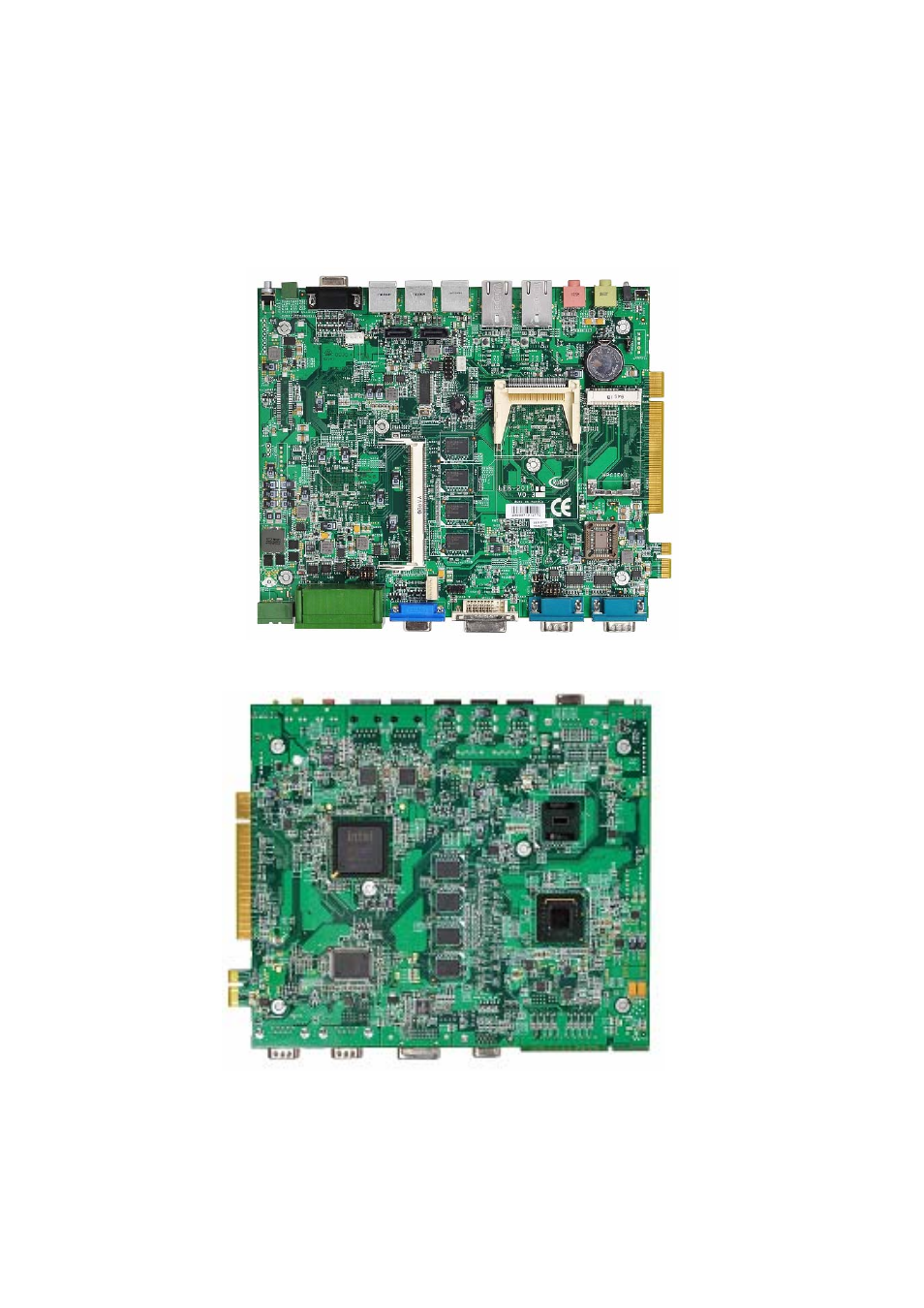

Figure 6 – LEB-2010 System Board
