LEC-2010 Fanless Embedded System User’s Manual

29

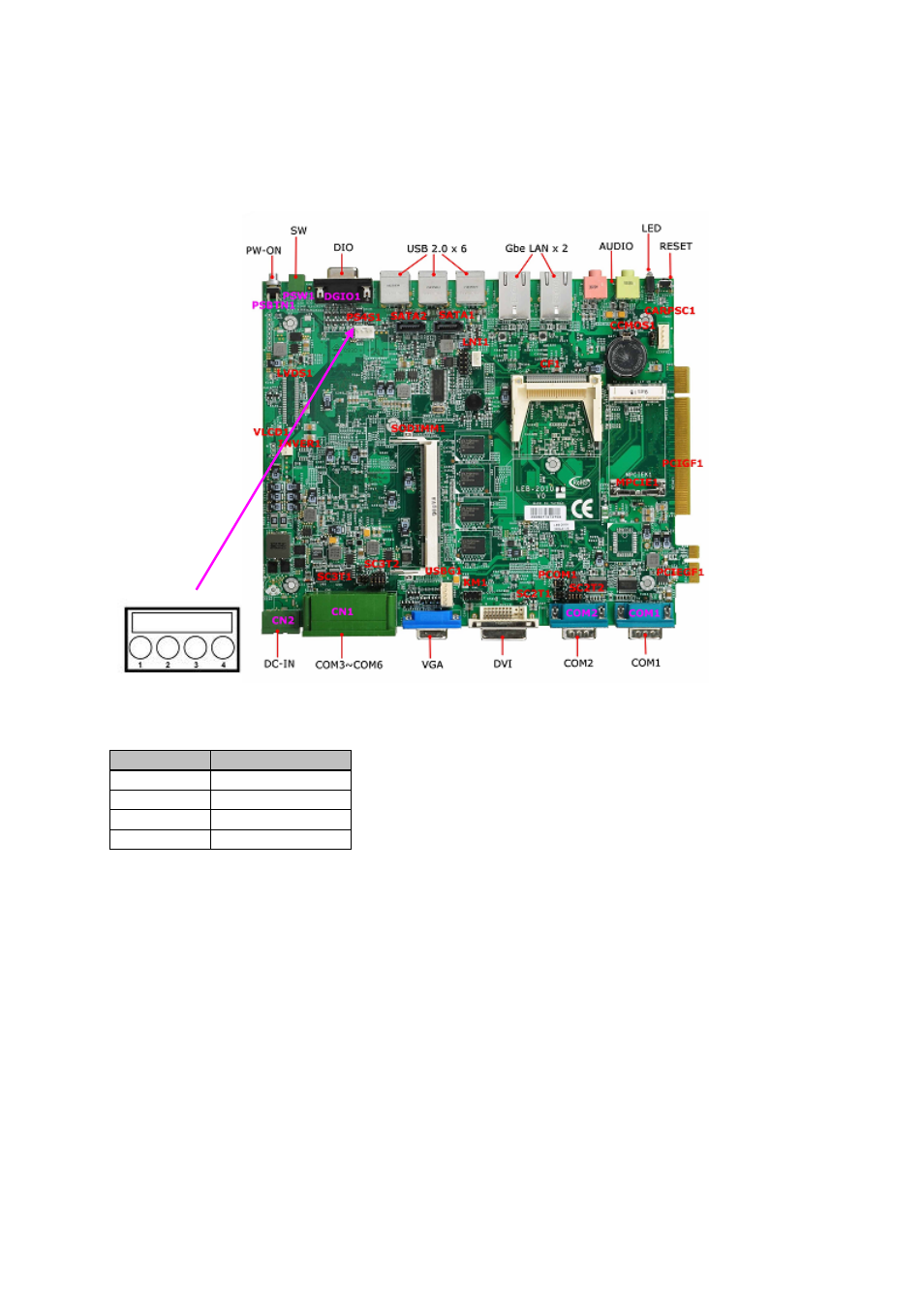

2.2.3.12 PS4S1: 4-Pin Power Connector (4P Male)


Pin No.

Description

1 +5V
2 GND
3 GND
4 +12V


Note: Only support one 2.5” HDD.
