LEC-2010 Fanless Embedded System User’s Manual

49

3.1.5 LEC-2010 Hard Disk Installation

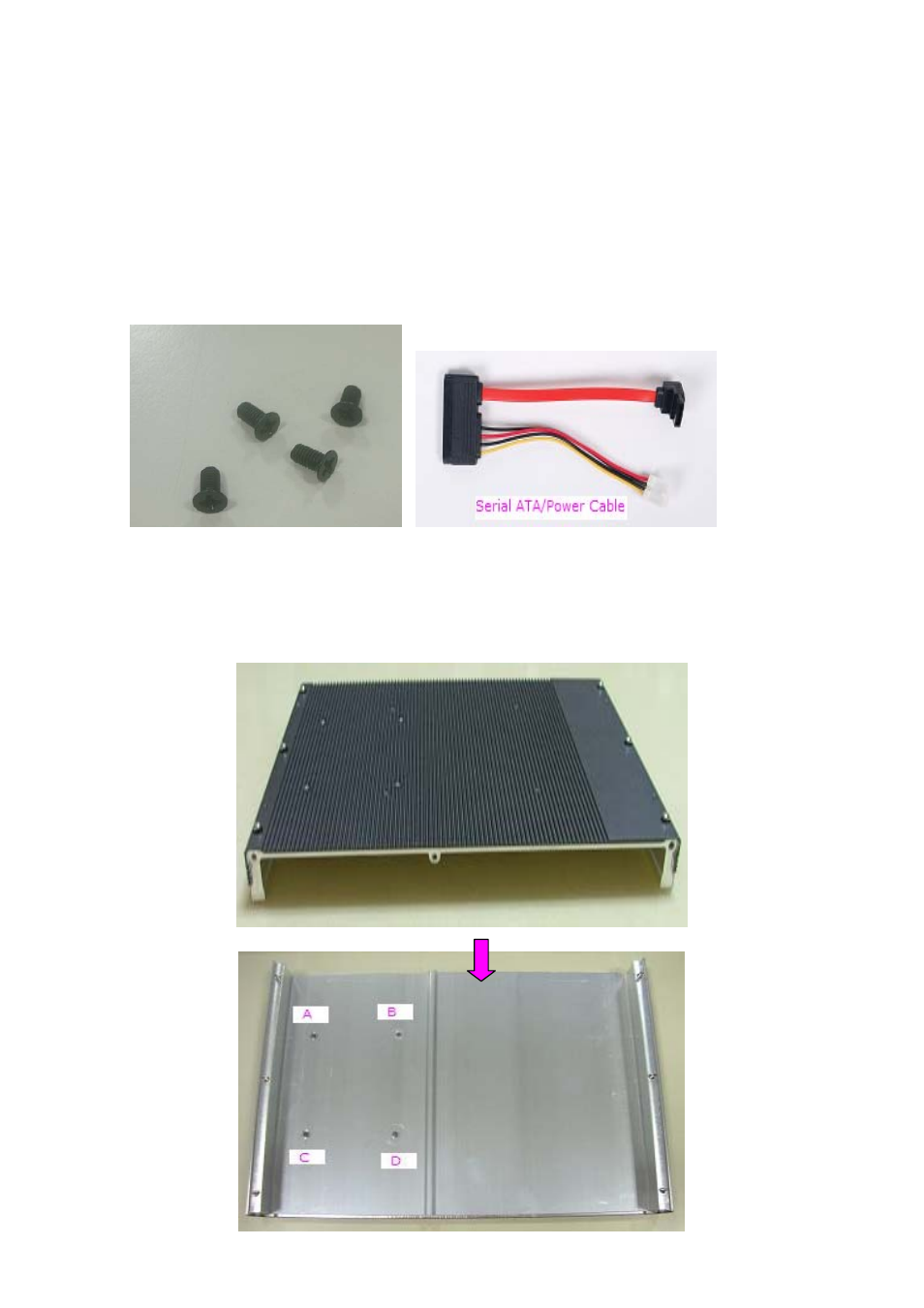

*HDD packing:

Spacer x 4
HDD Screw x 4
Serial ATA/Power Cable x 1

HDD Screw

Note: Please install 2.5” HDD



1. Invert Bottom Aluminum cover (Inverted )

*Inside View of the bottom cover
