LEC-2010 Fanless Embedded System User’s Manual

41

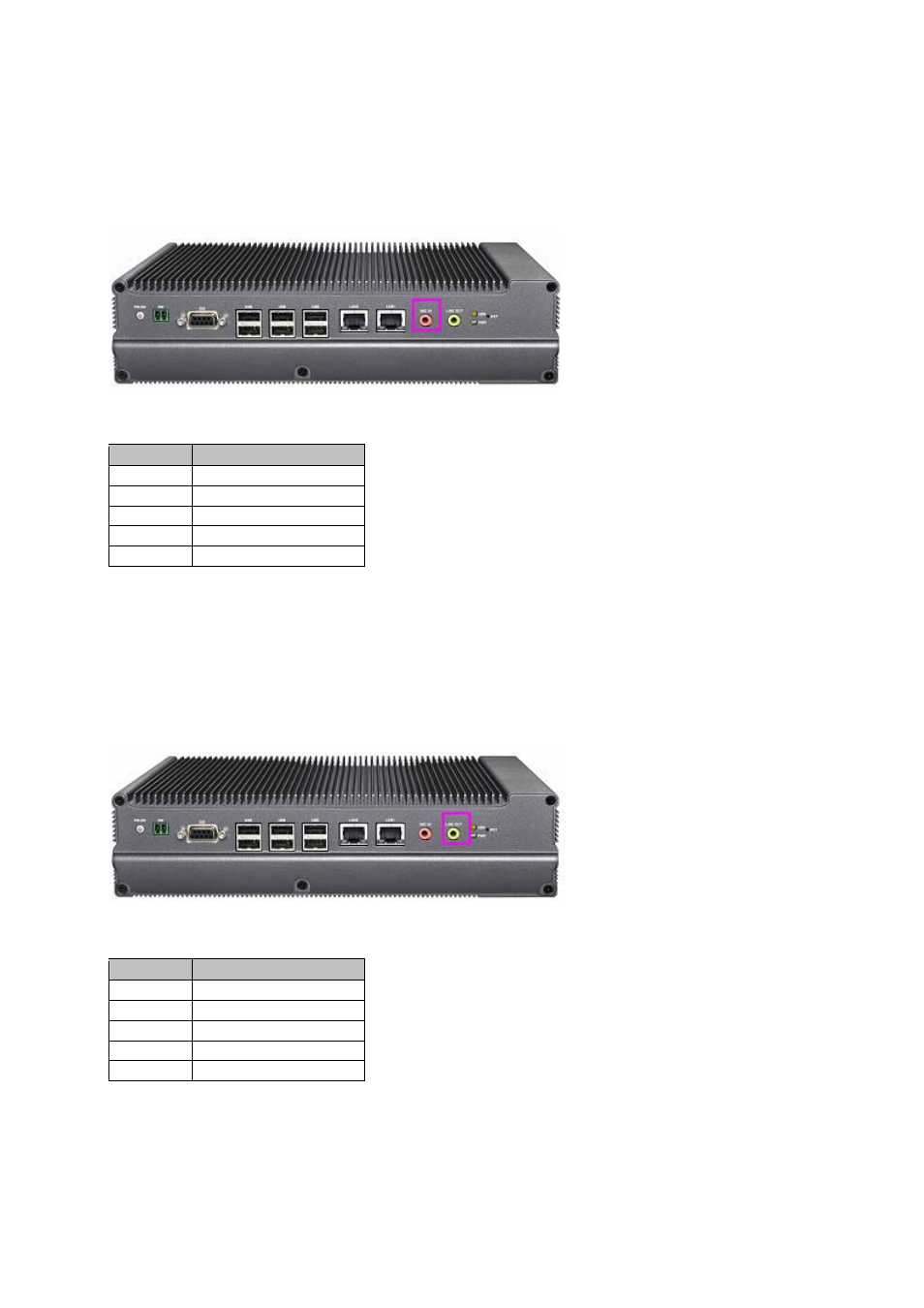

2.2.3.27 MIC IN Connector/5Pin-PHONE Jack (MIC1)



Pin No.

Description

1 CO_GND
2 MIC_INL
3 CO_GND
4 MIC-JDET
5 MIC_INR


2.2.3.28 LINE OUT Connector/5Pin-PHONE Jack (LNO1)



Pin No.

Description

1 CO_GND
2 LINOUT-L
3 CO_GND
4 LINOUT-JDET
5 LINOUT-

R
