LEC-2010 Fanless Embedded System User’s Manual

24

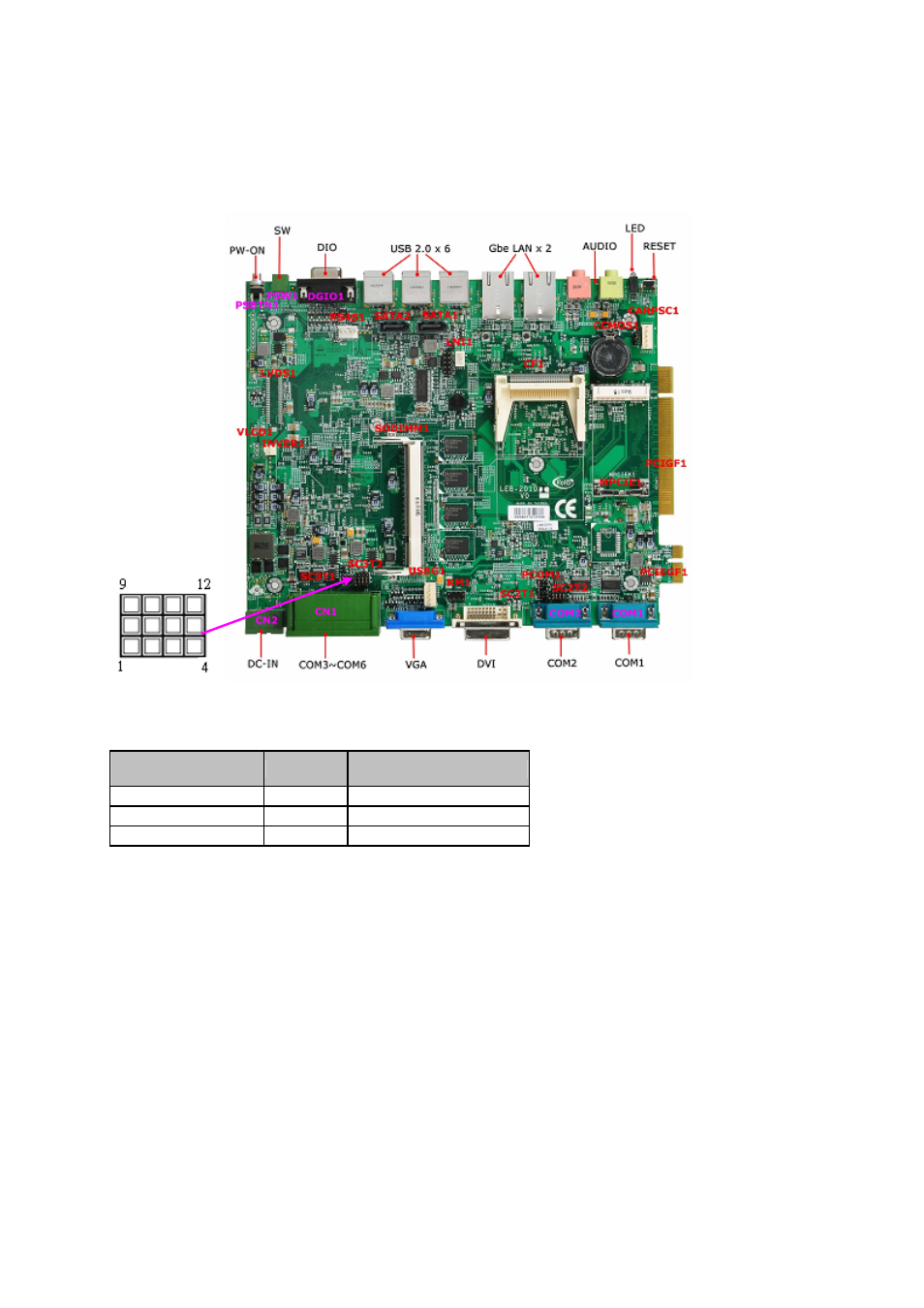

2.2.3.7 SC3T2: Select COM3 Type Jumper


COM3 TYPE

SC3T1

SC3T2

RS-232 (Default)

1-2

1-5,2-6,3-7,4-8

RS-422 3-4

5-9,6-10,7-11,8-12

RS-485

5-6

5-9,6-10,7-11,8-12
