RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
1-5

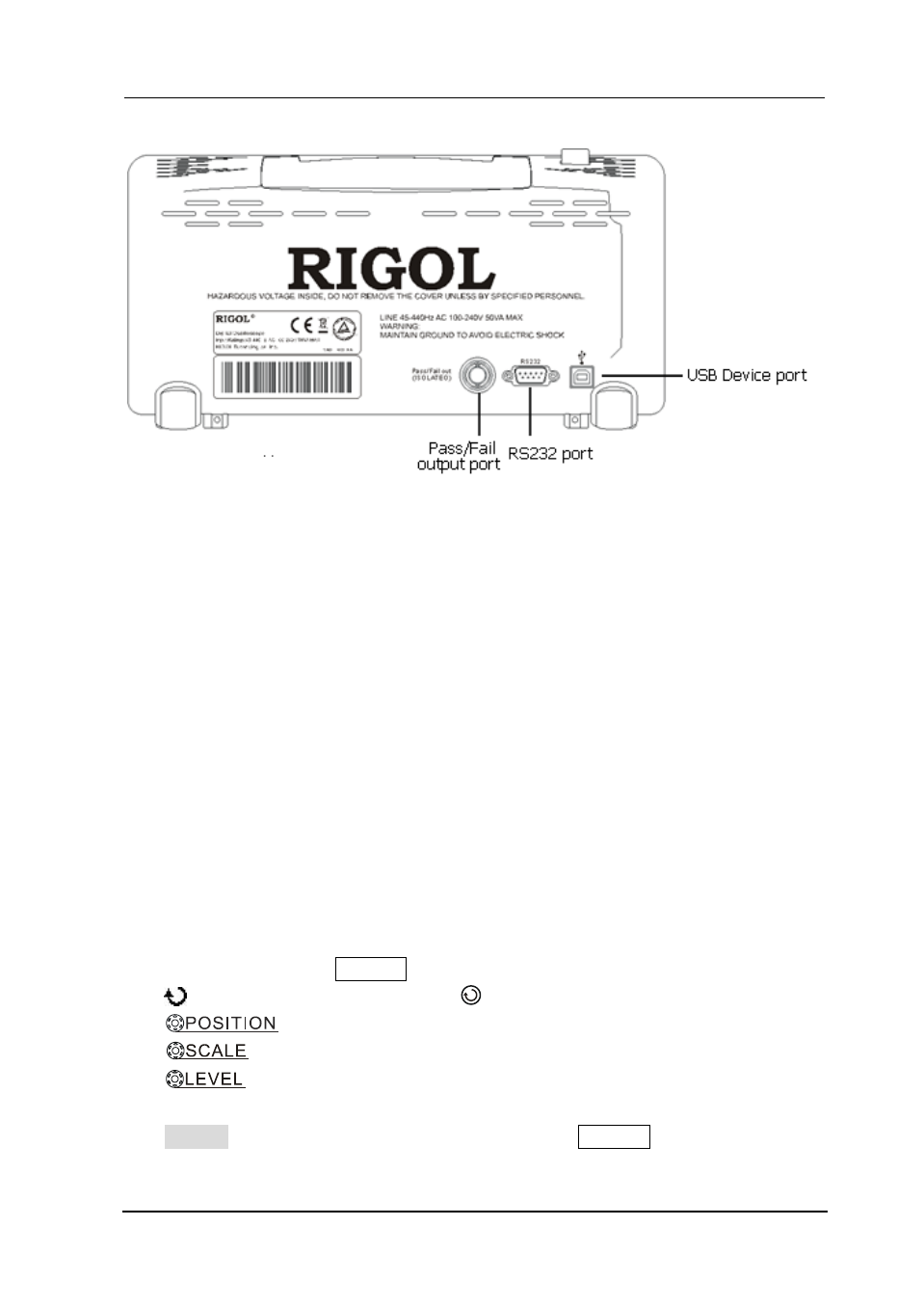

Figure 1- 4
Rear Panel Instruction
Rear Panel of DS1000E, DS10000D series contains the following parts:
①
Pass/Fail output port: The Pass/Fail testing results can be output by the port.
②
RS232 port: To connect the oscilloscopes and external equipment as serial
port.
③
USB Device port: It is used to transfer data when external USB equipment
connects to the oscilloscope regarded as “Device equipment”. For example: to
use this port when connect PictBridge printer to the instrument by USB.
Notation definitions in this User’s Guide:
Throughout this manual, notation symbols of buttons and knobs are the same to
those on front-panel.
 A box around the name of the button denotes MENU function buttons on
front-panel, such as Measure.
 denotes the multi-function knob .
 denotes the two POSITION knobs.
 denotes the two SCALE knobs.
 denotes the LEVEL knob.
 The name with a drop shadow denotes the menu operating button, such as
Storage denoting the "Storage" menu item under Measure.
