RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
2-24
1. Turn on or off a digital channel
Press LA→D7-D0→Channel, and choose the wanted channel by turning ( ) knob.
Press No. 1 soft button or push down ( ) knob to turn on /off the channel. When
the channel is on, we can see the mark ( ). When the channel is turned off; the
mark will display as ( ).

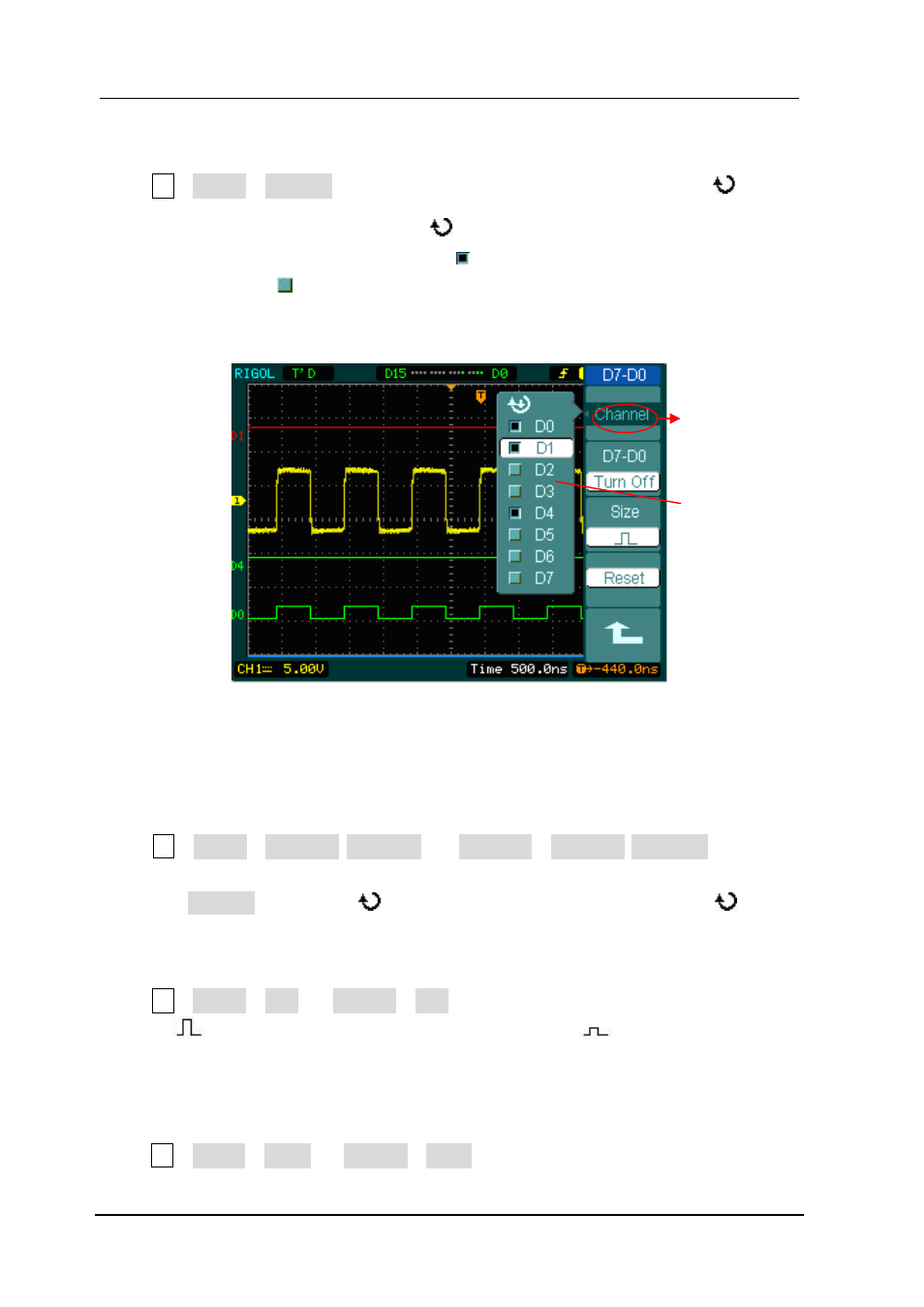

As figure 2-36 shows.
Figure 2- 36
Turn on or off the digital channel
2. Force turn on or off all digital channels
Press LA→D7-D0→Turn On / Turn Off (or D15-D8 →Turn On / Turn Off) will force
to turn all the channels on/off. If you want to turn on/off any single channel instead,
select the Channel by turning ( ) knob, then press No. 1 soft button or ( ) knob.
3. Set up the viewing size of digital channels
Press LA→D7-D0→Size, or D15-D8→Size, to select wave size of logic channels.
Select
to view 8 channels on the screen: Select to view all of the 16
channels on the screen.
4. Reset the digital channels display
Press LA→D7-D0→Reset, or D15-D8→Reset to reset the display of digital channels.
On-off
channels
Channel list
and status of
on-off
