User’s Guide for DS1000E, DS1000D Series
2-60

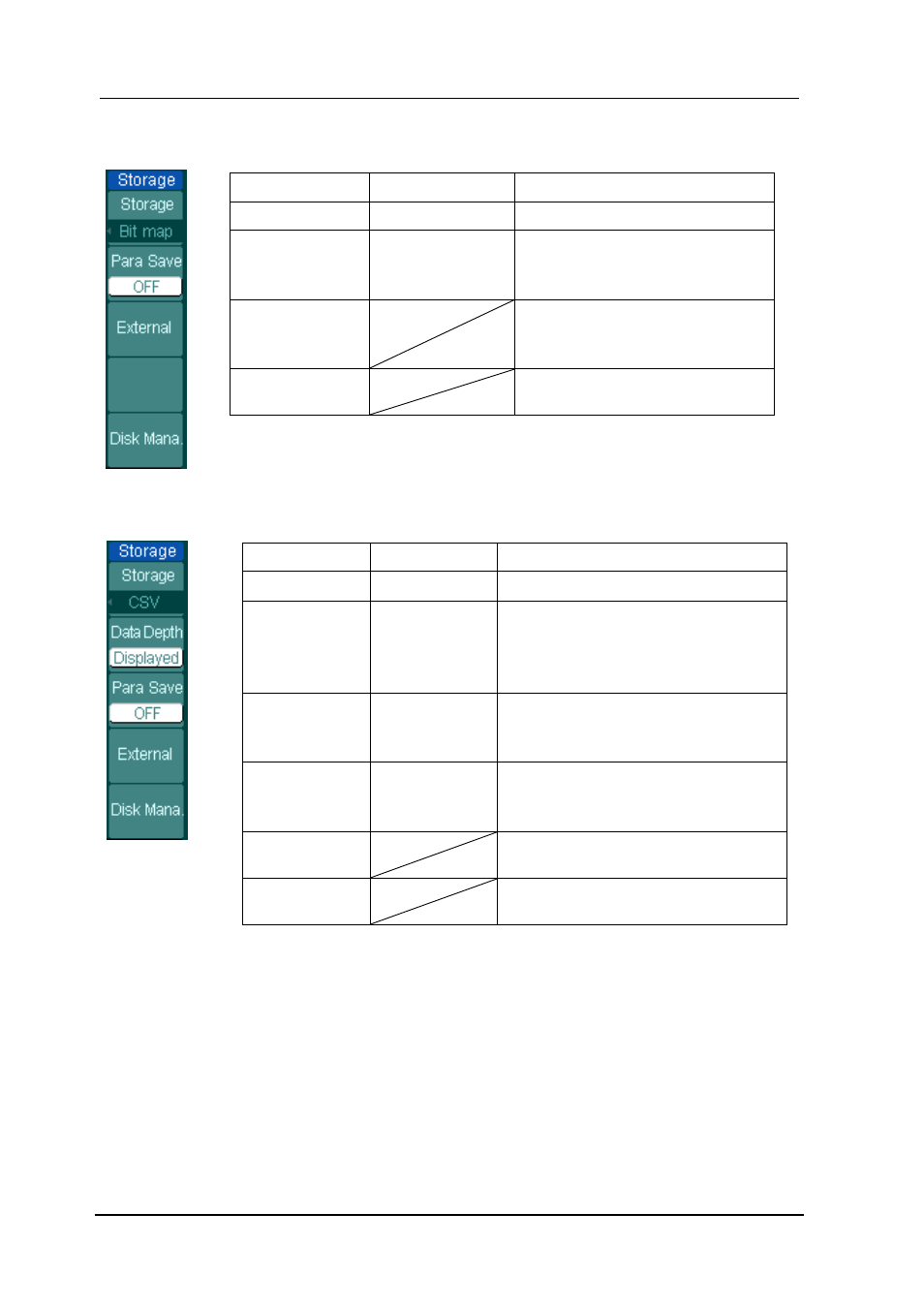

Figure 2- 78 Table 2- 46 The Storage menu (For Bitmap)
Menu Settings Comments
Storage Bit map Create or delete bit map files
Para Save
ON
OFF
Save the current oscilloscope
settings in different format
with the same file name
External
Go to menu for external
memory operation(see table
2-49)
Disk Mana.
Go to disk manage menu
(see table 2-50)
Figure 2- 79 Table 2- 47 The Storage menu (For CSV)
Menu Settings Comments
Storage CSV Create or delete CSV files
Data Depth
Displayed
Maximum
Save currently displayed
waveform data to CSV file
Save the whole waveform data
in memory to CSV file
Para Save
On
Off
Save the current oscilloscope
settings in different format with
the same file name
LA Data
Type [1]
Hex
Decimal
Binary
Save data in hexadecimal format
Save data in decimal format
Save data in binary format
External
Go to menu for external memory
operation (see table 2-49)
Disk Manage
Go to disk manage menu
(see table 2-50)
NOTE [1] : Applicable to DS1000D Series only.
