- 23 -

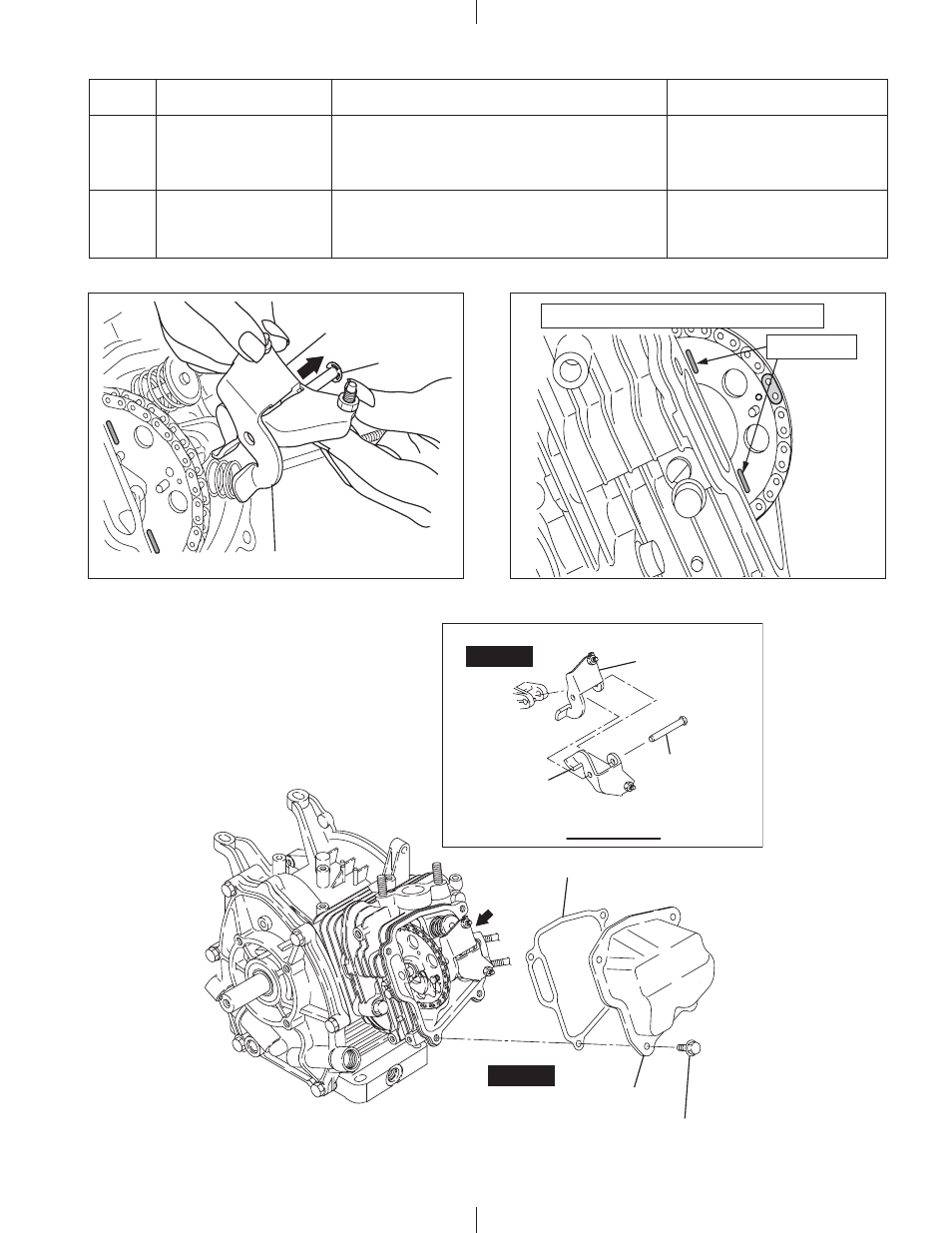

Fig. 5-14a
Step Parts to remove Remarks and procedures Fasteners
19
Rocker cover (1) Remove the rocker cover from the
cylinder head.
(2) Remove the gasket (rocker cover).
10 mm box spanner
M6 × 12mm : 4 pcs.
20
Rocker arm Remove the pin (rocker arm) and the rocker
arm from the cylinder head at the compression
top dead center. (See Fig. 5-14b)
Fig. 5-13
ROCKER ARM
(EXHAUST VALVE SIDE)
ROCKER ARM (INTAKE VALVE SIDE)
PIN
(ROCKER ARM)
ROCKER ARM
(EXHAUST
VALVE SIDE)
PIN
(ROCKER ARM)
CLOSE-UP A
A
ROCKER ARM
(INTAKE VALVE SIDE)
ROCKER COVER
GASKET (ROCKER COVER)
M6 x 12 BOLT : 4 pcs.
STEP 20
STEP 19
Punch marks
The position of compression top dead center
Fig. 5-14b
