- 4 -

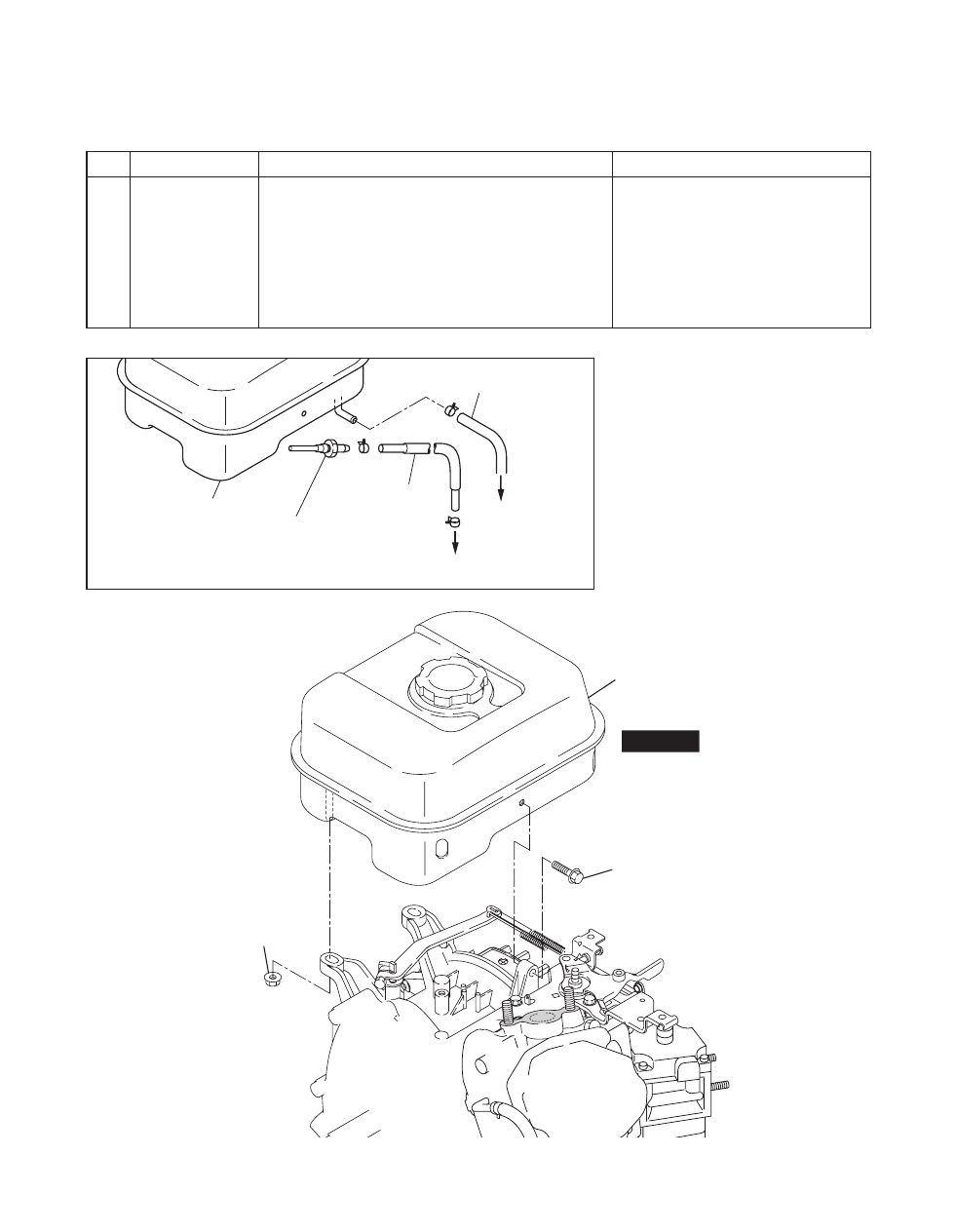

3-3 DISASSEMBLY PROCEDURES (DIFFERENCE)
Step Parts to remove Renarks and procedures Parts Fasteners
7
Fuel tank (1) Drain fuel from the tank .
(2) Remove the fuel tank mounting nuts and bolts from
the crankcase .
(3) Disconnect the fuel pipe from the tank outlet .
(See Fig . 3-1)
(4) Disconnect the fuel return line from the bottom of the
fuel tank . (See Fig . 3-1)
(5) Remove the fuel tank from the crankcase
10 mm spanner or box wrench
M6 nut : 2 pcs .
M6 × 25mm : 1 pc .
To throttle body
(Inlet fuel)
To throttle body
(Return)
FUEL TANK CP
FUEL PIPE
(FUEL INLET)
FUEL PIPE
(RETURN)
UNION
(FINE MESH FUEL FILTER)
Fig. 3-1
STEP 7
FUEL TANK
M6 x 25 BOLT : 1 pc.
M6 NUT : 2 pcs.
