Subaru Robin EA190V - Manual (Page 26)

23

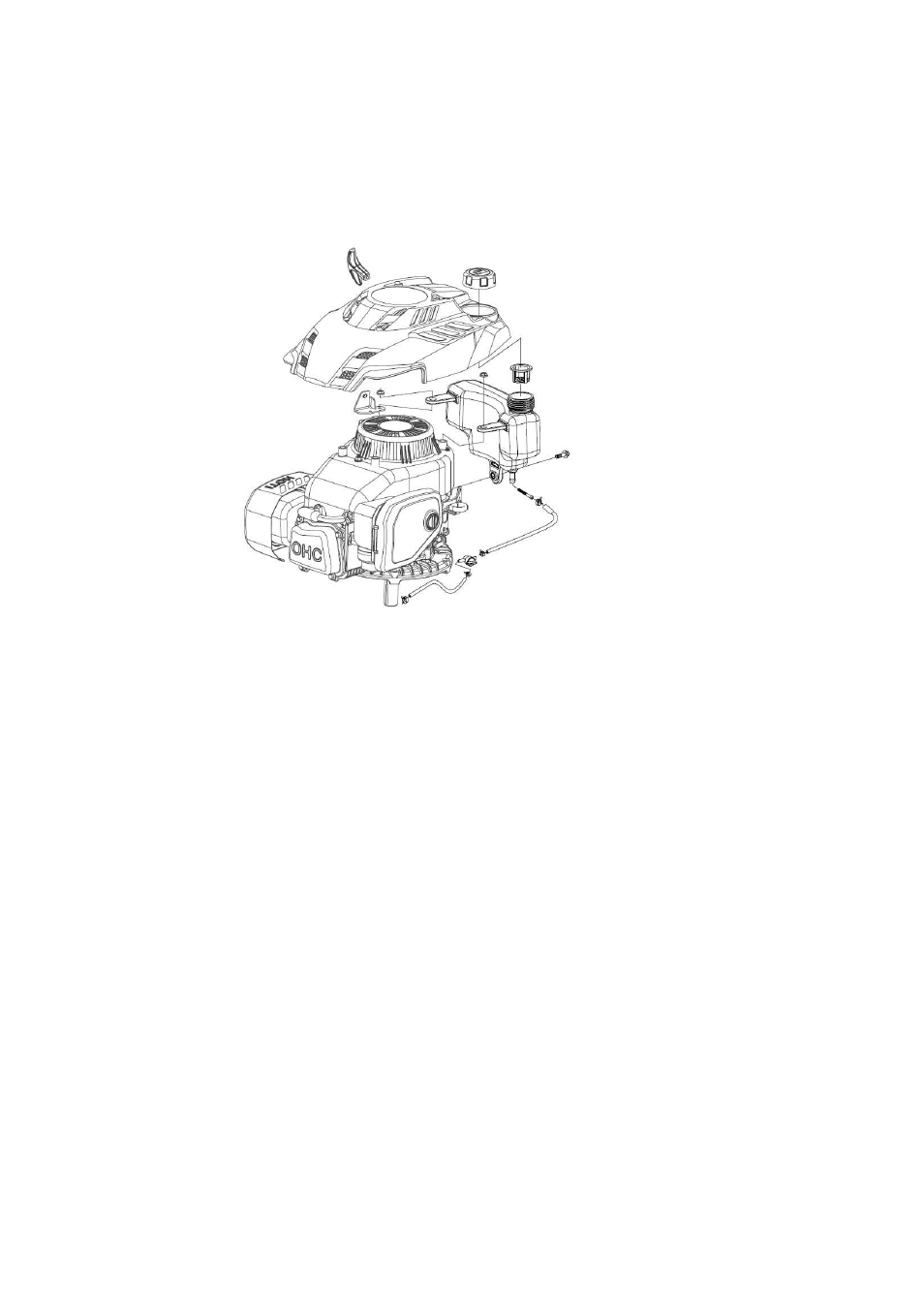

4-3-2 Fuel tank
● Disassembly/reassembly
The fuel tank does not require general maintenance, but, sometimes the dusts and vapor will trouble the fuel
system, so that, periodically washing it with lubrication oil and gasoline is required.
WARNING:
Don’t smoke or use fire near the flammable solvent.
● Clean/installation：
 Check the fuel tube for damage or leak.
 Drain out the fuel into the proper container.
 Remove screws（ M5×20），fuel tank cap, and engine housing.
 Remove the fuel tube, fuel strainer and remove the fuel tank.
 Clean the fuel tank and dry it thoroughly.
 Install the strainer on fuel tank after cleaning and connect the fuel tube on.
 Check the fuel tank for leak.
 Install the engine housing, fuel tank cap and screws（ M5×20）.
● Notice:
 Check fuel tank cover vent for blocked；
 Check the fuel strainer for clogged or broken；
 Check the fuel hose for aging an cracks；
