25
（ Secondary side）
Measure the resistance of the secondary side of the coil with the spark plug
cap removed, touching one test lead to the high tension cord while touching
the other tester lead to the coil’s iron core.
Secondary side resistance value：5-7 kΩ
●
Flywheel
Disassembly：
①
Holding the flywheel with a commercially available flywheel brake, remove the nut（M14）
② Disassemble the starter cup and impeller.
③ Remove with a commercially available flywheel puller.
NOTICE:
 Do not hit the flywheel with a hammer.
 Avoid the magnet section when attaching the puller.
Assembly:
a) Clean the tapered part of dirt on crankshaft and flywheel, oil grease and other foreign material
before installation. Be sure that there is no washer and other foreign material on the magnetic part.
b) Set the key in the key groove on the crankshaft.
c) Install the flywheel over the crankshaft.
NOTICE: The flywheel may push the key out of its slot, check after assembling.
·Flywheel nut torque value：64±4N.m（aluminum flywheel） 78±4N.m（iron flywheel）
Flywheel (cast iron)
 Attach by aligning the four small holes in the flywheel.
 Attach by aligning the lug on the rear side of the starter cup with the small hole at the center
of the flywheel.

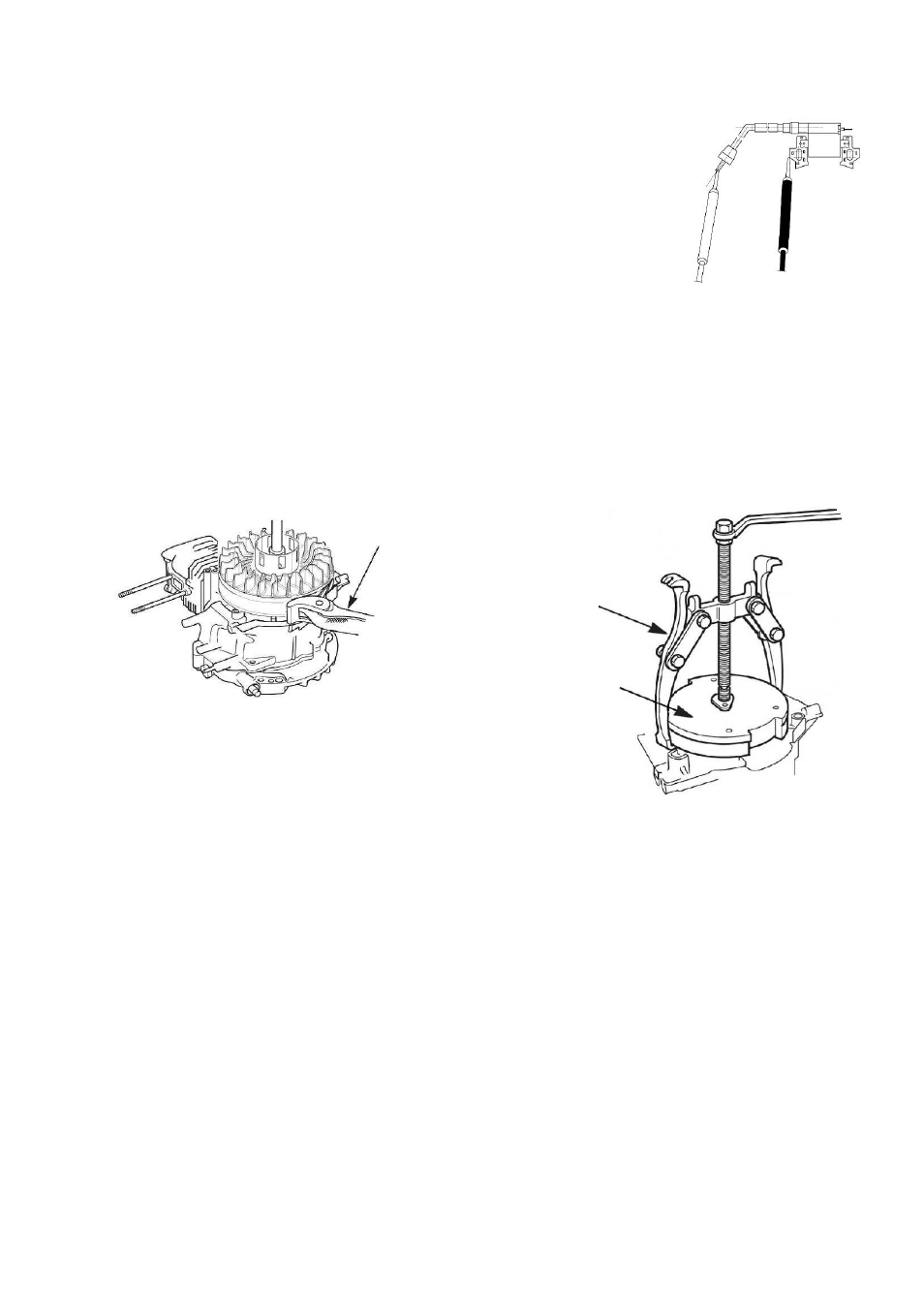

FLYWHEEL BRAKE
(COMMERCIALLY AVAILABLE)
FLYWHEEL
WHEEL PULLER
(COMMERICIALLY AVAILABLE)
