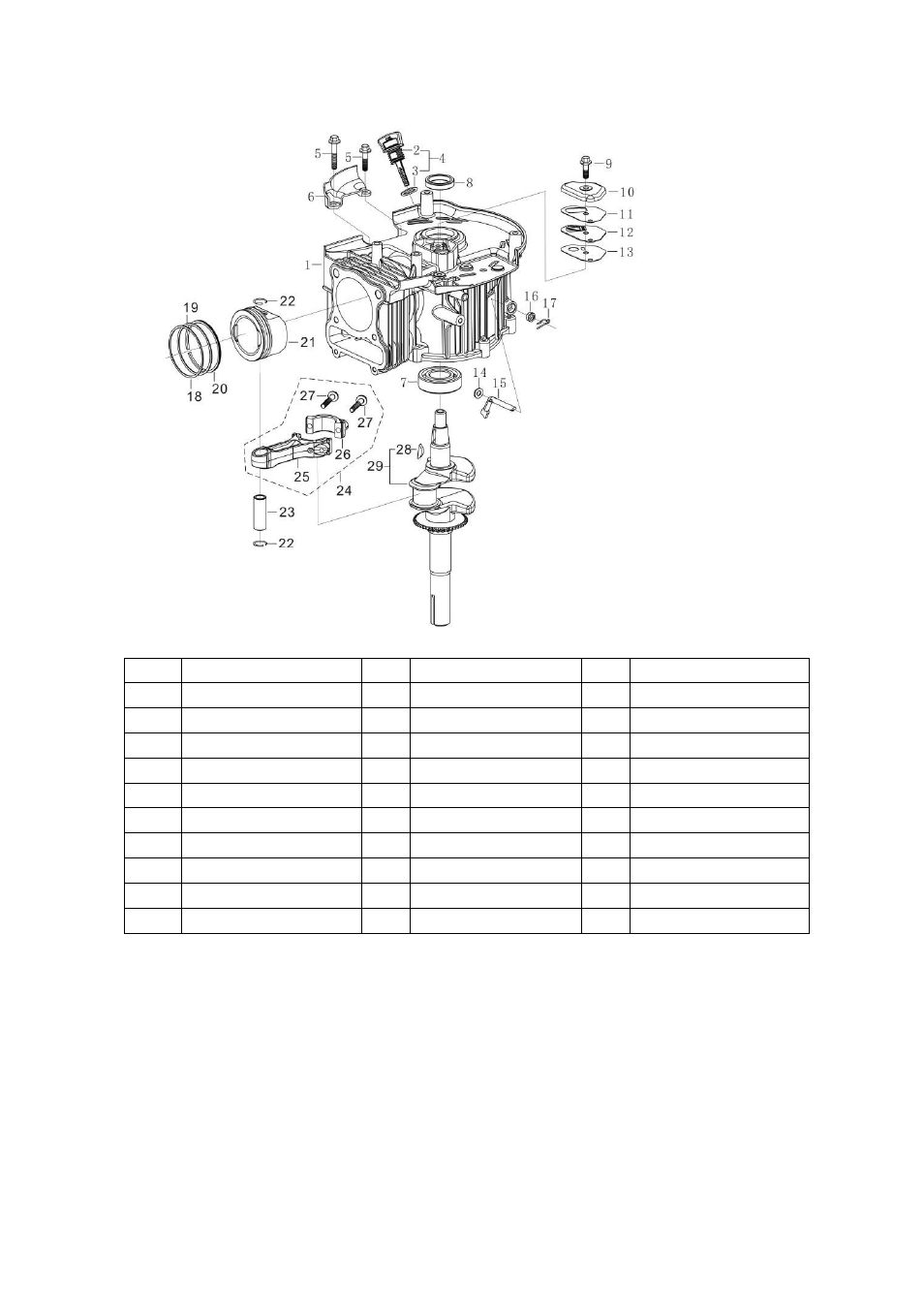

4-4-10 Crankshaft/piston/crankcase
No. Description No. Description No. Description
1 Crankcase assy. 11 Gasket 21 Piston
2 Oil dipstick 12 Breath piece assy. 22 Clip
3 Seal ring 13 Gasket 23 Pin
4 Oil dipstick 14 Flat washer-A class 24 Connecting rod
5 Bolt （M6×16） 15 Governor arm 25 Connecting rod body
6 Lower cover 16 Oil sealΦ6ЧΦ11Ч4 26 Connecting rod cover
7 Ball bearing 17 Split pin 27 Connecting rod bolt
8 Oil sealΦ25ЧΦ35Ч6 18 First ring 28 Woodruff key
9 Bolt （M6×20） 19 Second ring 29 Crankshaft
10 Breather cover 20 Oil ring assy. 30
