Installation
Manual No. DB11-000024-00
2-7

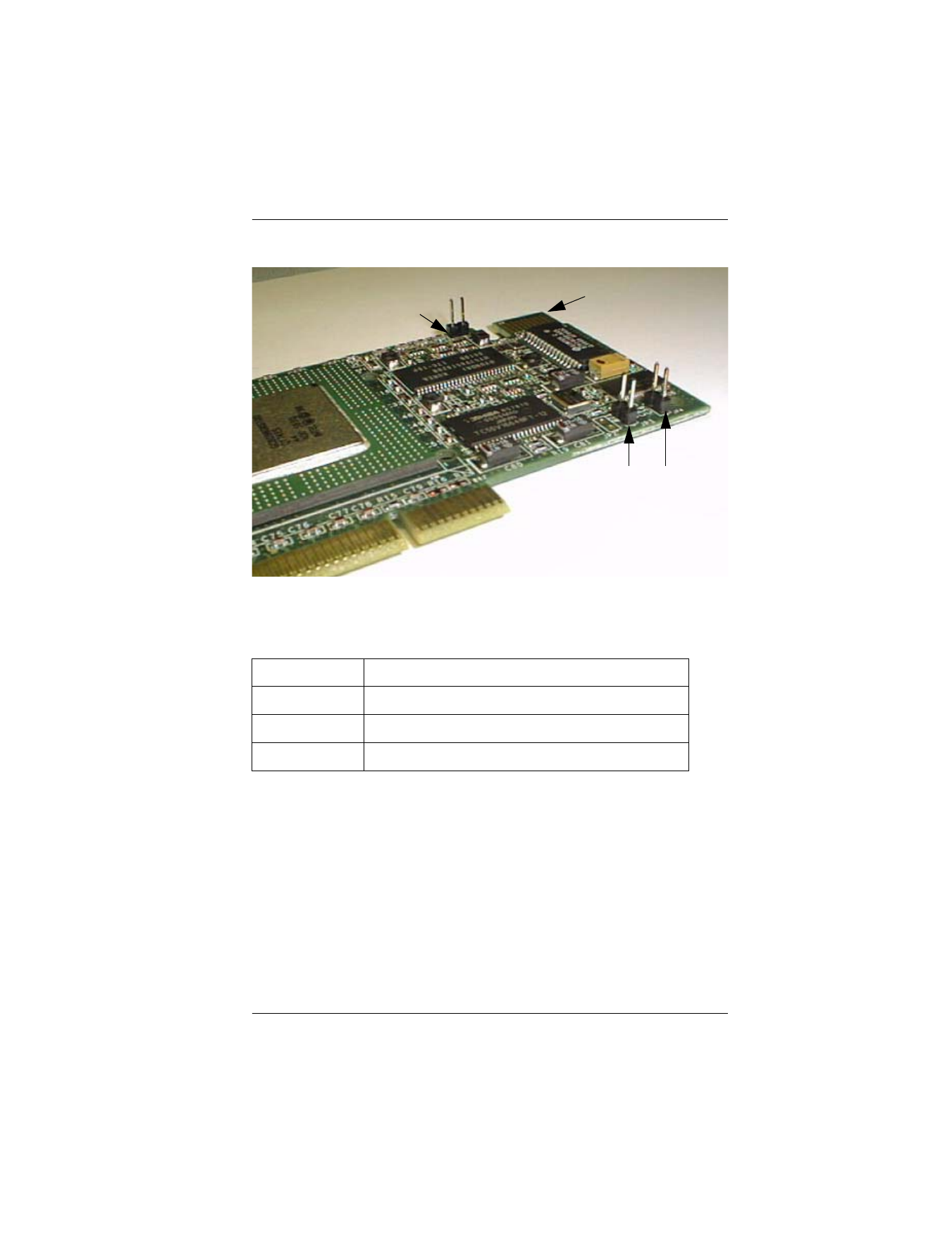

Figure 2-3. AcceleRAID 170LP Jumper Locations
Table 2-3. AcceleRAID 170LP Jumper Descriptions
JP1
SCSI Activities LED Header
JP3
Maintenance Mode
JP4
Cache Dirty (monitor cache write back) – LED Header
J1
Debug serial edge connector
JP1
JP3 JP4
J1
