CTRL
TRIGG
PICO
LOAD
OUT
IN
CLK
T1
T2
T3
T4

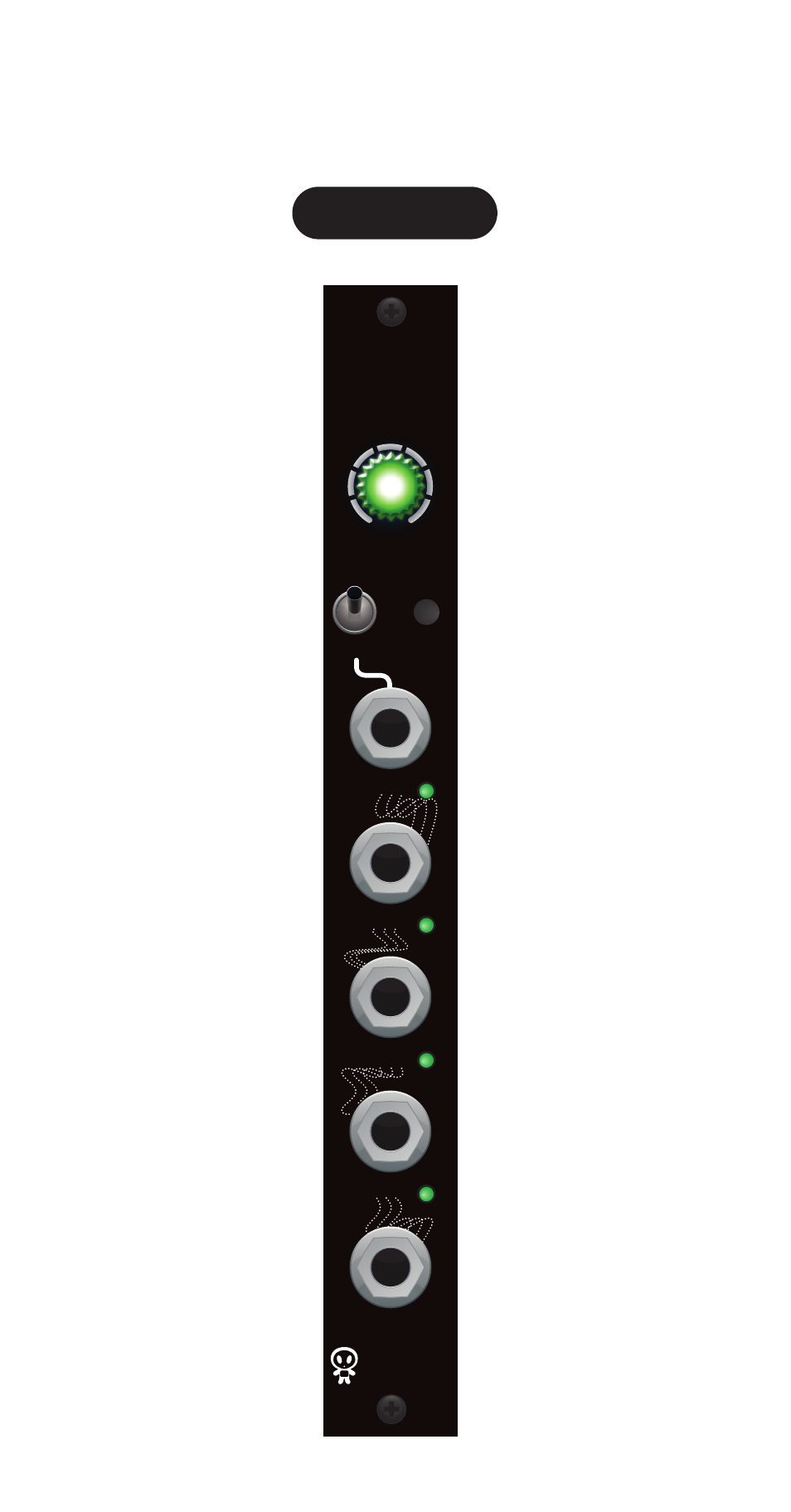

IN/OUT SWITCH selects Clock
source. out setting means the
module generates internal clock
and outputs it on CLK jack. in
setting means you can patch the
external clock signal in CLK jack.
The module will start to play
sequence as soon the first clock
signal appears.
The encoder allows you to
access main features of the
module. Push the encoder to move
through different modes.
1) If the encoder is blinking GREEN,
it indicates PATTERN PLAY mode
and stets clock rate.
2) If the encoder is light YELLOW,
it sets shuffle amount. Rotate
the encoder to alter shuffle
amount. The brighter is the
encoder, the more shuffle is
applied.
3) To upload patterns from the
web interface, set the IN/OUT
switch to IN setting and then
push and hold the encoder for
2’’. The encoder will blink RED.
Now you can connect a
laptop/tablet/mobile phone
with pattern designer
interface open to CLK jack and
upload pattern to the selected
memory slot. It will take about
second for upload to complete,
and the encoder will blink
green once. Now you can upload
next pattern, etc. Once you
have uploaded all patterns,
push the encoder promptly,
and it will advance to PATTERN
PLAY mode.
NB! DO NOT CONNECT ANY DEVICE
RUNNING “PATTERN DESIGNER”
TO THE “CLK” PORT WHEN THE “CLK”
IS SET TO “OUT”. BY DOING SO YOU
MIGHT DAMAGE YOUR DEVICES AUDIO
OUT PORT.
Patch external clock TO CLK JACK
or send the internal clock to
other modules. Also use this jack
to upload patterns from
web-based pattern
designer interface.
LOAD button allows you to load
trigger patterns from internal
memory on the fly, even during
performance. Once button is
pressed, Trigger Out LEDs will stop
blinking (but module continues to
send trigger signals)AND WILL
INDICATE PATTERN SELECTION. T1-T4
MEANS PATTERNS 0-3 AND BLINKING
T1-T4 SHOWS PATTERNS 4-7.. Rotate
the encoder to select a pattern
and push the encoder to confirm.
Four LEDs indicate the active
Triggers and selected patterns.
T1, T2, T3 AND T4 are
Trigger outputs
PICO
TRIGGER
