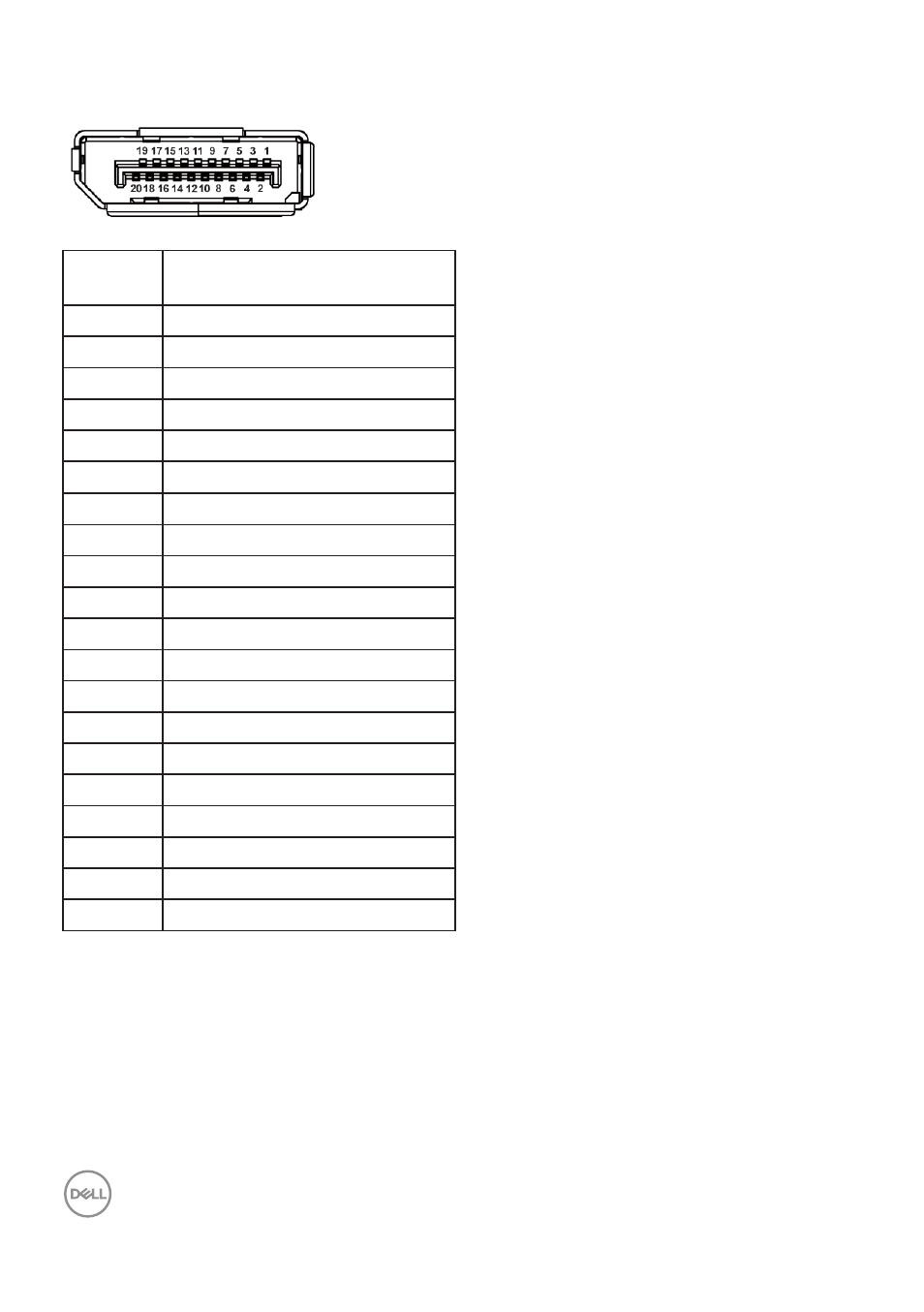

DisplayPort connector (out)
Pin
number
20-pin side of the
connected signal cable
1
ML0 (p)
2
GND
3
ML0 (n)
4
ML1 (p)
5
GND
6
ML1 (n)
7
ML2 (p)
8
GND
9
ML2 (n)
10
ML3 (p)
11
GND
12
ML3 (n)
13
CONFIG1
14
CONFIG2
15
AUX CH (p)
16
GND
17
AUX CH (n)
18
Hot Plug Detect
19
Return
20
DP_PWR
