1-10 Chapter 1: Product Introduction
Chapter 1

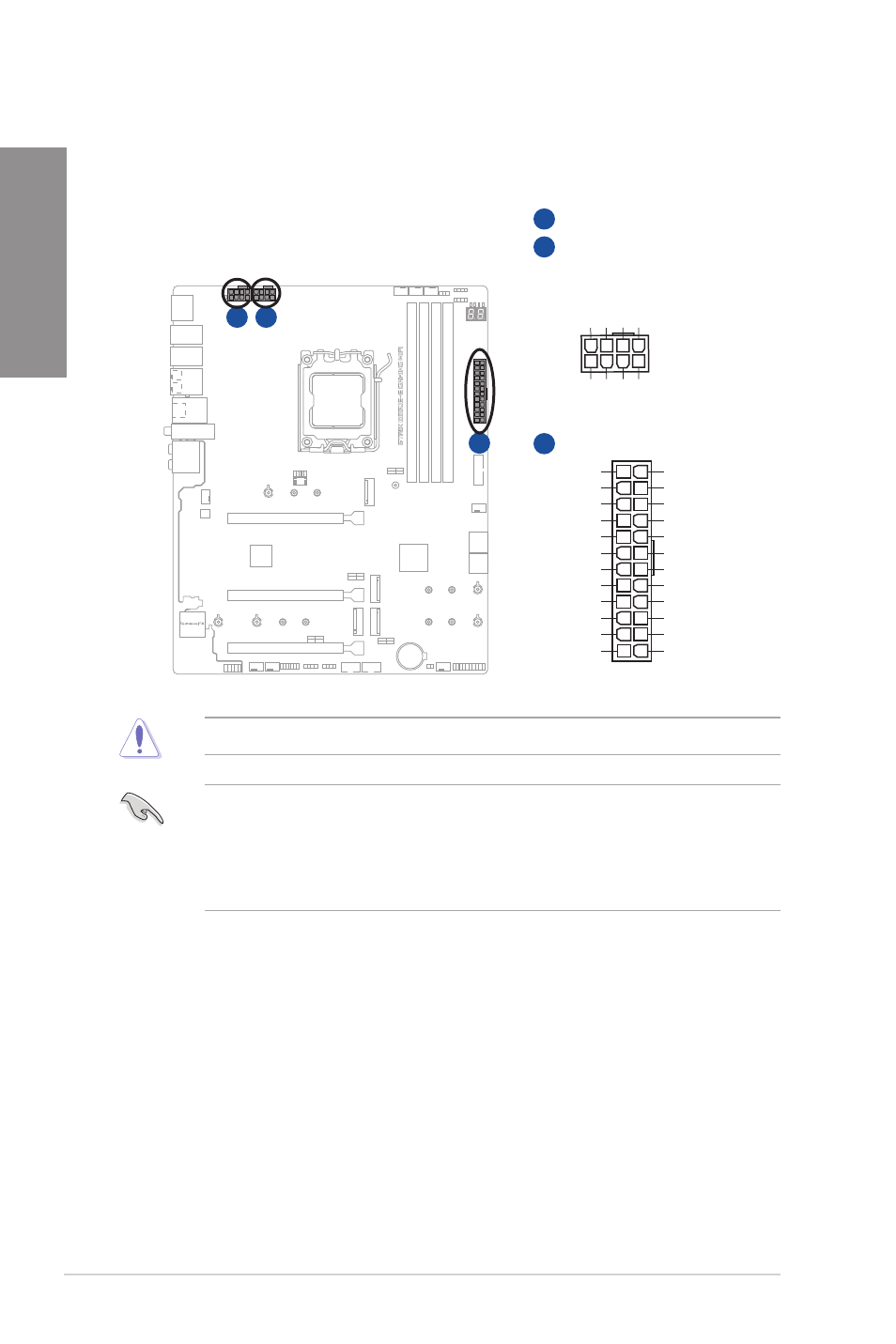

5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply.
The power supply plugs are designed to fit in only one orientation. Find the proper
orientation and push down firmly until the power supply plugs are fully inserted.
A
C
A
B
ATX_12V_1
B
ATX_12V_2
+12V DC +12V DC +12V DC +12V DC
GND GND GND GND
ATX_PWR
PIN 1
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
C
Ensure to connect the 8-pin power plugs or both 8-pin power plugs.
• We recommend that you use a PSU with a higher power output when configuring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with
1000W power or above to ensure the system stability.
