ROG STRIX B650E-E GAMING WIFI 2-17
Chapter 2

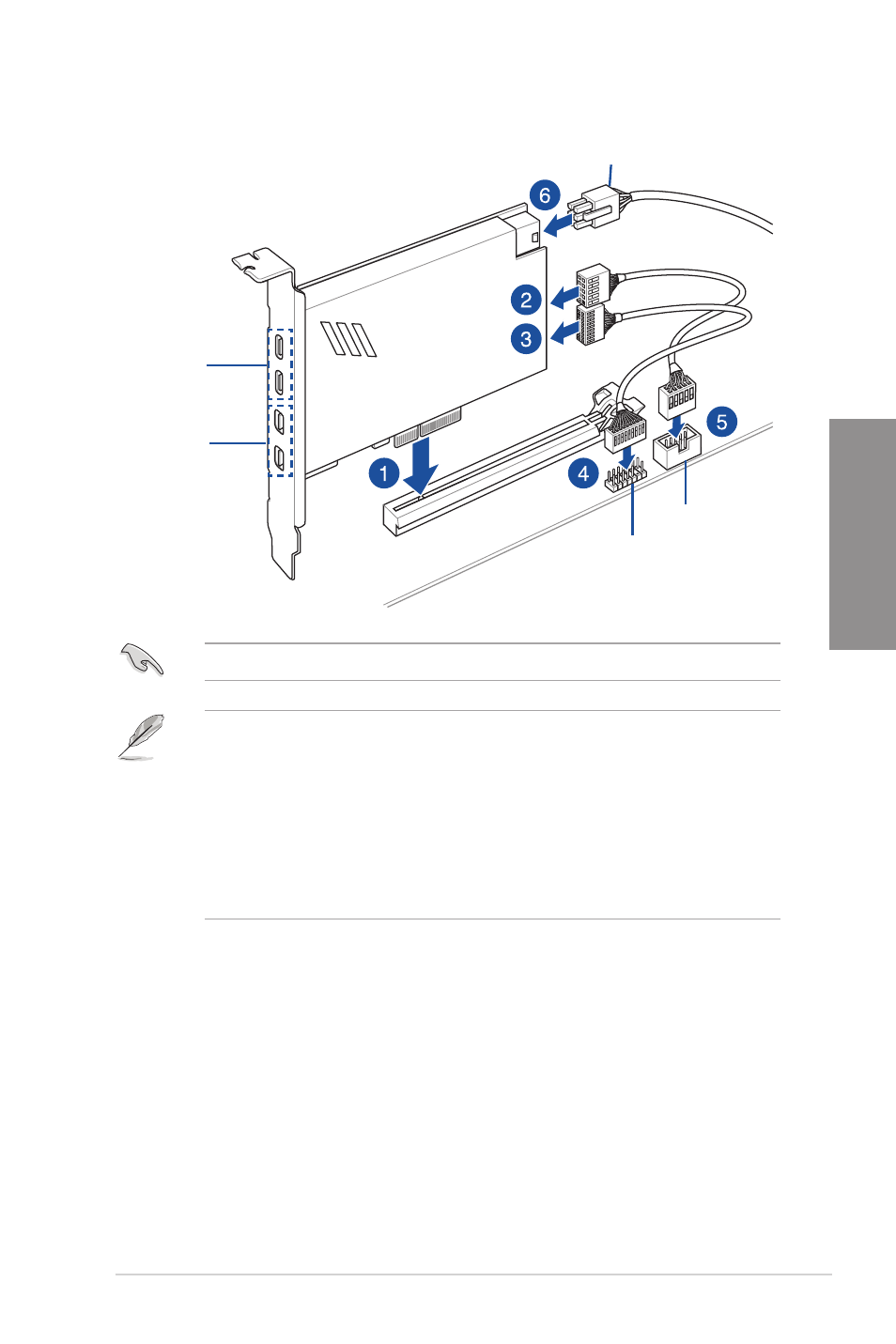

To install Thunderbolt™ series card
Thunderbolt™ header
USB Type-C ®
port connects
to Thunderbolt
devices
MiniDP in port
connects to DP
out port on the
motherboard
or a VGA card
USB 2.0 header
6-pin PCIe power connector
Ensure to install the Thunderbolt™ series card to a PCIe slot from PCH.
• Step 6 is optional, please connect a 6-pin PCIe power connector when you wish to
use the USB Type-C ® port Thunderbolt™ quick charge feature to charge a 5V or
more device.
• The TypeC_1 port can support up to 20V devices, and the TypeC_2 port can support
up to 9V devices when the 6-pin PCIe power connector is connected.
• The Thunderbolt™ series card is sold separately.
• Please visit the official website of your purchased Thunderbolt TM card for more details
on compatibility.
