ROG STRIX B650E-E GAMING WIFI 2-23
Chapter 2
ACT/LINK
LED
SPEED
LED
Ethernet port
* Intel ® 2.5Gb Ethernet port LED indications

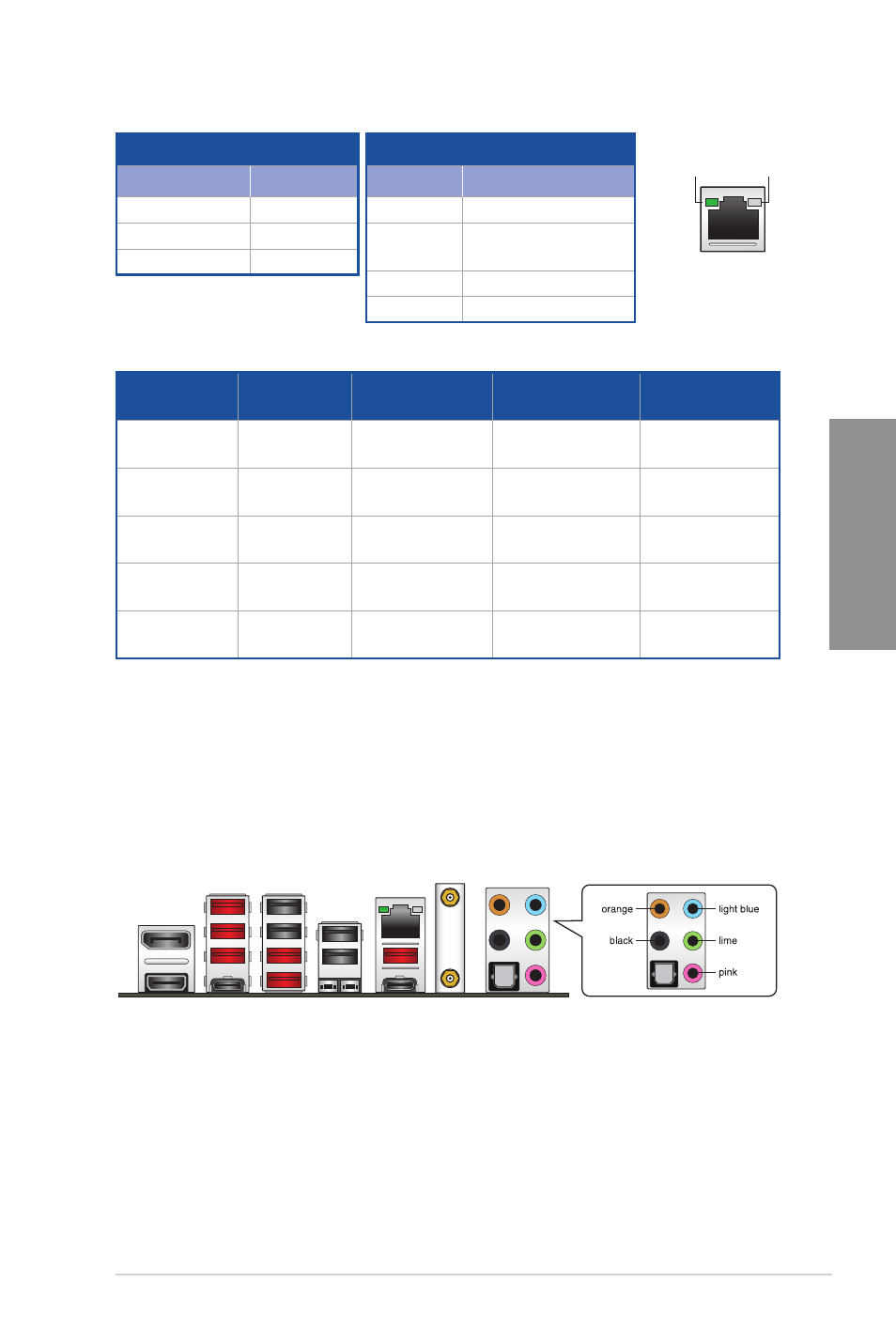

2.3.2 Audio I/O connections
Audio I/O ports
** Audio 2, 4, 5.1 or 7.1-channel configuration
Port 2-channel 4-channel 5.1-channel 7.1-channel
Light Blue
(Rear panel)
– – – Side Speaker
Out
Lime
(Rear panel)
Front Speaker
Out
Front Speaker
Out
Front Speaker
Out
Front Speaker
Out
Pink
(Rear panel)
– – – –
Black
(Rear panel)
– Rear Speaker
Out
Rear Speaker
Out
Rear Speaker
Out
Orange
(Rear panel)
– – Center/
Subwoofer
Center/
Subwoofer
Speed LED
Status
Description
OFF No link
OFF
100 Mbps / 10 Mbps
connection
GREEN 2.5 Gbps connection
ORANGE 1 Gbps connection
Activity Link LED
Status
Description
OFF No link
GREEN Linked
BLINKING Data activity
