NAD Electronics T 758 V3i 7.1-Channel Network A/V Receiver - Manual (Page 29)

ENGLISH
29

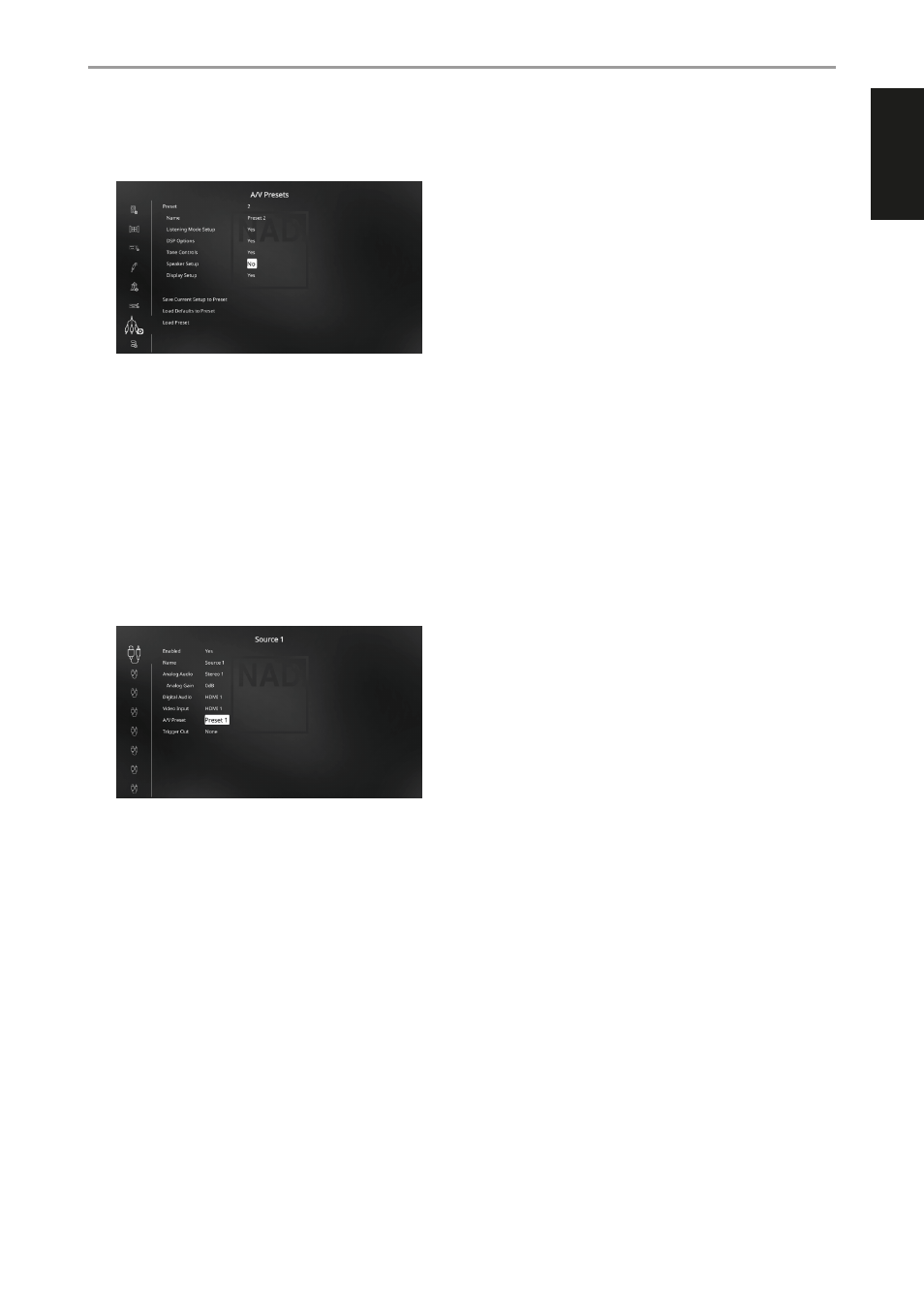

6 At “A/V Presets” page, set “Preset: 2” to the following conditions - use
[
D/F ] to select “Yes” or “No” and press [ENTER] to confirm selection
and move to the next setting.
While at “Save Current Setup to Preset” menu line, use [ S ] to save the
settings above to “Preset 2”. When you recall “Preset 2” using the remote
control (for AVR 4, “A/V PSET” + “2”), the above preset values allocated at
“Preset 2” (preset settings as shown in the OSD captures at Step 4) will
be recalled and effected at the current source.
Note that “Speaker Setup” is set to “No”. At this condition, there will
be no “Speaker Setup” values that will be effected at “Preset 2”. The
“Speaker Setup” settings that will be applied at “Preset 2” will be the last
or current “Speaker Setup” settings which in this sample are the same
“Speaker Setup” settings shown above in Step 1.
7 You can setup up to 5 A/V Presets. These same A/V Presets can also be
associated/defaulted to each Source in the “Source Setup” window as below.
In the above example, “Preset 1” settings are allocated for Source 1.
Whenever Source 1 is accessed, the “Preset 1” settings will be applied
to Source 1. You can still manually override the assigned A/V Preset
allocation in a specific Source with another Preset setting/number by
way of pressing the appropriate remote control buttons.
RECALLING PRESETS
You may recall an A/V Preset number at any time using the AVR 4 remote
control. Press the AVR 4’s A/V PSET key and then the numeric key 1-5
corresponding to the desired A/V Preset number. The newly recalled A/V
Preset will then manifest or replace the previous A/V Preset (if any).
OPERATION
USING THE T 758 – SETUP MENU
