LECTROSONICS, INC. 12

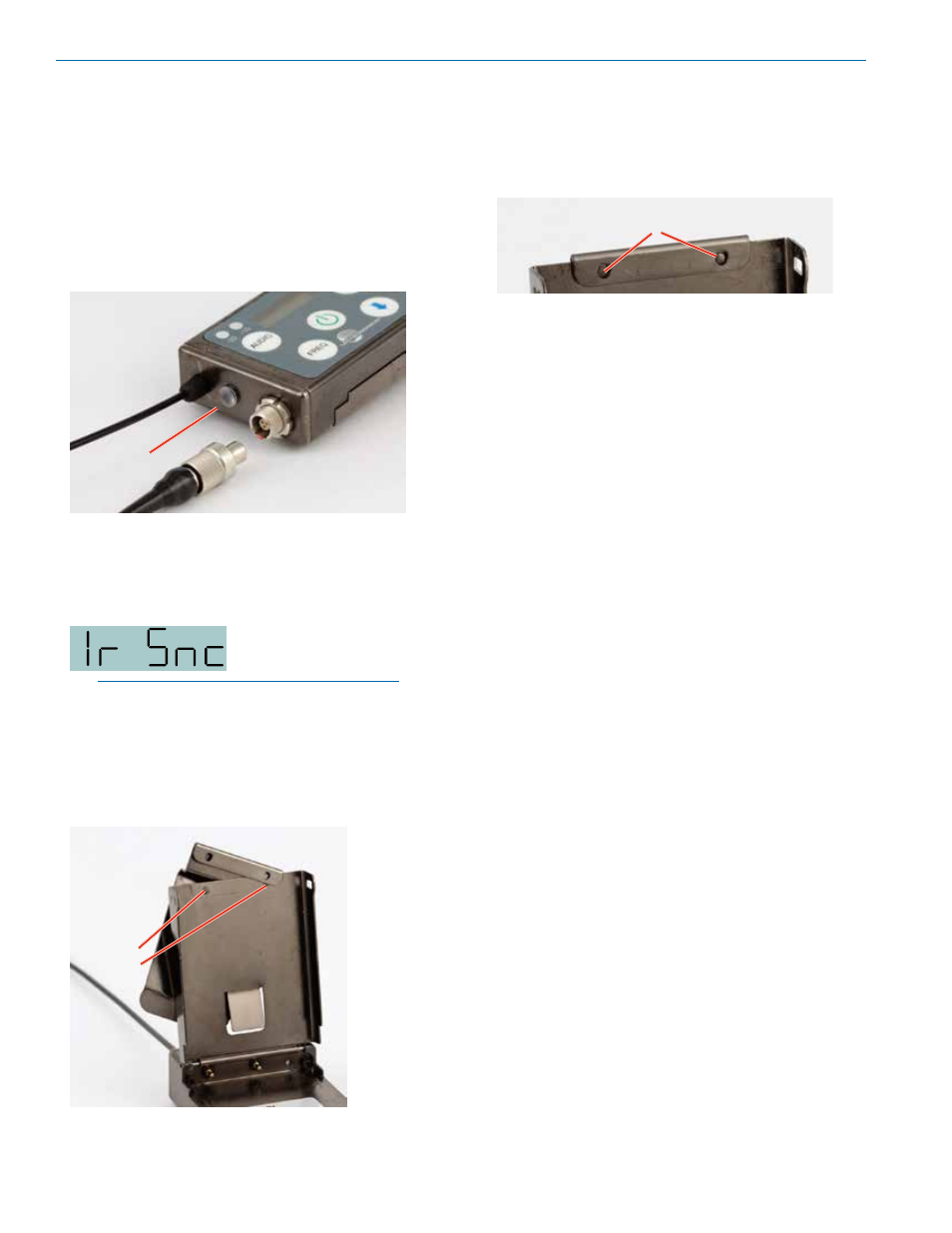

IR (infrared) Sync
An IR (infrared) link between an associated receiver
and the transmitter can be used to shorten setup time
and ensure that the correct settings in the transmitter
are made. The dome on the side panel of the transmit-
ter is the port used for the IR link. The receiver is nor-
mally used to identify a clear operating frequency. Once
step size, frequency and compatibility mode are set in
the receiver, the settings can be sent to the transmitter
via this IR link.
IR port
Place the transmitter close to the IR enabled receiver
with the ports facing each other within a foot or two
apart. Send the settings with the trigger on the receiver.
If the settings are successfully transferred, a confirma-
tion message will appear on the transmitter LCD.
NOTE: If a mismatch exists between the receiver
and transmitter, an error message will appear on
the transmitter LCD stating what the problem is.
Removable Belt Clip
The belt clip may be removed by sliding it off the retain-
ing tabs on the battery door.
Retaining
tabs
When mounting the belt clip onto the battery door, care-
fully align the openings with the retaining tabs on the
door. If they are not precisely aligned, the door may not
close and latch properly.
Align the openings
and tabs precisely.
Remote Control
Remote control signals (“dweedle tones”) may be used
to control the transmitter. The tones are played back into
the microphone to avoid the need to reach and handle
the transmitter when making changes to the following
adjustments and settings:
• Input Gain
• Sleep/Unsleep
• Lock/Unlock
• Tx power output
• Frequency
A smart phone app is available in the App Store and in
Google Play to implement this control. Search for the
title LectroRM .
