Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (A1: 470.100 to 537.575 MHz) - Manual (Page 16)

SSM, SSM-941, SSM/E01, SSM/E02, SSM/E06, SSM/X
LECTROSONICS, INC. 16

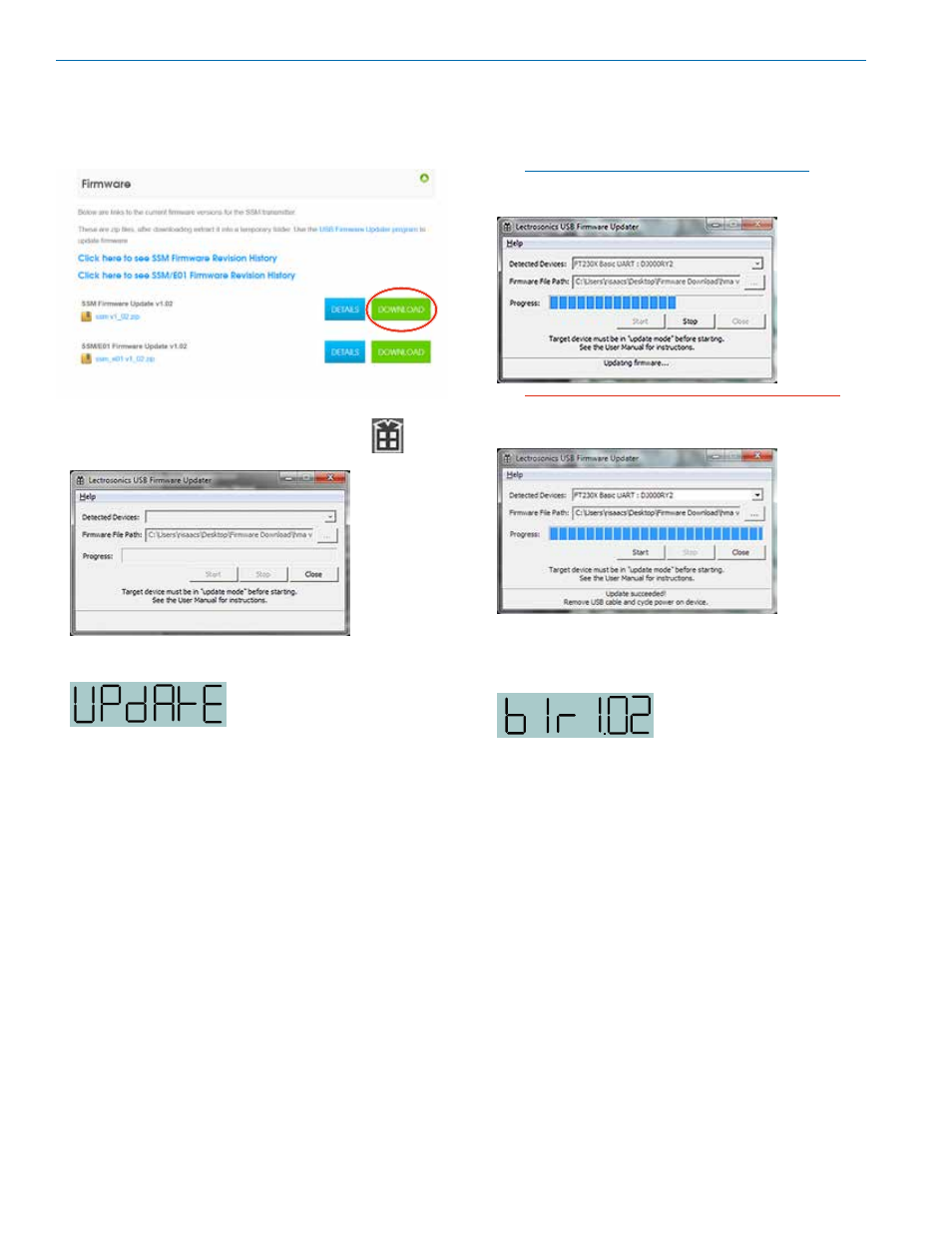

Step 7:
In Lectrosonics USB Firmware Updater, choose the
detected device, browse to local Firmware File and click
Start.
NOTE: It may take up to a minute or so for the
Updater to recognize the transmitter.
WARNING: Do not disrupt the microUSB cable during
updating.
The Updater alerts with progress and completion.
Step 8:
Once the Updater has com-
pleted, turn off the transmitter,
then turn it back on to verify
that the firmware version on
the transmitter LCD matches
the firmware version shown on
the web site. The firmware is
the second LCD display during
boot up sequence.
Step 9:
Close Updater and disconnect microUSB cable.
Step 3:
Refer to Step 1 to return to Firmware web page. Down-
load Firmware Update and save to a local file on your
PC for easy locating when updating.
Step 4:
Open Lectrosonics USB Firmware Updater.
Step 5:
Put the transmitter in UPDATE
mode by simultaneously
holding down the UP and
DOWN arrow buttons on the
transmitter control panel while
powering it up.
Step 6:
Using a microUSB cable, connect the transmitter to
your PC.
