– 10 –

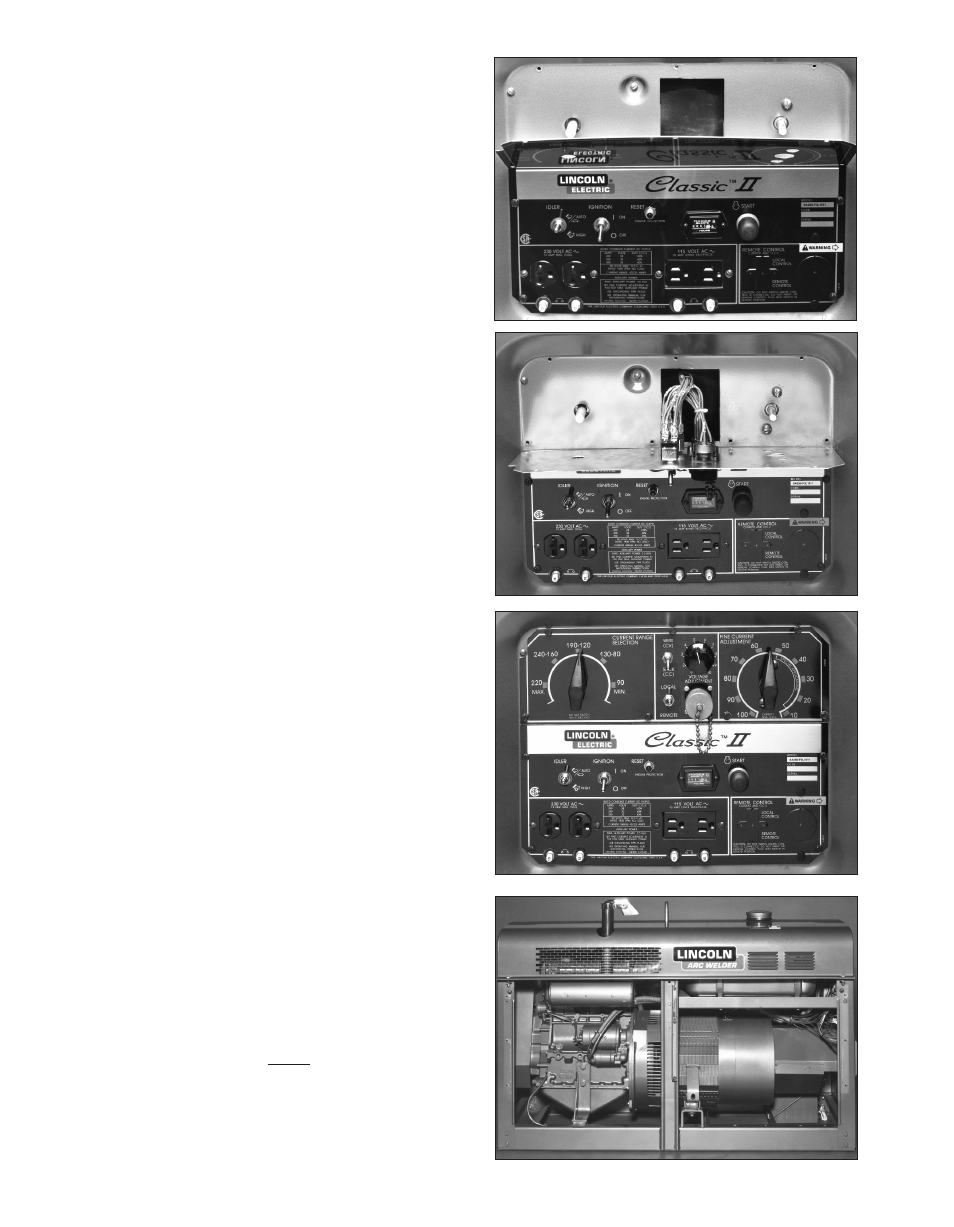

ASSEMBLE INTO CLASSIC SERIES
PIPELINER, SA-250 and 350SA INSTALLA-
TION SEQUENCE:
(For codes 10066, 10914)
1) Remove current range selector and fine current
adjustment control knobs from front of machine.
(small flat screwdriver and 3/32” Allen wrench.)
2) Remove 5 upper nameplate screws, or fastener
buttons.
3) Break-off upper half of machine nameplate.
Nameplate is scored for easy bending and break-
off.
4) Install control panel assembly. (Wiring connec-
tions will be made later).
5) Secure control panel assembly with (7) screws
from the mounting hardware packet.(5/16” Nut
Driver)
6) Reinstall current range selector and fine current
adjustment control knobs to front of machine.
(Small flat screwdriver and 3/32” Allen wrench).
7) (For Classic II models ONLY) Remove the side
panel. (3/8” Socket wrench).
