– 16 –

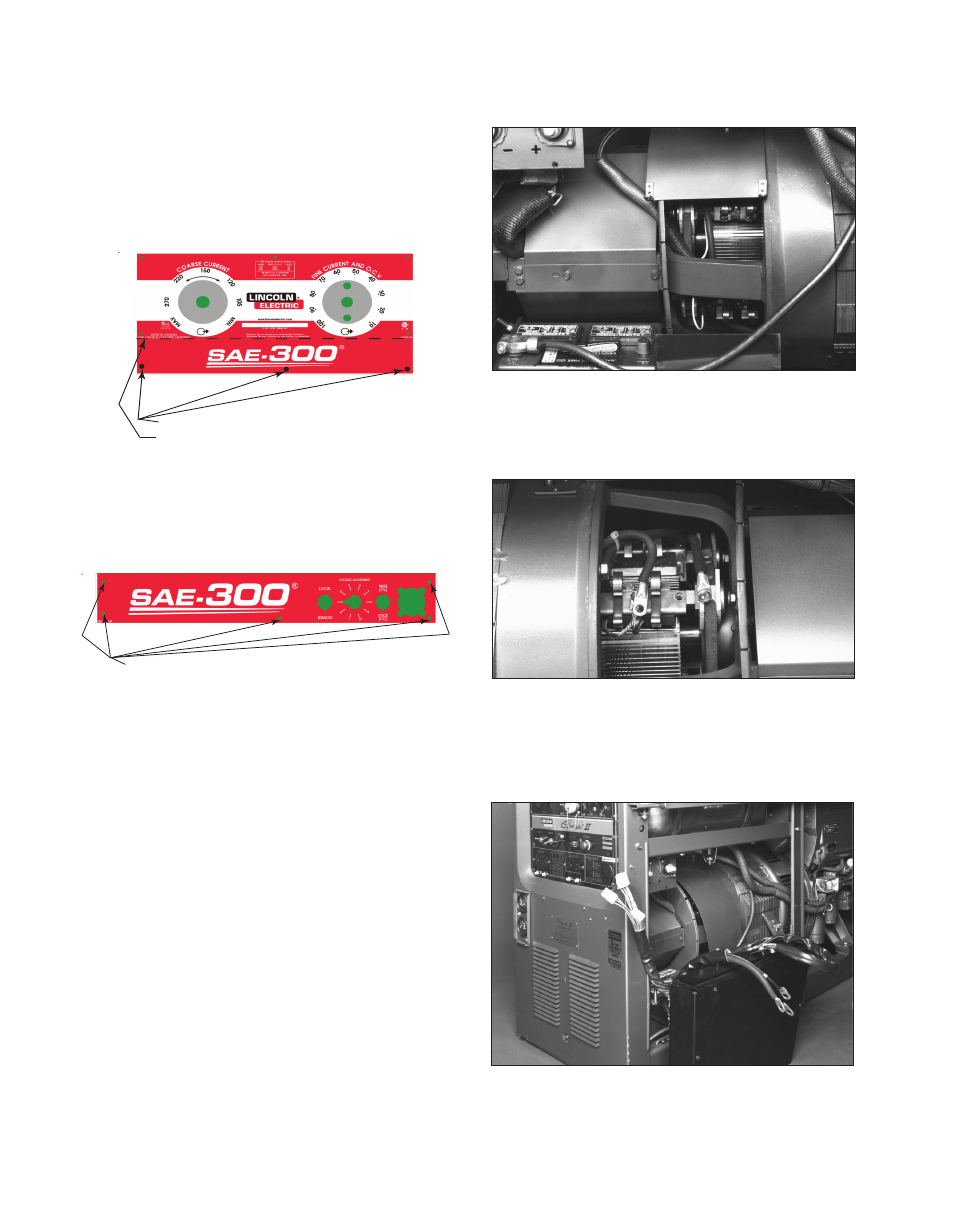

ASSEMBLY INTO SAE-300 WELDER:
INSTALLATION SEQUENCE:
(For Code 11806 )
1. Remove the bottom 3 mounting screws from the
upper control nameplate. Keep the screws for later
use to fasten the WFM nameplate. Once, the
screws have been removed snap / break off the
lower section of the nameplate (the section with the
welder name on it).
2. Attach the WFM nameplate to the upper control
panel on the welder below the original nameplate
with 5 mounting screws.
3. Remove the 2 toggle switches, amphenol & cap
and the potentiometer with knob from the original
control panel assembly. DO NOT disconnect the
wiring from the switches.
4. Insert the local / remote toggle switch (most wires
connected to it) first into the upper control panel on
the welder with the mounting tab down. Next mount
the potentiometer and secure the knob. Next mount
the cv / cc toggle switch with the mounting tab
down. Mount the amphenol and cap.
5. Remove 2 screws from brush wraparound cover.
Loosen and rotate the wraparound cover until neg-
ative brushholder is exposed. (Large flat head
screwdriver and pliers).
6. The negative brushholder is in the 11:00 position
looking at the control panel end of the generator.
Remove negative brushholder 5/16” bolt. (1/2”
Socket, ratchet, and small extension.)
7. Position Wire Feed Module control box next to the
right side of the machine (as shown). Place one
plain washer (provided in the mounting hardware
packet) over each mounting stud.
1. Remove 3 mounting screws. 2. Snap or Break off lower section on this dotted line.
1. Remove 3 mounting screws.
2. Snap or Break off lower section
on this dotted line.
5 mounting screws.
5 mounting screws.
