– 14 –

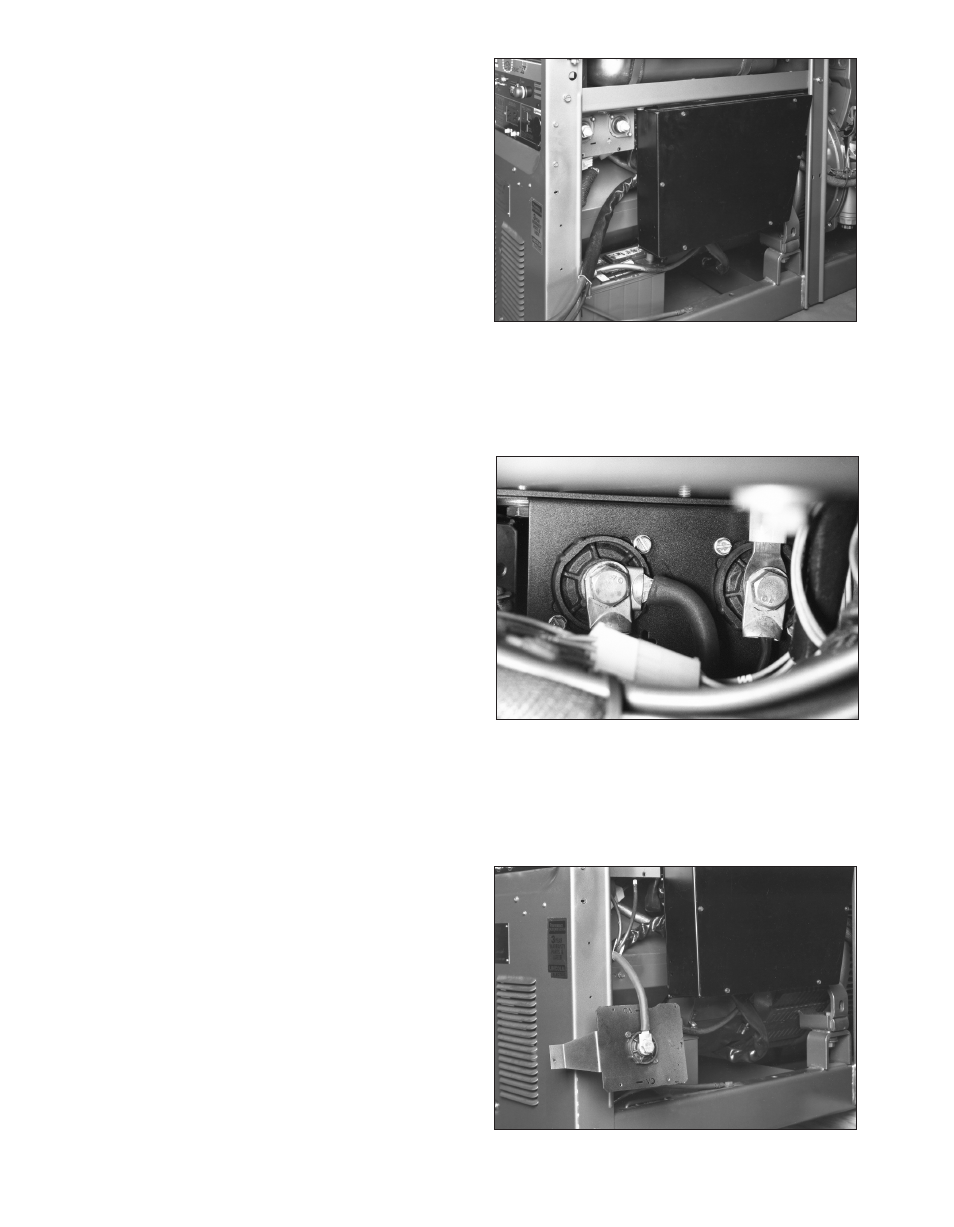

18) Position control box into place. On some models,
the control box must be maneuvered out, up and
back to clear the door latch catch. On Classic II
machines, make sure the battery cable is not
caught between the wire feed module and generator.
19) Install flat washer, lockwasher, and hex nut to
control box mounting studs and tighten. (9/16”
Socket, ratchet, and 9/16” open end wrench).
20) Remove both the positive and negative output
terminal bolts. (3/4” Socket wrench).
NOTE: On the Classic II machines, the weld out-
put terminals are located on the right side (facing
the control panel) of the machine under the side
access door. On all other machines the weld out-
put terminals are located on the left side (facing
the control panel) of the machine under the left
access door.
21) Using bolts from step 20, connect control box’s
positive and negative power cables and
machine’s positive and negative output cables to
the respective output terminals. Tighten bolts.
(3/4” Socket wrench).
NOTE: Use caution when routing the CV power
cables; ensure that there is adequate clearance
from any sharp surfaces.
22) Connect the remaining lead from the control box
to CV output terminal, using bolt supplied with the
output terminal assembly. Output panel leg attach-
es to the front of the machine (3/4” Socket
wrench).
