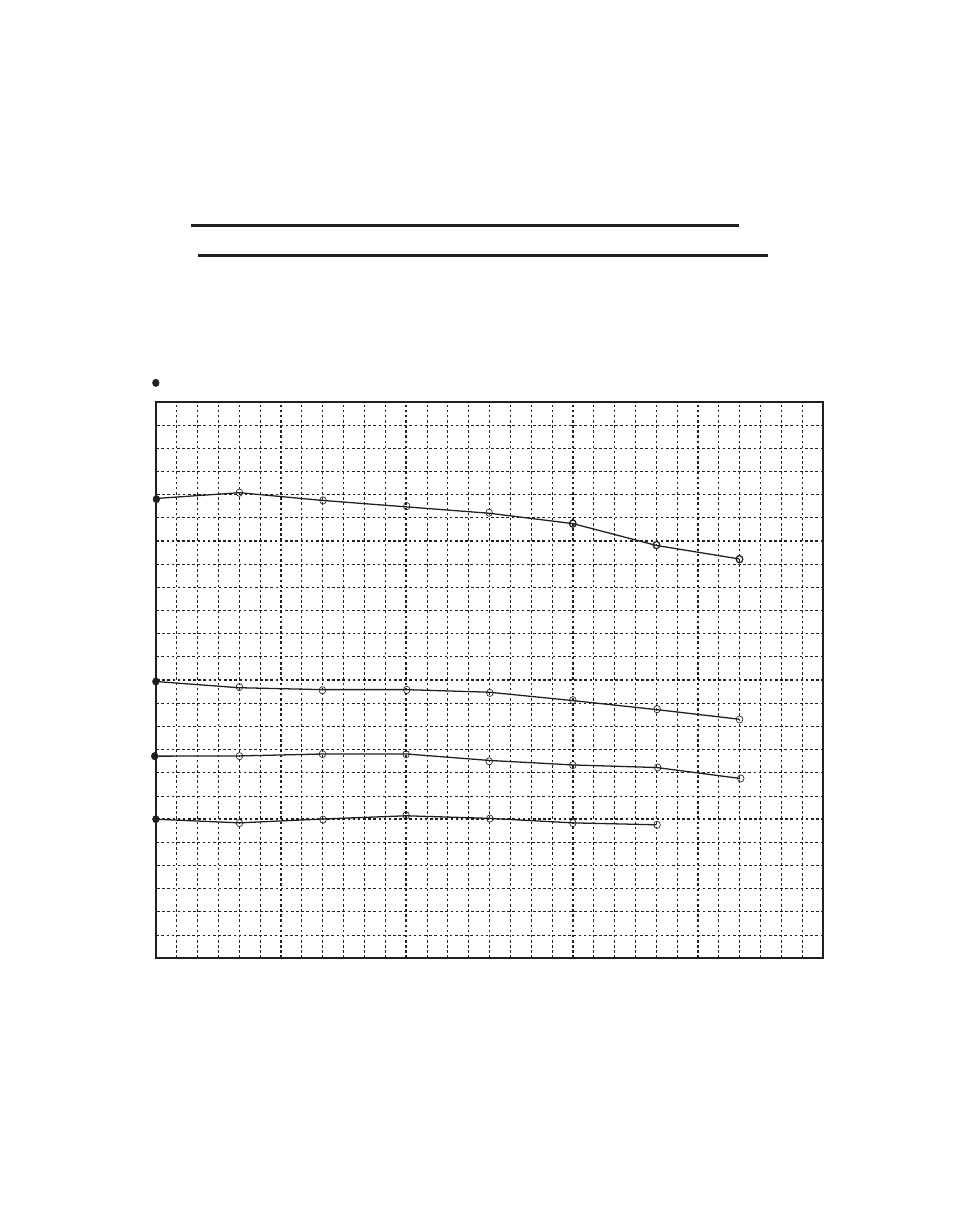

CLASSIC IIID, CLASSIC 300D, SA250 and SAE-300 (CODES 10890 and above) with WIRE FEED MODULE Reference Output Curves For Selected Open Circuit Volts (OCV) at Wire Feeder 0 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 5 10 15 20 25 30 35 40 45 50 55 60 LOAD AMPS (DC) LO A D V O LT S ( D C ) = WIRE FEEDER OCV
