– 13 –

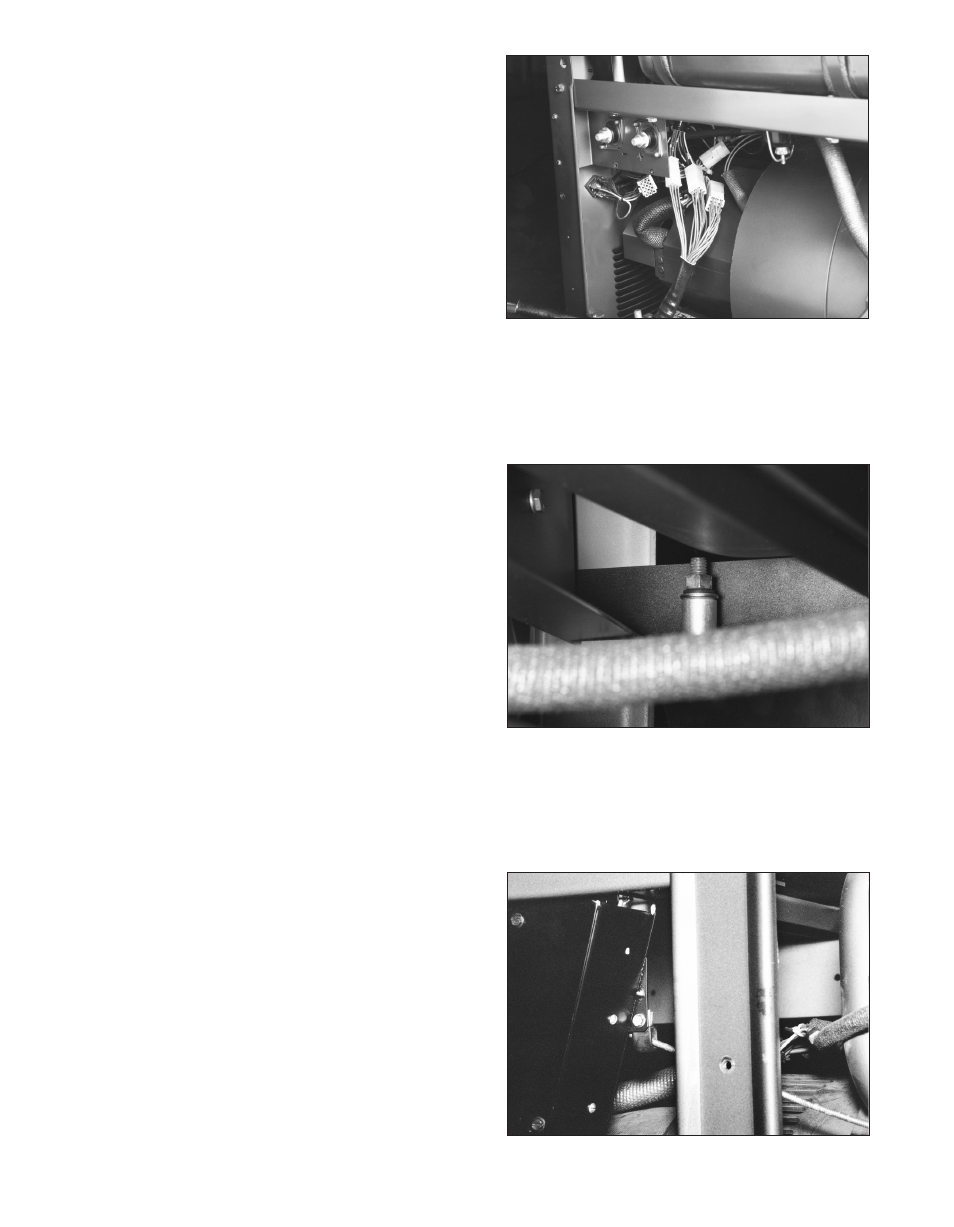

15) Locate and remove 12-pin jumper plug and install
12-pin connector from control box to 12-pin con-
nector. Connect control box 6-pin connector to
control panel 6-pin connector. Connect control
box 9-pin connector to control panel 9-pin con-
nector.
For Classic 300D with Codes (11547, 11548,
11572, 11573) and Pipeliner 200D Code 11591.
Remove U (BLUE) and 602C wires from flyback
bridge. See machine wiring diagram. Keep U and
602C lead terminals connected and insulate with
electrical tape.
16) For Classic I, III, IIID, 300D, 300G and SA250
(Codes 10889 and Below), 350 SA, Pipeliner
200D and 200G remove two (2) fuel tank hold
down bolts on the right side of the machine and
save hardware. (9/16” deep well socket, ratchet,
and 9/16” open end wrench.) For the Classic II
and SA250 (Codes 10890 and Above), do not
remove the fuel tank hold down bolts. On these
machines, the WFM mounts to the adjacent holes
with two (2) 1” spacers, flat washer, lock washer
and hex nuts, (provided in the mounting hardware
packet).
17) For the Classic I & III, the carburetor choke cable
must be unclamped at the frame. Reclamp at the
flange provided on the WFM.
