– 18 –
14. Mount the WFM using .62 spacers, flat washer,
lock washer and hex nuts provided in the mount-
ing hardware packet. Tighten all fuel tank bolts to
rail.

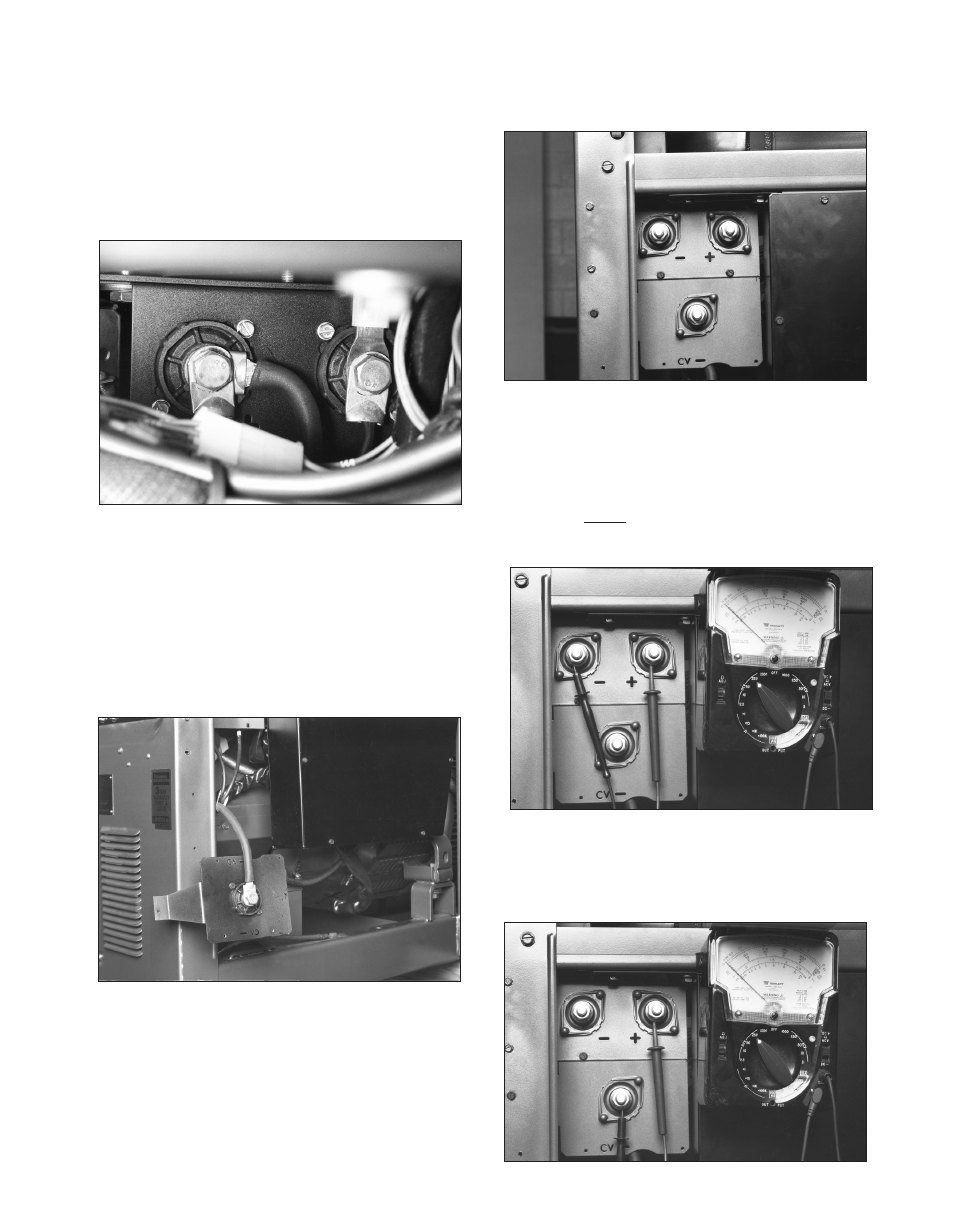

15. Remove both the positive and negative output ter-
minal bolts. (3/4” Socket wrench).
16. Using bolts from step 15, connect control box’s
positive and negative power cables and
machine’s positive and negative output cables to
the respective output terminals. Tighten bolts.
(3/4” Socket wrench).
NOTE: Use caution when routing the CV power
cables; ensure that there is adequate clearance
from any sharp surfaces.
17. Connect the remaining lead from the control box
to CV output terminal, using bolt supplied with the
output terminal assembly. Output panel leg attach-
es to the front of the machine (3/4” Socket
wrench).
18. Drive three (3) self-tapping screws into output
panel. (5/16” Nut driver or socket wrench).
NOTE: The CV outout terminal assembly mounts
under the weld output terminals on all machines.
19. With the CC/CV switch set to CC, start the engine
and check the open circuit voltage on the output
terminals. The voltage should be 80 to 100 volts
with the thermostat and range switch set at maxi-
mum. NOTE: OCV may be slightly higher when
the unit is cold. (Voltmeter)
20. Switch the CC/CV switch to CV and check the
voltage between the Positive output terminal and
the CV output terminal. The voltage should be 45
to 55 volts at maximum output position and 7 to
12 volts at minimum output position. (Voltmeter)
