B-2

OPERATION

B-2

MAXsa™ 10 CONTROLLER

PRODUCT DESCRIPTION

GENERAL PHYSICAL DESCRIPTION

• The MAXsa™ 10 CONTROLLER is a user interface

and a feeder controller. The control is used to set

all welding parameters and control any travel mech-

anisms. High-speed digital cables connect the con-

trol, wire drive, and the Power Wave power source

together.

• The MAXsa™ 10 CONTROLLER is a self-con-

tained control box designed to control the entire

weld arc at one location.

• The user interface utilizes alphanumeric displays

for advanced text messaging providing the end

user with an intuitive interface allowing for easy set

up and real-time control of all welding parameters.

• An eight button memory section has been included

which provides easy storage and recall of stored

welding parameters.

• The user interface can be removed from the control

box and connected as a Pendant for remote control

near the arc.

GENERAL FUNCTIONAL DESCRIPTION

• The MAXsa™ 10 CONTROLLER is one of the most

versatile user interfaces ever created. Easy to use

features make it a snap to adjust the arc for specific

preferences.

• The user interface brightly displays essential weld-

ing information. Use it to quickly adjust weld set-

tings, arc starting parameters, arc end parameters

and set-up information.

• The memories allow for up to eight weld schedules

to be stored and quickly recalled. The user inter-

face allows for multiple levels of limits and lockouts.

• Digital communications to the power source provide

the most accurate and reliable operation possible.

• When the MAXsa™ 10 CONTROLLER is coupled

to the Power Wave

®

AC/DC 1000 SD welding

power source, the result is a welding system with

the best arc performance on the market.

R E C O M M E N D E D P R O C E S S E S A N D

EQUIPMENT

• The MAXsa™ 10 CONTROLLER is best suited for

submerged arc welding only with the Power Wave

®

AC/DC 1000 SD, the MAXsa™ 22 or the MAXsa™

29 Feed Heads.

• SAW

COMMON BASIC EQUIPMENT PACKAGES

Basic Package

• K2803-1

Power Wave

®

AC/DC 1000 SD

• K2370-2

MAXsa™ 22 Wire Drive

• K2814-1

MAXsa™ 10 CONTROLLER / User

Interface

• K2683-xx

Control Cable (5 pin – 5 pin) - power

source to MAXsa™ 10.

• K1785-xx

Control Cable (14 pin – 14 pin) -

MAXsa™ 10 to Wire Drive.

Optional kits

• K2312-2

MAXsa™ 29 Wire Drive (for fixture

builders).

• K2311-1

Motor Conversion Kit (to convert exist-

ing NA-3/NA-4/NA-5 wire feeder gear

boxes).

WIRE FEEDER

FLUX HOPPER

CONNECTOR

TRAVEL

CARRIAGE

CONNECTOR

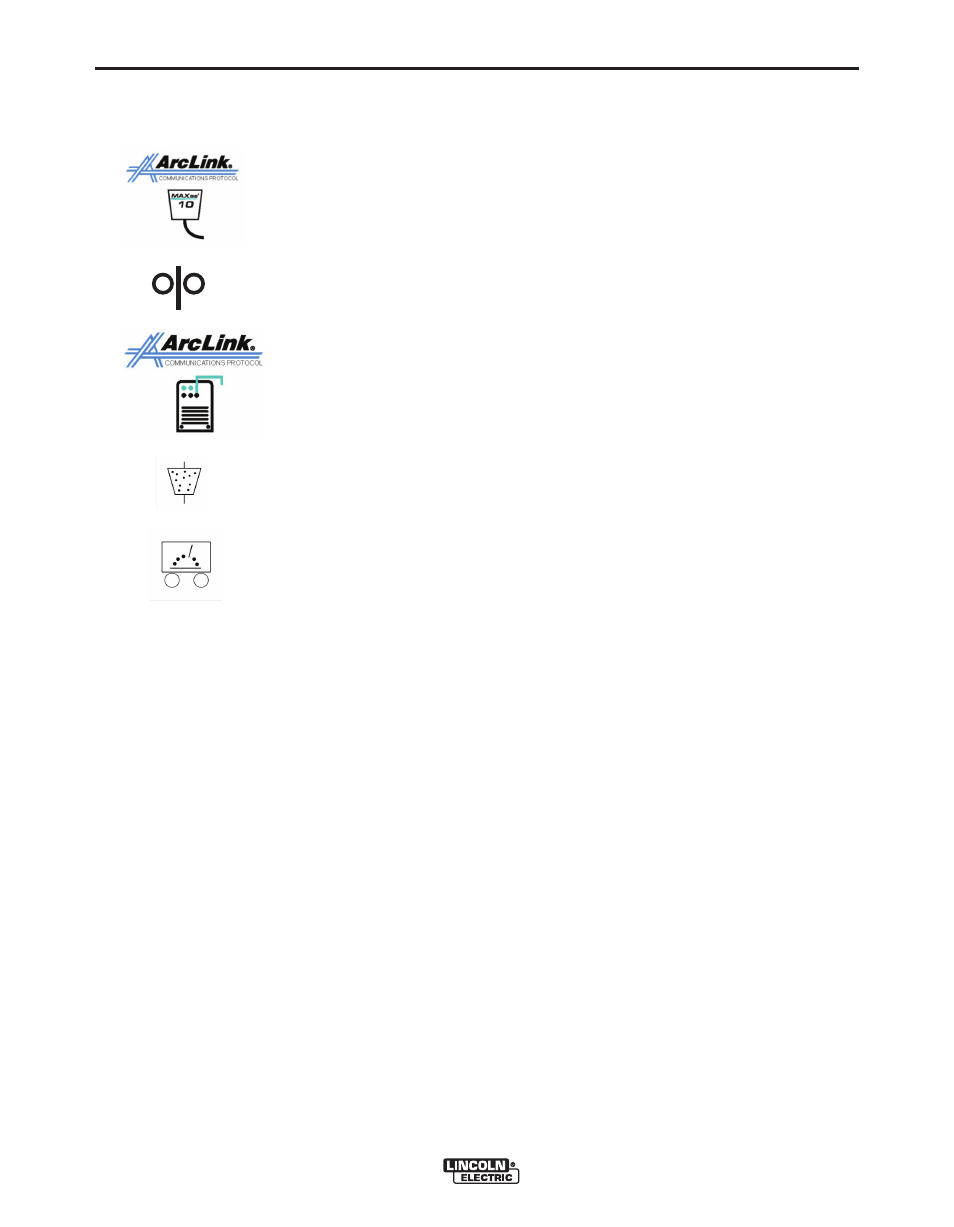

GRAPHIC SYMBOLS THAT APPEAR ON

THIS MACHINE OR IN THIS MANUAL

CONTROLLER

ARCLINK INPUT

CONNECTOR

PENDENT

ARCLINK

CONNECTOR
