B-9 OPERATION B-9
The Setup Menu provides access for configuring user preferences, which are generally only set at installation.
The user preferences are grouped as shown in the following table.
MAXsa™ 10 CONTROLLER
SETUP MENU FEATURES
ACCESSING THE SETUP MENU
1. ACCESS
To access the Setup Menu, Press the Left Button and
R i g h t B u t t o n s i m u l t a n e o u s l y . T h e S e t u p M e n u
Indicator will light and the lower display will read as
shown below.
Note: The Setup Menu cannot be accessed during
welding, or if a fault is displayed. To resume welding,
exit the Setup Menu.
2. PREFERENCE SELECTION
Scroll through the Preference list by rotating the
Control Knob. Press the Right Button to edit the select-
ed preference.
3. PREFERENCE CHANGE
Scroll through the preference options by rotating the
Control Knob. Change the preference setting by press-
ing the Right Button. To cancel, press the Left Button.
4. EXIT
To exit the Setup Menu, press both buttons simultane-
ously or select P.0 and press the Left Button. Sixty
seconds of inactivity will automatically exit the Setup
Menu.
Note: If a product is missing any of the preference
options listed below, a software update may be needed
from www.powerwavesoftware.com.

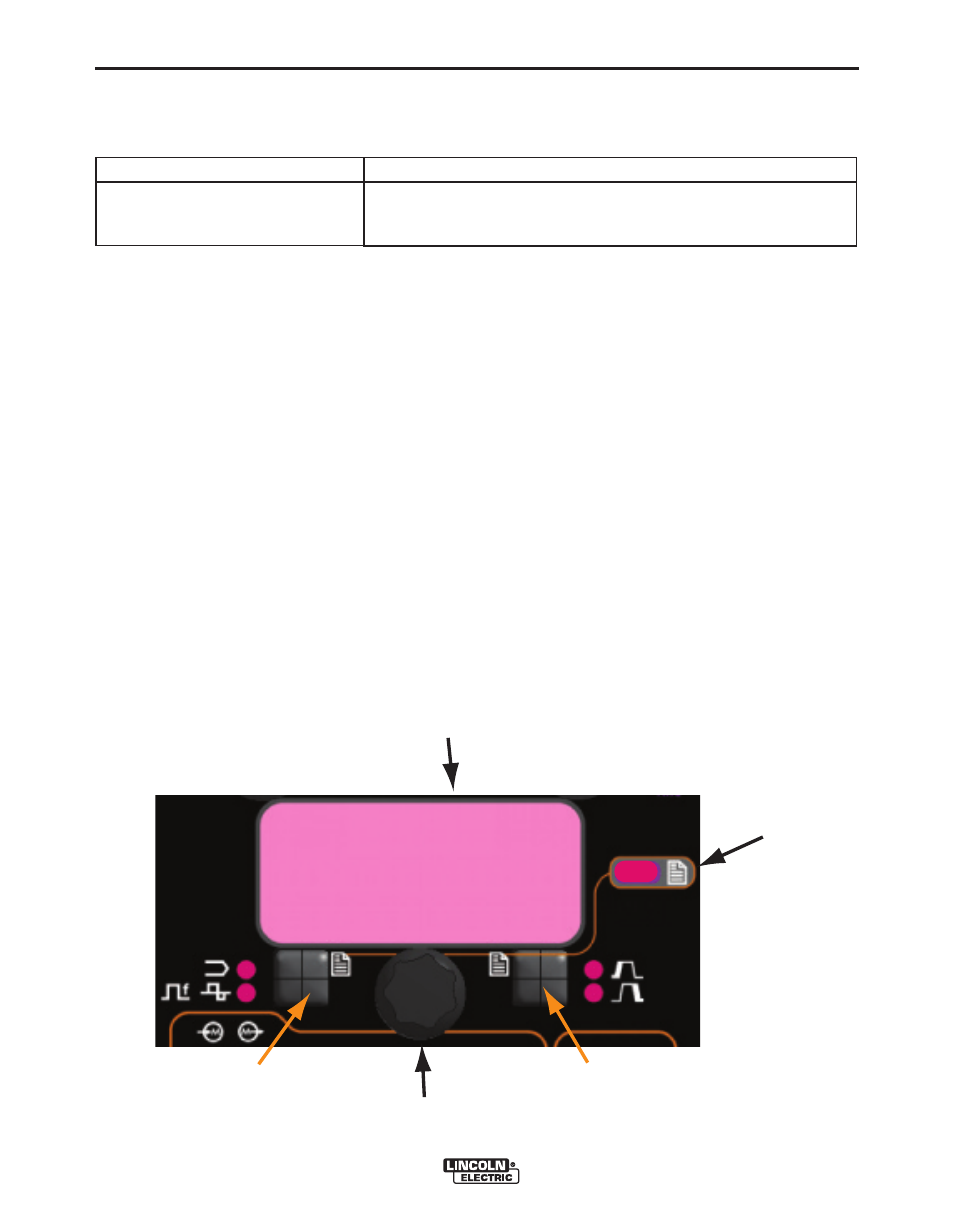

FIGURE B.7 - SETUP MENU
P
.
0
Exit
User Prefs
Setup Menu
Indicator
Mode Select
Panel (MSP)
Left Button
Control Knob
Right Button
PARAMETER
P.1 through P.99
P.101 through P.199
P.501 through P.599
DEFINITION
Unsecured Parameters (always adjustable)
Diagnostic Parameters (always read only)
Secured Parameters (only accessible with Weld Manager)
