B-18

OPERATION

B-18

The Limits feature allows the operator to set minimum

and maximum values for various parameters depending

on the Weld Mode selected.

Each memory location may have a different set of limits,

even if the Weld Mode is the same. For example:

Memory Location 1 can be set for a maximum wire feed

speed of 140”/min; Memory Location 2 may be set for a

minimum of 100”/min and a maximum of 160”/min and

Memory Location 3 may have no WFS limit set.

Parameters are constrained by the machine limitations or

by memory limits. When the Memory Limits are enabled

the parameter will flash if an attempt is made to set a

value outside of the prescribed limit (if less than the

machine capabilities). The parameter will not flash if an

attempt is made to exceed the machine limits.

NOTE: Weld Modes cannot be selected through the

Limits Setup Menu. They must be chosen and

saved before entering the Limits Menu.

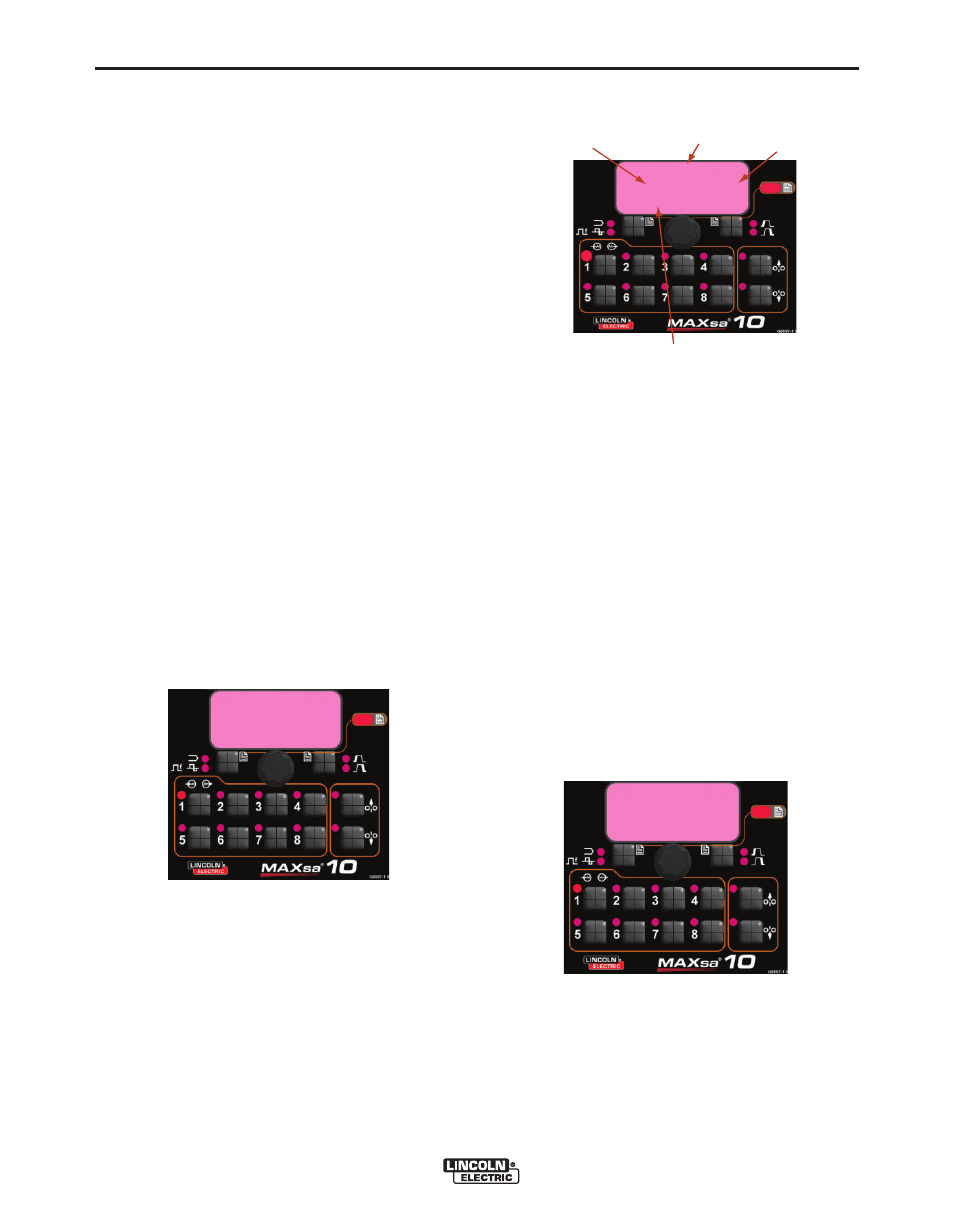

SETTING LIMITS

1. Press and hold the desired Memory Button until

the LED for that location begins to blink rapidly.

• The MSP Display will read:

2. After 2 seconds the display will change to show the

following items:

• Memory Value

• High Limit

• Low Limit

• Parameter Name

3. The Parameter Name on the MSP Display will

flash to indicate it is ready to be changed. If no lim-

its were previously set, the High and Low values

are the limits of the Power Source

• Press the Arc Start/End Options button to select

that parameter.

• Use the Mode Select Panel Control to adjust the

High Limit (flashing).

• Press the Arc Start/End Options button.

• Use the Mode Select Panel Control to adjust the

Value (flashing).

• Press the Arc Start/End Options button.

• Use the Mode Select Panel Control to adjust the

Low Limit (flashing).

• Press the Arc Start/End Options button.

• Use the Mode Select Panel Control to select

another Parameter Name (flashing) and repeat

the above sequence until all Limits are set.

4. Press the selected Memory when all limits are set

to desired values. The MSP Display will read:

• Use the Weld Mode Select or the Arc Start/End

Options button to either save (yes) or discard

(no) the changes.

MAXsa™ 10 CONTROLLER

OPTIONAL LIMIT SETUP

Memory 1

Set Limits

200

Hi=1050 Lo= 200

Weld Amps

Set High

Limit

Value

Low Limit

Set Low

Limit

Parameter

Name

Save

Limits

Yes

No
