12 ‘05-‘09 Tacoma (W/O Hitch) - 3” Kit 5603

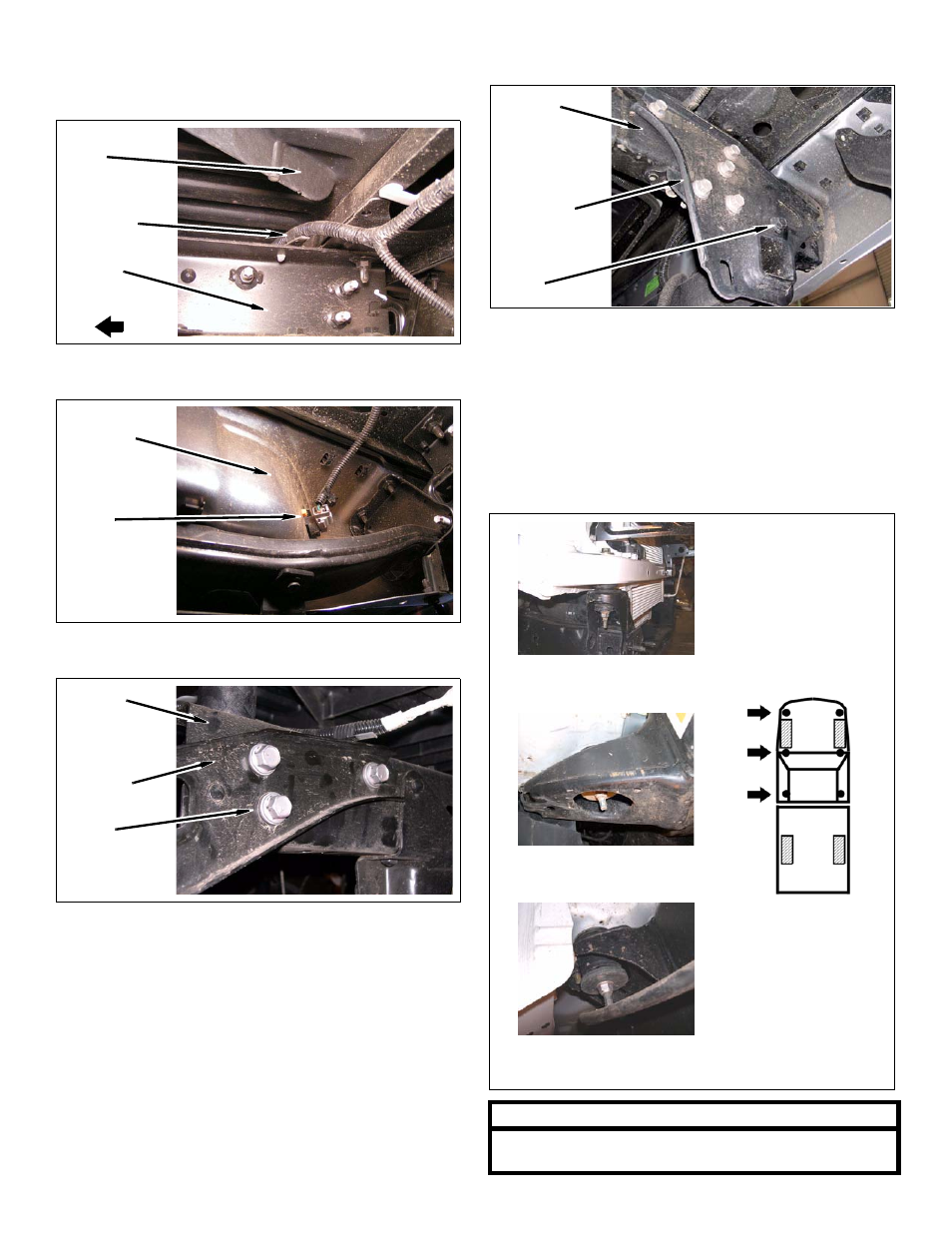

2. Rear bumper
a. Remove rear bumper wire harness from driver
and passenger frame.
b. Remove two license plate lights from rear
bumper.
c. Without O.E. Trailer Hitch: Remove six bolts
and rear bumper from frame.
Wire
Harness
Front
Frame
Bed
Rear
Bumper
License Plate
Light
Frame
Bumper
Bracket
Bolts
d. With O.E. Trailer Hitch: Remove four bolts and
rear bumper from O.E. trailer hitch brackets.
Install Kit
Cab
1. Lift cab
a. Loosen, but DO NOT REMOVE, cab mounting
bolts on driver side.
NOTE
The number of cab mounting bolts may vary with the
length of the cab.
Frame
Trailer
Hitch
Brackets
Bolts
Cab Mount
(Core Support)
Cab Mount
(Mid Cab)
Loosen Bolts
At These Mounts
Cab Mount
(Rear Cab)
