TOYOTA 5603 - Manual (Page 21)

21 ‘05-‘09 Tacoma (W/O Hitch) - 3” Kit 5603

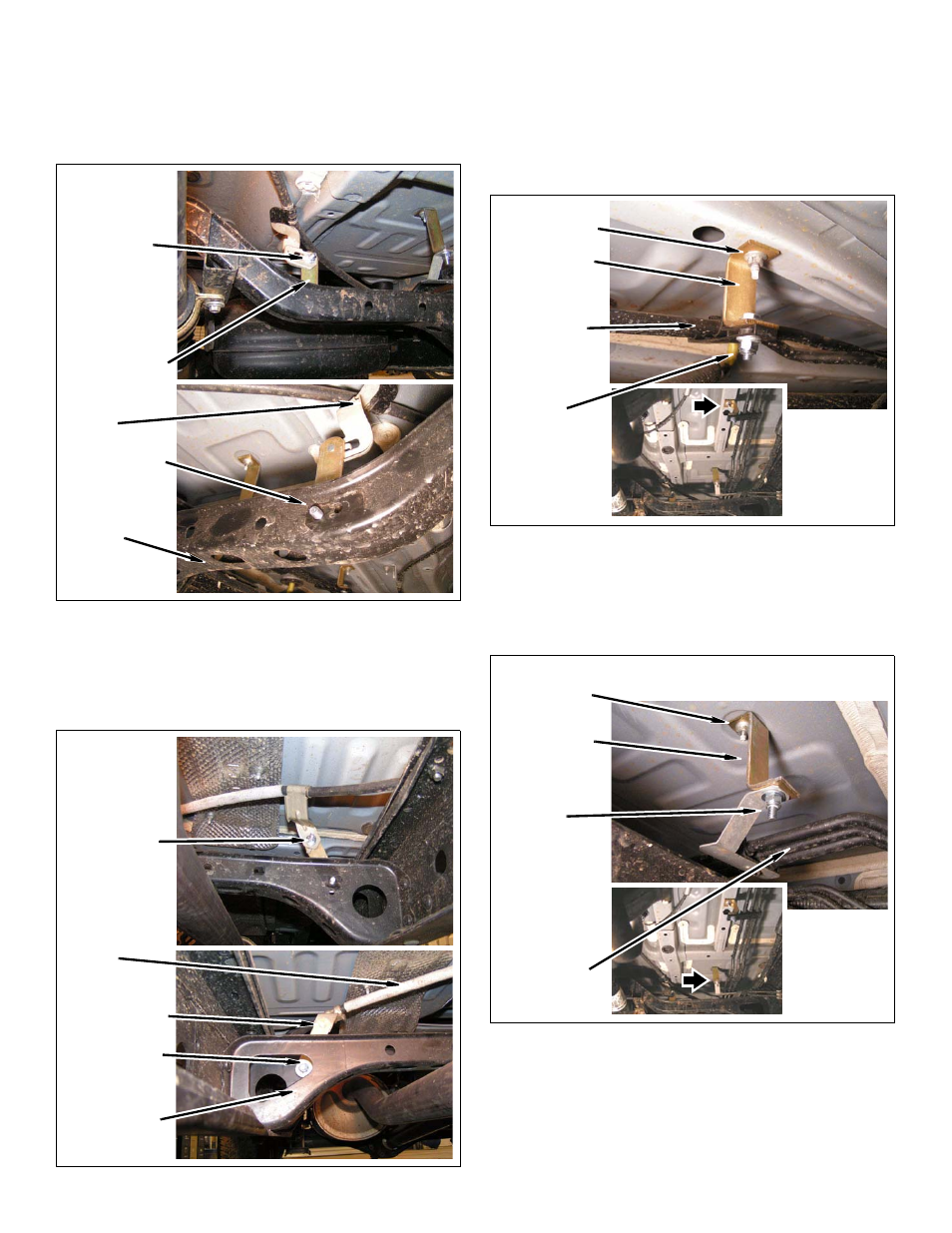

Underside of Vehicle
1. Parking brake cable
a. Install kit bracket (3” w/ stud) to driver side
crossmember with factory bolt.
b. Install driver side parking brake cable to kit
bracket with kit nut (1/4” Nylock) and kit
washer (1/4” SAE).
c. Install kit bracket (3” w/ stud) to passenger side
crossmember with factory bolt.
Kit Bracket
(3” W/ Stud)
Factory Bolt
Kit Bolt
(1/4” x 1”),
Kit Washer
(1/4” SAE),
Kit Nut
(1/4” Nylock)
Parking Brake
Cable
Crossmember
Kit Bracket
(3” W/ Stud)
Factory Bolt
Kit Bolt
(1/4” x 1”),
Kit Washer
(1/4” SAE),
Kit Nut
(1/4” Nylock)
Parking Brake
Cable
Crossmember
d. Install passenger side parking brake cable to kit
bracket with kit nut (1/4” Nylock) and kit
washer (1/4” SAE).
2. Fuel lines
a. Install kit bracket (2” stand off) to driver side
stud with factory nut.
b. Install fuel line bracket to kit bracket (2” stand
off) with kit bolt (1/4” x 1”), two kit washers (1/4”
SAE) and kit nut (1/4” Nylock).
c. Install kit bracket (3” Z-shaped) to driver side
stud with factory nut.
d. Install fuel line bracket to kit bracket (3” Z-
shaped) with kit bolt (1/4” x 1”), two kit washers
(1/4” SAE) and kit nut (1/4” Nylock).
Driver Side
Looking Back
Stud &
Factory Nut
Kit Bracket
(2” Stand Off)
Kit Bolt
(1/4” x 1”),
Kit Washer
(1/4” SAE),
Kit Nut
(1/4” Nylock)
Fuel Lines
Driver Side
Looking Back
Stud &
Factory Nut
Kit Bracket
(3” Z-Shaped)
Kit Bolt
(1/4” x 1”),
Kit Washer
(1/4” SAE),
Kit Nut
(1/4” Nylock)
Fuel Lines
