30 ‘05-‘09 Tacoma (W/O Hitch) - 3” Kit 5603

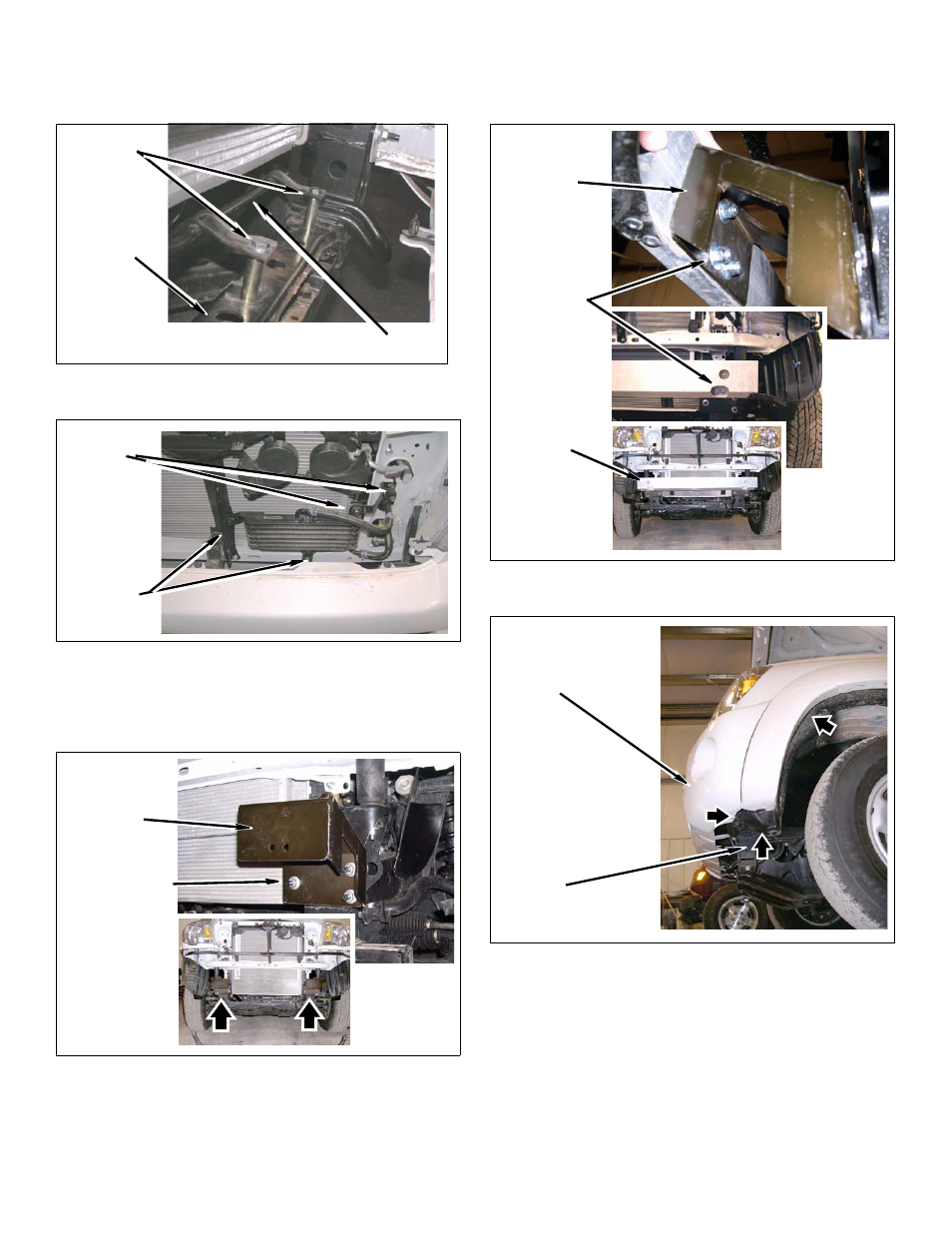

c. Install two kit extension (sleeve), two kit bolts
(8mm x 50mm), two kit washers (8mm flat), and
automatic transmission cooler lines to lower
core support.
d. Install automatic transmission cooler onto core
support with four bolts.
2. Front bumper
a. Apply a small amount of kit Loctite® to six fac-
tory studs and install kit brackets (front bumper)
to frame with six factory nuts.
Kit Bolts
(10mm x
50mm),
Kit Washer
(10mm Flat)
Auto Trans Lines
Lower
Core
Support
Bolts
Bolts
Kit Bracket
(Front
Bumper)
Factory
Studs & Nuts
b. Apply a small amount of kit Loctite® to six kit
bolts (3/8” x 1”) and install front bumper to kit
brackets (front bumper) with twelve kit washers
(3/8” USS) and six kit nuts (3/8” Nylock).
c. Install front bumper cover to vehicle with six fac-
tory screws.
Kit Bolts
(3/8” x 1”),
Kit Washers
(3/8” USS),
Kit Nuts
(3/8” Nylock)
Front
Bumper
Kit Bracket
(Front
Bumper)
Front
Bumper
Fascia
Screws
