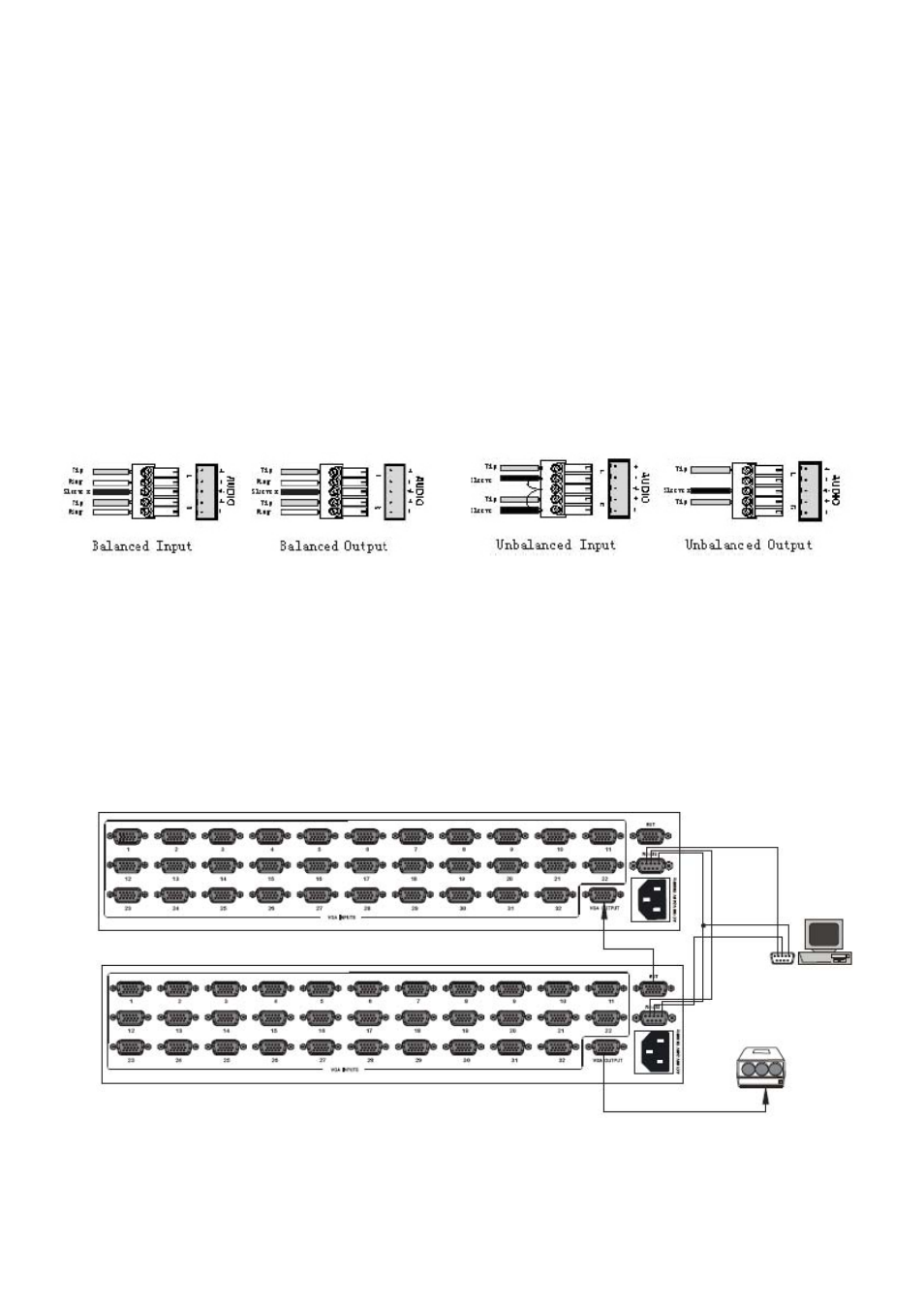

The unbalanced connection transmits signals only with one cable. Without counteraction, it can be inter-
fered more easily. Accordingly, it is adopted for household appliance or some cases with low technical de-
mand. Take the audio signal line for example: 1.Unbalanced: pin “G” connect to SLEEVE, pin “+” connect
to TIP, pin “–” connect to pin “G”; 2.Balanced: pin “G” connect to SLEEVE, pin “–” connect to RING, pin
“+” Connect to TIP.
To select which connection is up to the interface of the device. When available, the balanced
connection is the first choice. Before connection, please read the command or relevant demand in the user
manual carefully. In some cases, maybe there is balanced in source signal end but unbalanced in the destina-
tion end. If in a nonstandard case, it is done to connect balanced for the balanced end and unbalanced
4.0 Stacking The Switcher
When stacking the vga matrix switchers the slave matrix inputs 1-32 become inputs 33-64, that also goes for
the 3rd matrix slave making inputs 1-32 to 65-96. If all 3 matrix swtichers are stacked it would make the
unit 96x1.
