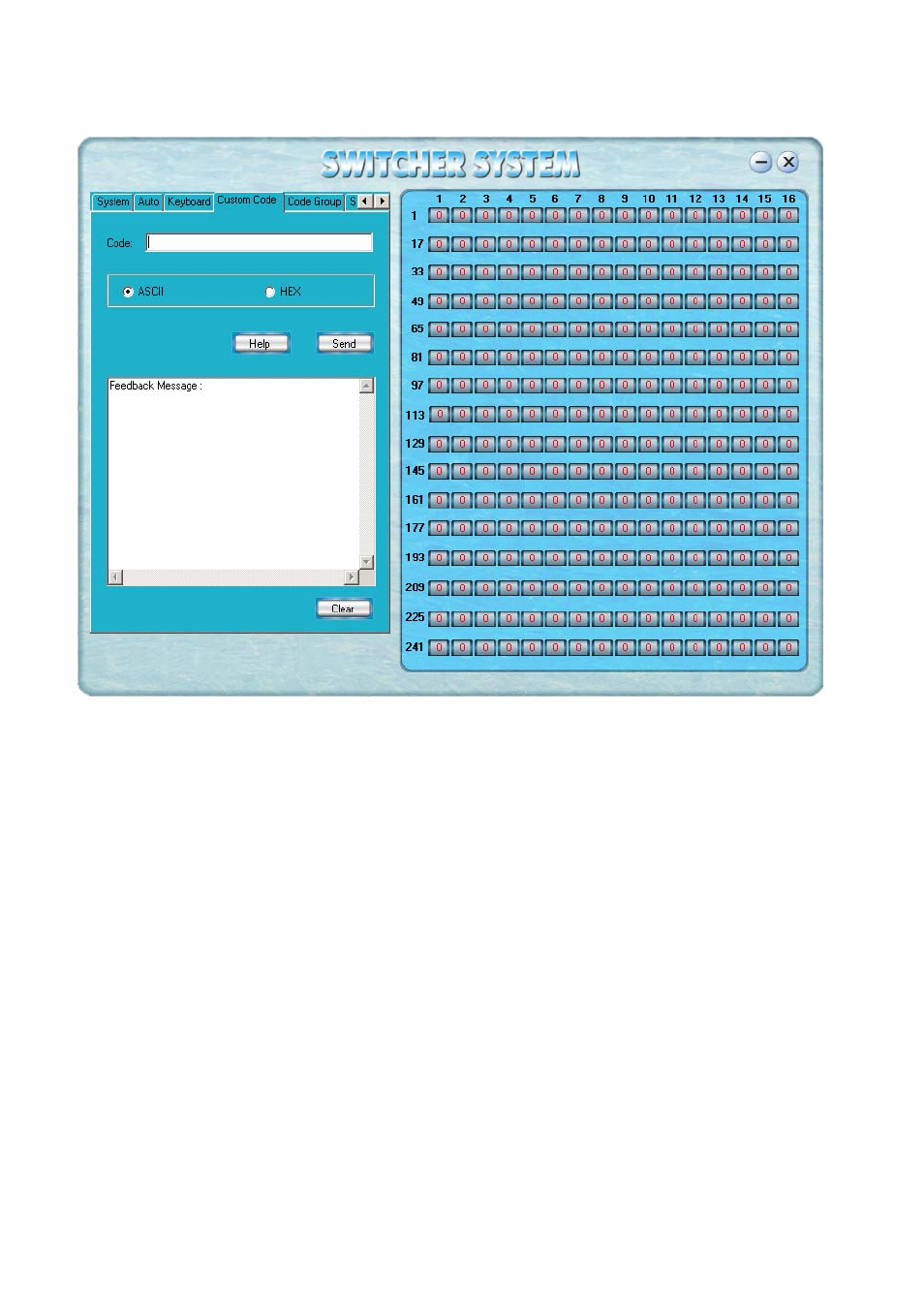

6.3 Custom Code Tab
Select between ASCII and HEX format command codes ( for command details, please refer to section)
Help: Displays the list of commans codes.
Send: Sends out the typed commans codes.
For example, to transfer the video and audio signals from the input channel No.1 to the
output channel No.7, and the audio signals from the input channel No.2 to the output channel
No.4, just perform the following steps below.
1. Select the “ASCII” as the command codes format;
2. Input the command codes “1B7.2A4.” at the blank of Codes;
3. Click the button “Send” to perform the commands.
