Paxton Superchargers 5.2 Dodge Ram - Manual (Page 15)

P/N: 4809625
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25NOV03 v2.0 97-01 5.2/5.9 Dodge(4809625v2.0)
4-5

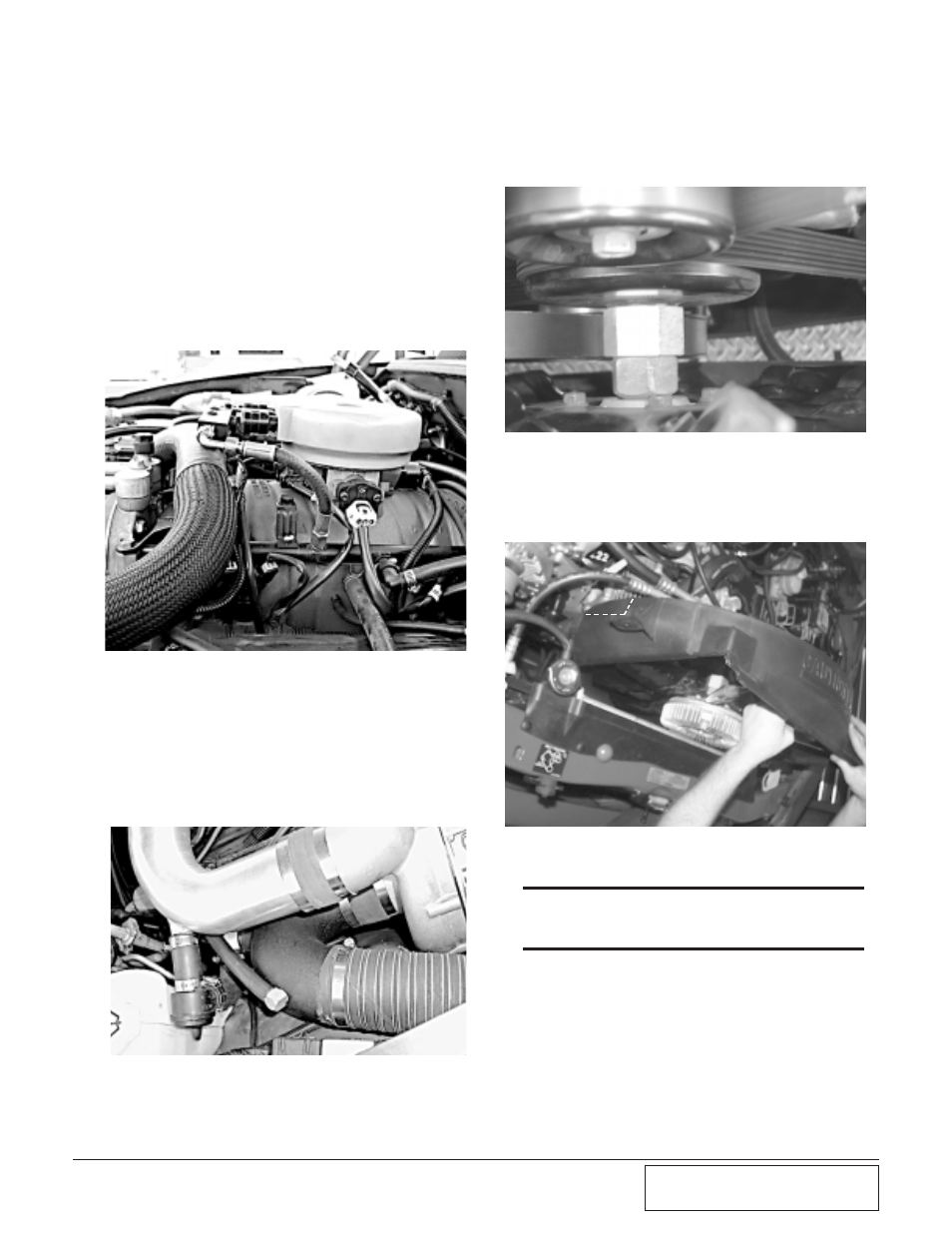

Fig. 4-r
E. Attach the fuel enrichment line to the fuel
fitting on the driver’s side fuel rail. You
will have to remove a plastic cap and a
schraeder valve to make this connection.
(See Fig. 4-q.)
4-11 FAN AND FAN SHROUD
REINSTALLATION
A. Install the new fan spacer to clear the new
lower crank pulley. (Fig. 4-s.)
C. Connect the air dicharge tube to the bon-
net.
D. Connect the other end of the discharge
tube to the supercharger.
B. Attach the bonnet with the supplied bolt
and washer.
4-10 COMPRESSOR BYPASS
A. Attach the compressor bypass hose to the
fitting on the air intake duct. (The other
hose will attach to the air discharge duct .)
Route the vacuum hose toward the driver
side. (See Fig. 4-r.)
Fig. 4-q
Fig. 4-s
Fig. 4-t
***NOTE***
Area to be trimmed is represented by the white dashed
line.
C. You will also need to trim approximatly
1-1/2" off the bottom of the fan shroud to
clear the crank pulley.
B. You will need to trim this area on the fan
shroud to clear the supercharger belt idler
pulley. (See Fig. 4-t.)
