Frequency
Channel
Change using
Bar graph representing
all the found channels.
Color according to
checkmarks
List of measurements
with pass/fail indicators
Parameters of the
selected channel
1.3. Throughput test
This function measures the upstream and
downstream rates of the DOCSIS network.
The rate measurements are performed using an
FTP server that must be configured by the user
(URL, file, get/put, user, password). See section 1.5
Setup.
This feature shows the IP modem within the DOCSIS
network and the maximum speed negotiated (DS/
US). When you start the speed test, the speed value
is constantly updated.
1.3.1. Main window

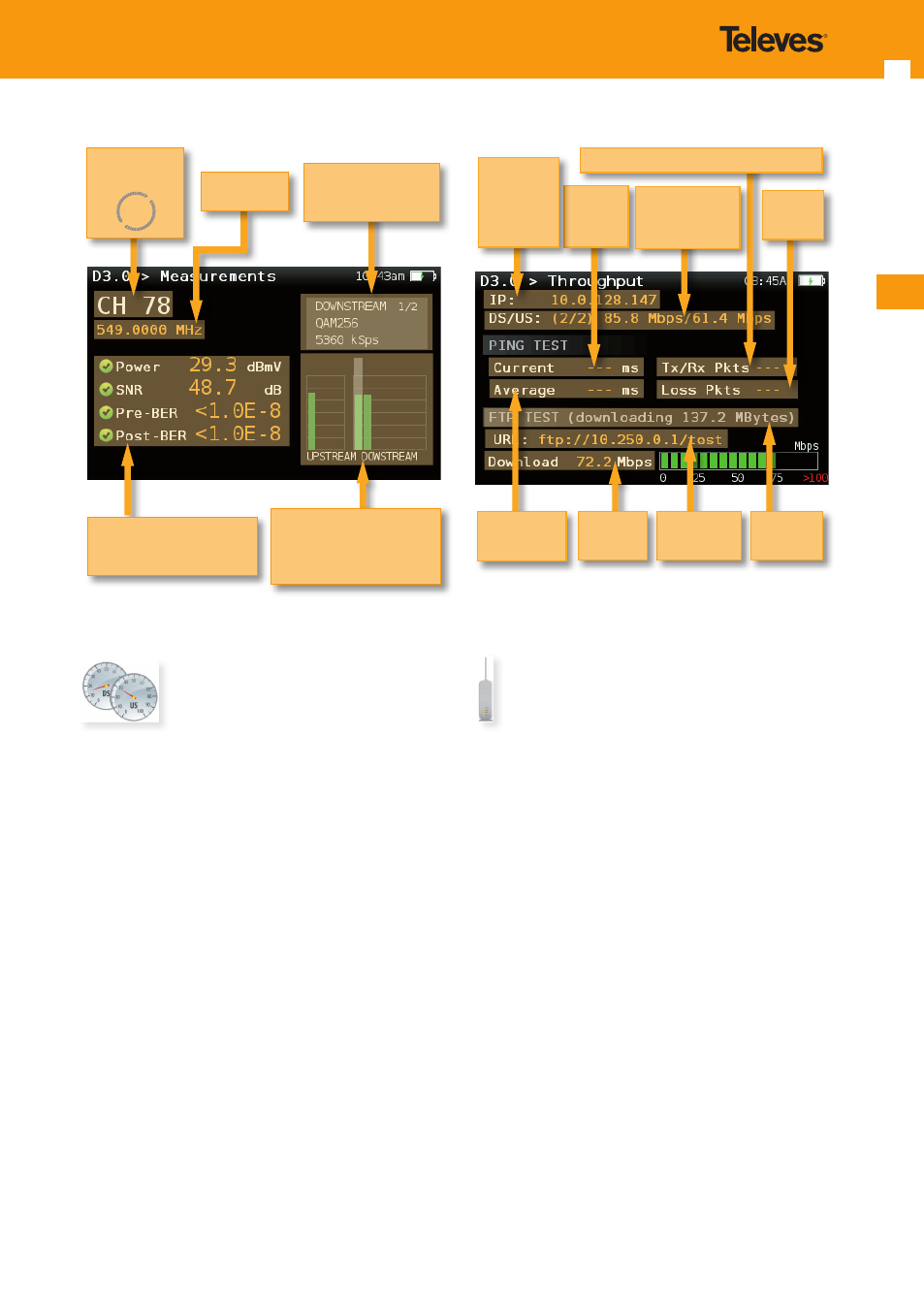

Below is a capture of a Throughput Test window
with a brief explanation of its features.
URL set by
the user
Transfer
status
Transfer
speed
Current
PING
delay
Average
PING delay
Transmitted and received packets
Modem IP
within the
DOCSIS
network
Maximum DS
and US speed
negociated
Lost
packets
1.4. Modem Emulation
This function sets the H30 to be used as a DOCSIS
modem and to use it to give to another device a
connection to the DOCSIS network via the H30’s
ethernet port.
This feature shows the connection status of the
modem as well as the instantaneous speed and the
size of the data sent through the modem.
1.4.1. Main window
Below is a capture of a Modem Emulation window
with a brief explanation of its features.
