System scan – Televes Serie H-30 User Manual
Page 13
EN
13
Channel
plan
Frequency
Channel
Change using
Bar graph of main
measurement.
Color according to
checkmarks
List of measurements
with pass/fail indicators
2.2. Setup
Press
to change the Channel Info options.
- Tuning: Channel, Frequency
- A/D: Auto, Analog, Digital
- Parameters:
Bandwidth: Auto, 6 MHz, 7MHz, 8MHz
Symbol Rate: Auto, 6111, 5156, Other
Constellation: Auto, 4QAM, 16QAM,
32QAM, 64QAM, 128QAM, 256QAM
Standard: ITU J.83-A, J.83-B, J.83-C
DFE: OFF, ON.
- Save
datalog:
Saves
the
current
measurements. You can see the datalogs
using the remote control application.
3. System Scan
This function scans the selected channel plan and
detects every existing analog and digital channel
in real time to determine the overall frequency
response of the system.
The scan measurement leverages the location
based thresholds to clearly show whether or
not signal levels comply with the cable system’s
specifications with their green, yellow and red bars.
This gives an easy-to-understand real-time view of
the system, including the BER and MER values of
the selected channel.

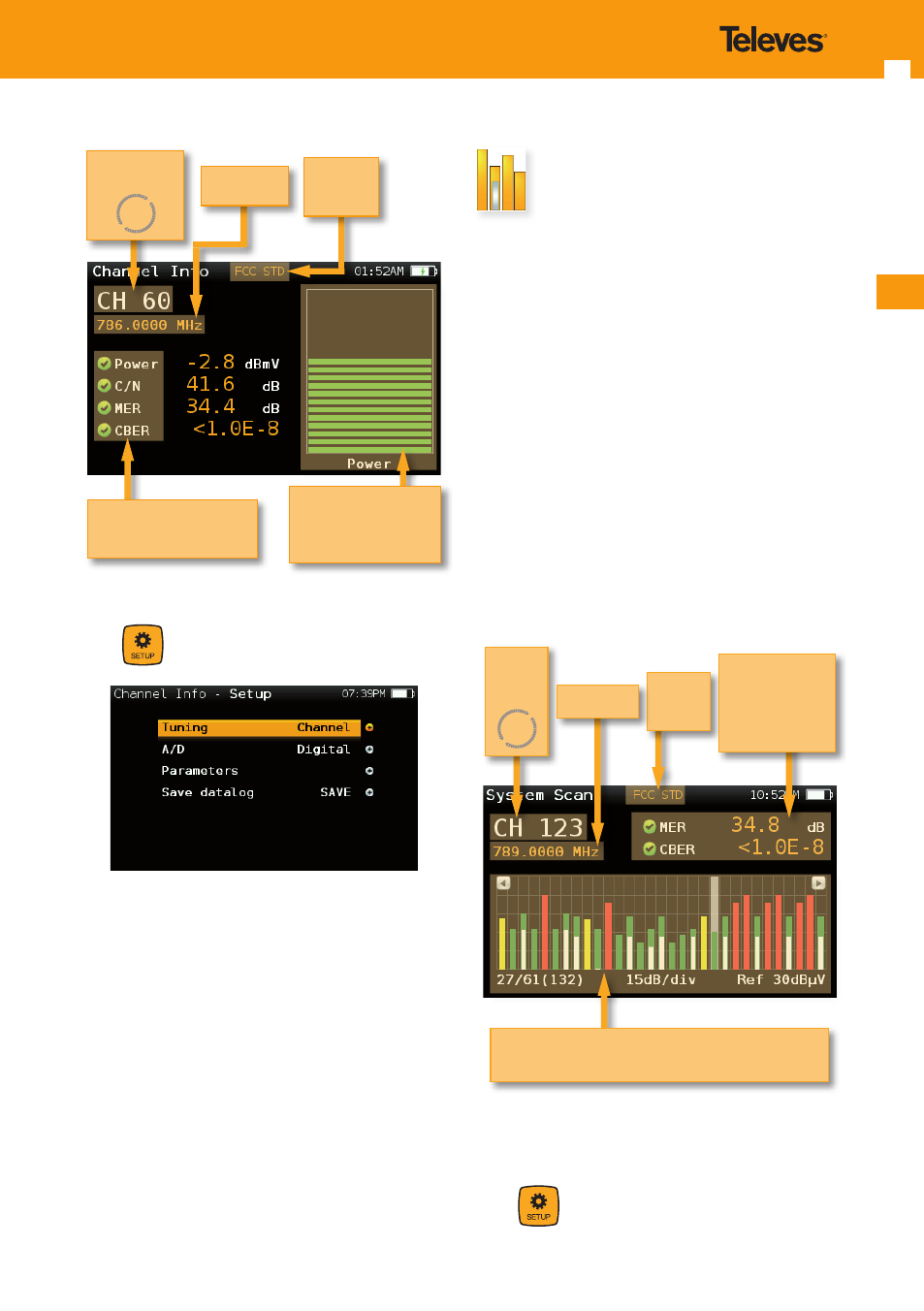

3.1. Main window
Below is a capture of a System Scan window with a
brief explanation of its features:
Bar graph representing all the found channels.
Color according to checkmarks
Channel
plan
Measurements
of the selected
channel
with pass/fail
indicators
Channel
Change
using
Frequency
3.2. Setup
Press
to change the System Scan options.
