3.4 Rigging Sticker Legend

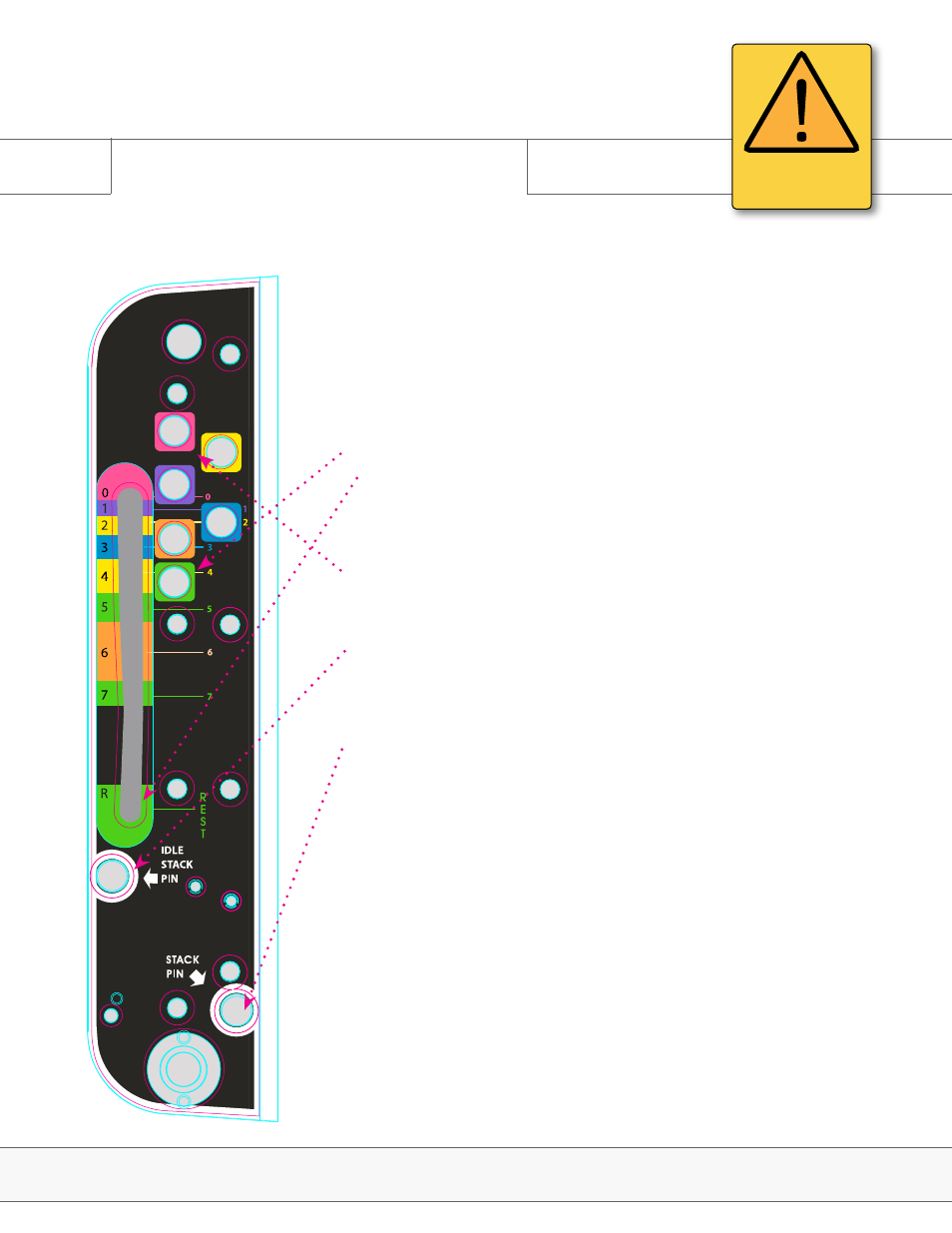

Rear Autolock Rigging Sticker Legend
* When releasing and pulling the system apart (to enclose rigging bars) let
knob slide down to ‘rest’ position (
green
), and place attached push pin to
green
slot (above) If you’re dividing into 4 stacks, perform this task on every 4th box
only.
* When needing a zero degrees angle (such as the top boxes of longer arrays)
use
magenta
slot. Position 1 uses the
purple
slot, positions 2 and 4 use the
yellow
slot, position 3 uses the
blue
slot, positions 5 and 7 use the
green
slot
and position 6 uses the
beige
slot.
* Idle Stack Pin slot is used when stacking mode is not in use. It is also used in
a hanging rigging configuration where gravity allows all the angles to shift to
the desired position.
* Stack pin slot is used when stacking the E15/E12 system, or needing a rigid
flown array. (ie when the system is arrayed in a manner that gravity cannot
sustain the desired angles). The user must ensure this pin is set on both sides
of each cabinet.
Note: E12 sticker shown
Rigging
E-Series | Rigging
ATTENTION
IMPORTANT OPERATING
INSTRUCTIONS
