9252000793 Rev C
BE1-50/51B-244 Installation
4-3
Installation
Select the desired relay settings before putting the relay into service. Changing pickup current settings
while the relay is in service may cause tripping. Perform the following procedures to install the BE1-
50/51B-244 relay.
1. Select the desired relay settings on your new BE1-50/51B-244 relay.
2. Remove the existing relay and case.
3. Insert the new relay and case.
4. Install the connection plug.
5. Install the cover and secure with the captive thumbnut.
Connections
Typical ac and dc connections are shown in Figures 4-4 and 4-5. Figure 4-6 shows a rear view of the
relay and the connections.

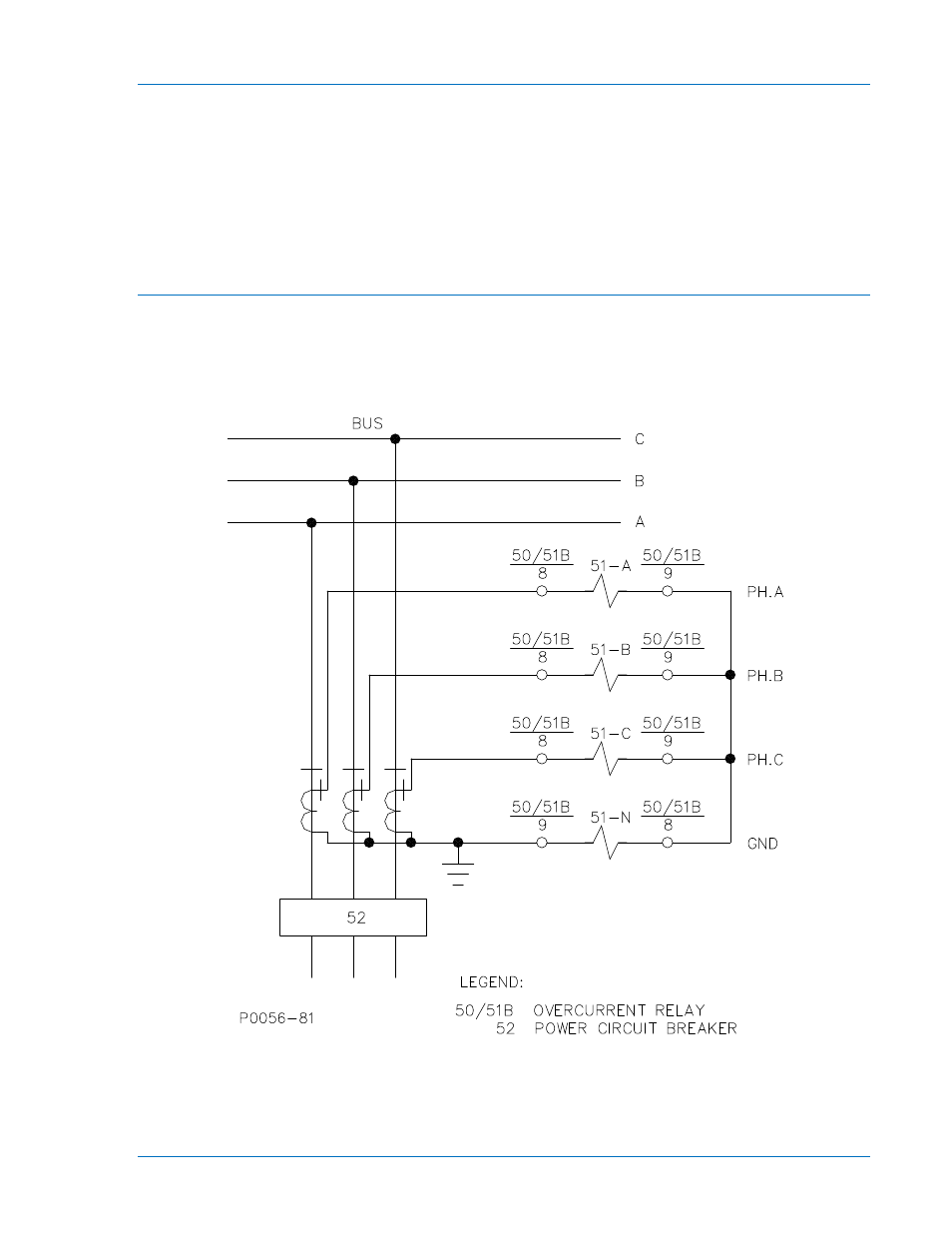

Figure 4-4. Typical AC Connections
