9252000899 Rev B BE1-50/51B-237/-238 Characteristic Curves A-3
Figures A-2 through A-15 illustrate the BE1-50/51B-237 and BE1-50/51B-238 time overcurrent
characteristic curves.
Characteristic Curves

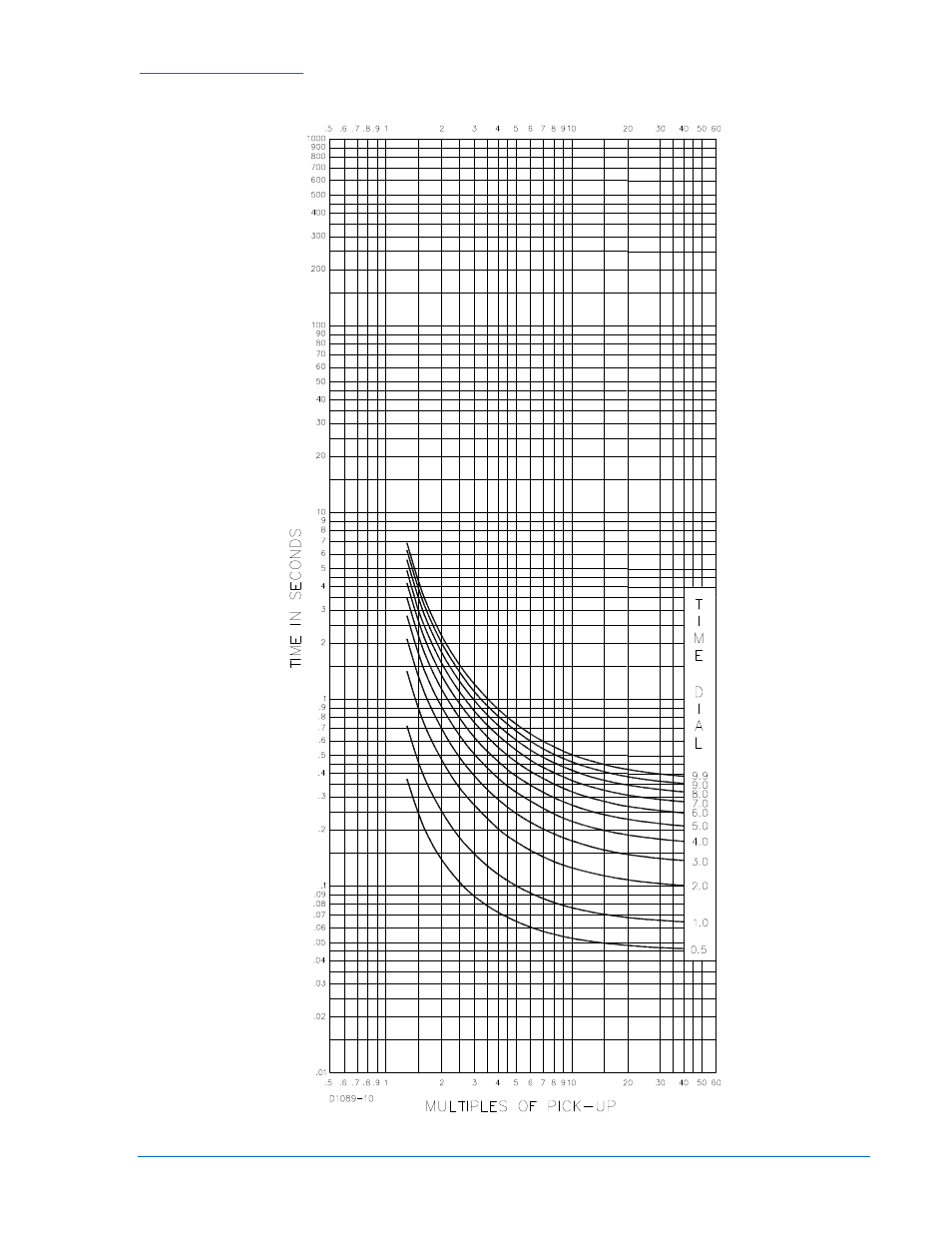

Figure A-2. Short Inverse (S) Time Characteristic Curve (SW3-3 Off, Similar to ABB CO-2)
