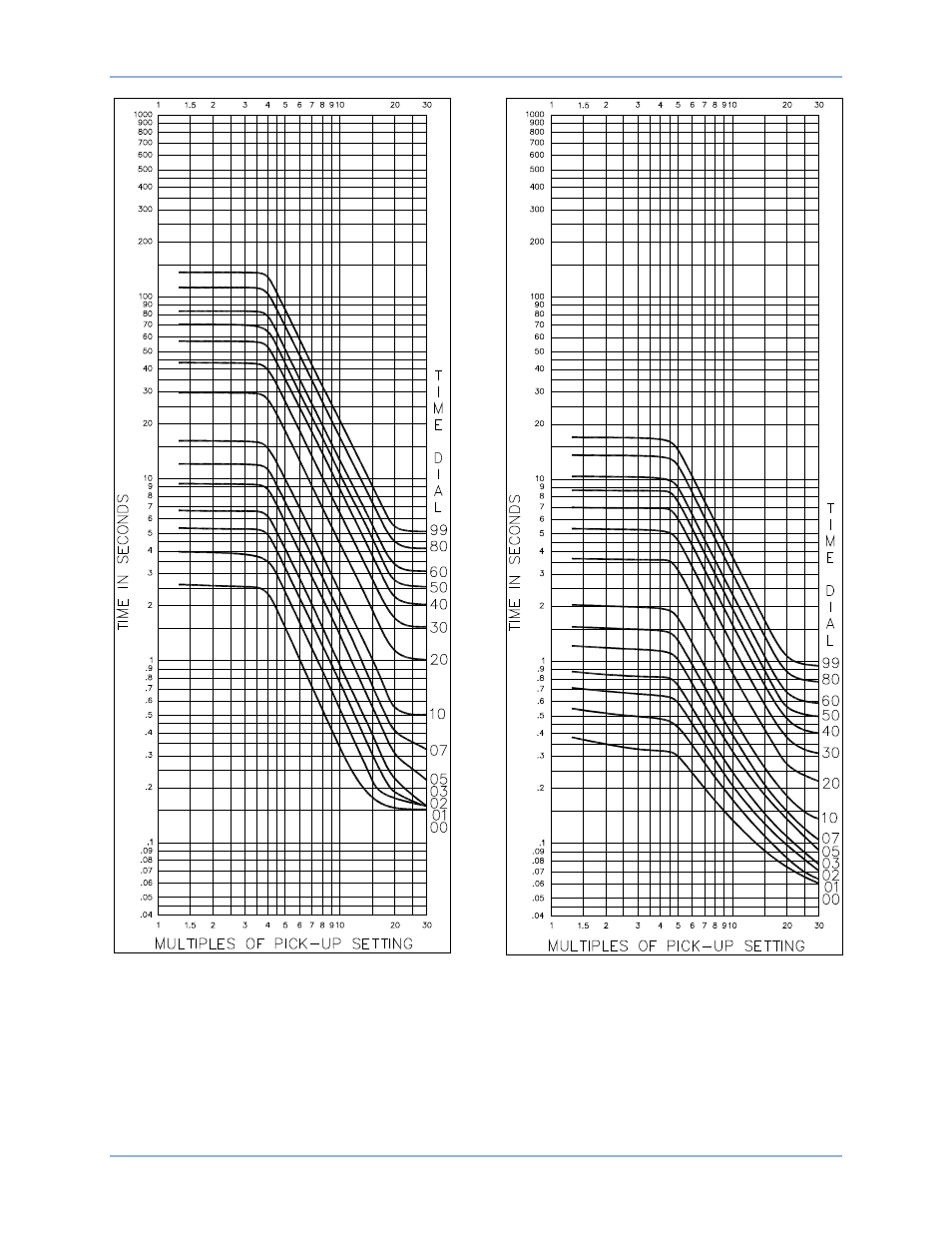

Figure 105. Timing Type C7, I
2
t Limit #7 with
Integrated Algorithm and Extended Timing
Figure 106. Timing Type C8, I
2
t Limit #8
with Integrated Algorithm
P
0
0
4
9
-6
8
P
0
0
4
9
-6
9
Time Overcurrent Characteristic Curves
BE1-51/27C
