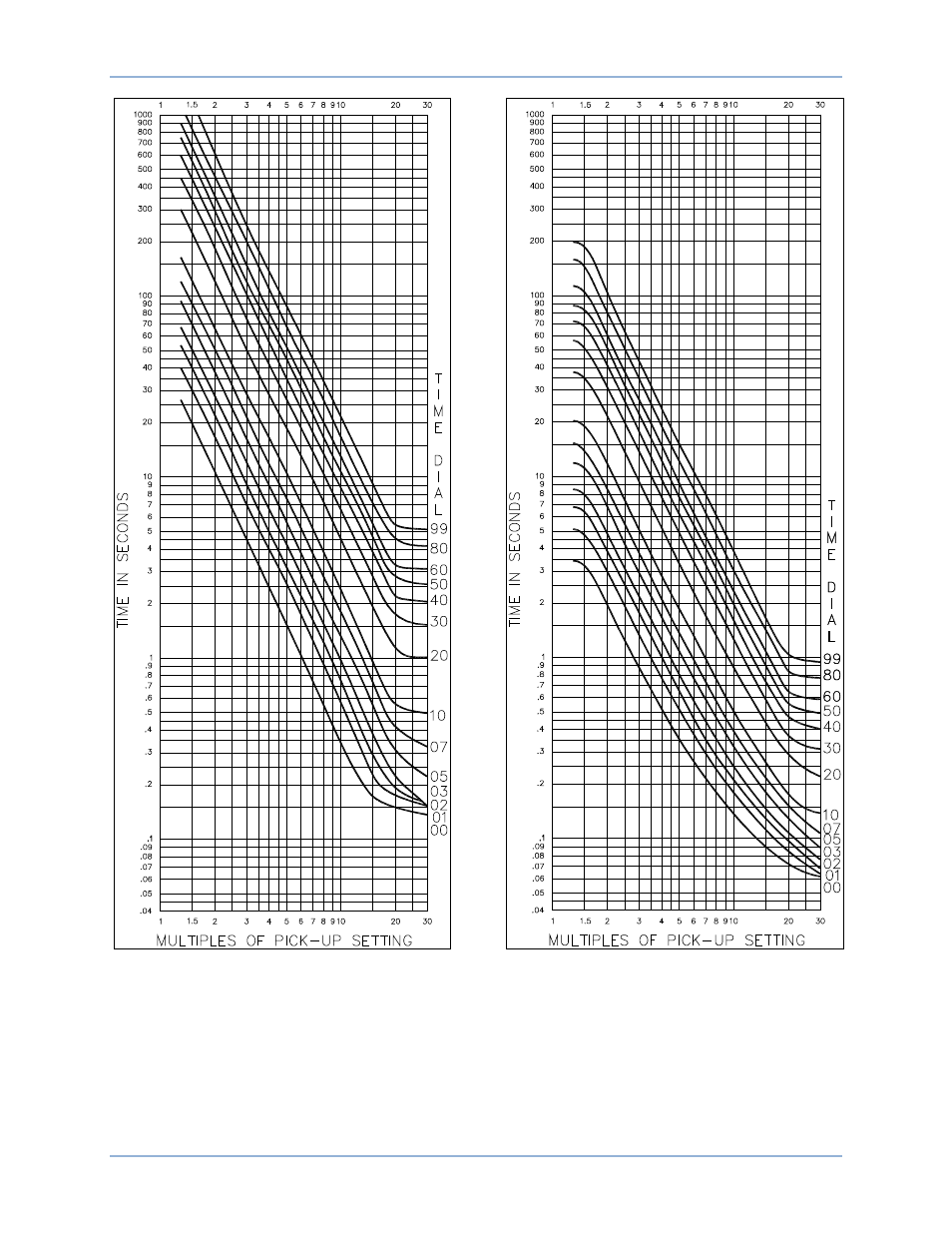

Figure 91. Timing Type B8, I 2 t with Integrated
Algorithm and Extended Timing
Figure 92. Timing Type C1, I 2 t Limit #1
with Integrated Algorithm
P
0
0
4
9
-5
4
P
0
0
4
9
-5
5
BE1-51/27C Time Overcurrent Characteristic Curves
