1009727-A 7.
ASSEMBLY
================================================================================================
3
4
25
10
19
25
45
3
10
19

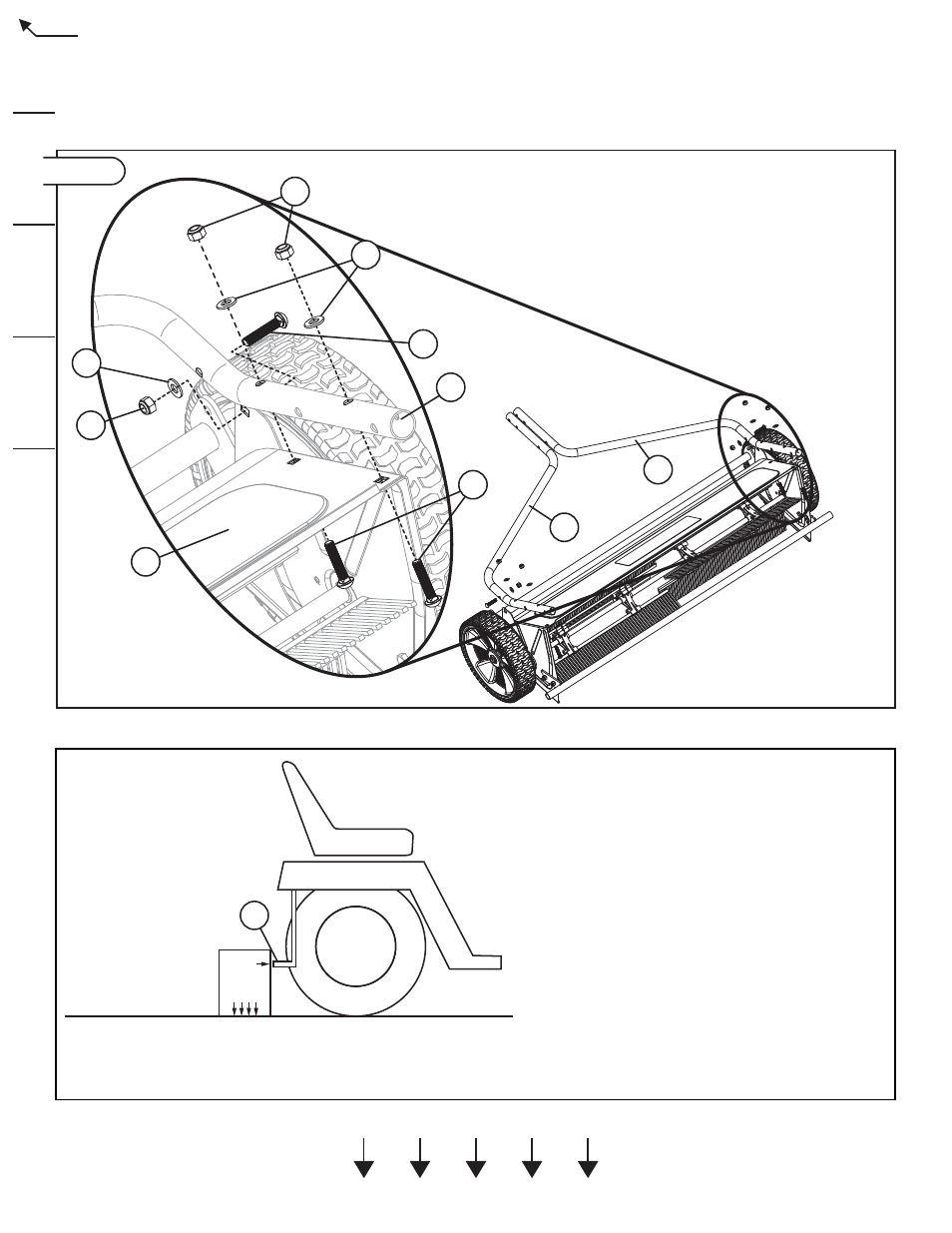

Figure 01
Assemble the Right Tow Bar (3) and Left Tow Tube (4)
to the Brush Housing (45) using the hardware in Panel
01 as shown in Figure 01.
Do not tighten fasteners at this time.
This manual will be referencing panels of the hardware skin pack included with your sweeper. The hardware in Panel
01 is to be used with Figure 01; Panel 02 with Figure 02; etc.
A
Hitch Plate Height
Measurement
Park towing vehicle on a level, hard surface and set
parking brake.
Measure from the ground to the bottom of the rear
hitch plate (A).
Note: The scale at the side of this sheet can be used
as a guide for hitch plate heights up to 11 inches.
Record this measurement here: _____________
Round this measurement to the closest
whole number: _____________
For example:
If the hitch plate measurement is 7-1/4” round to 7”.
If the hitch plate measurement is 8-3/4” round to 9”.
If the hitch plate measurement is a half measurement,
round up (example: 7-1/2” rounds to 8”).
11” (Top of Page)
10”
9”
8”
7”
Place this edge on ground.
